Home >> Ford >> 2012 >> Fiesta L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> C604 Window Control Switch, Passenger Side

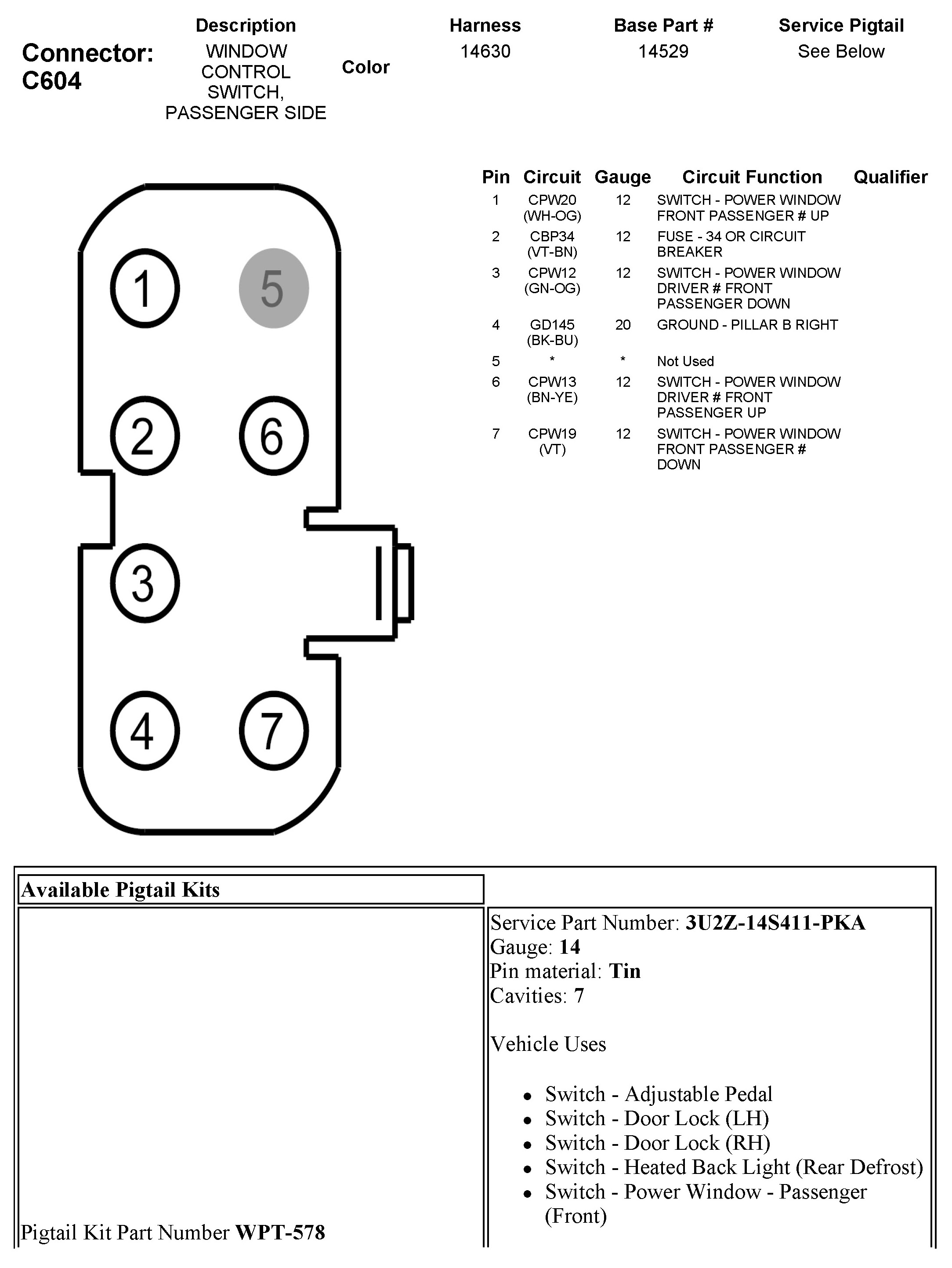

C604 Window Control Switch, Passenger Side
