LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2012
>>
Fiesta L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>

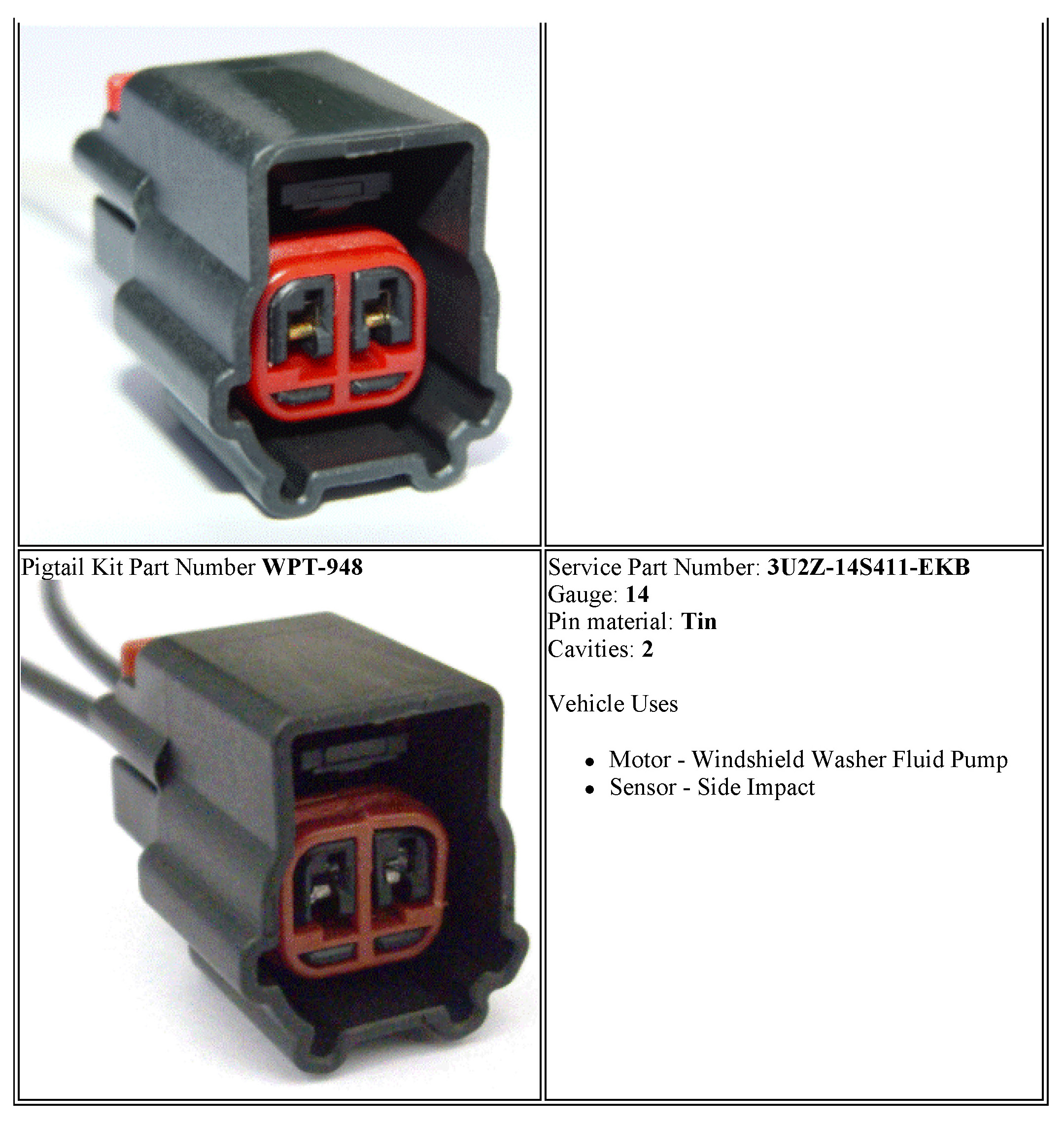

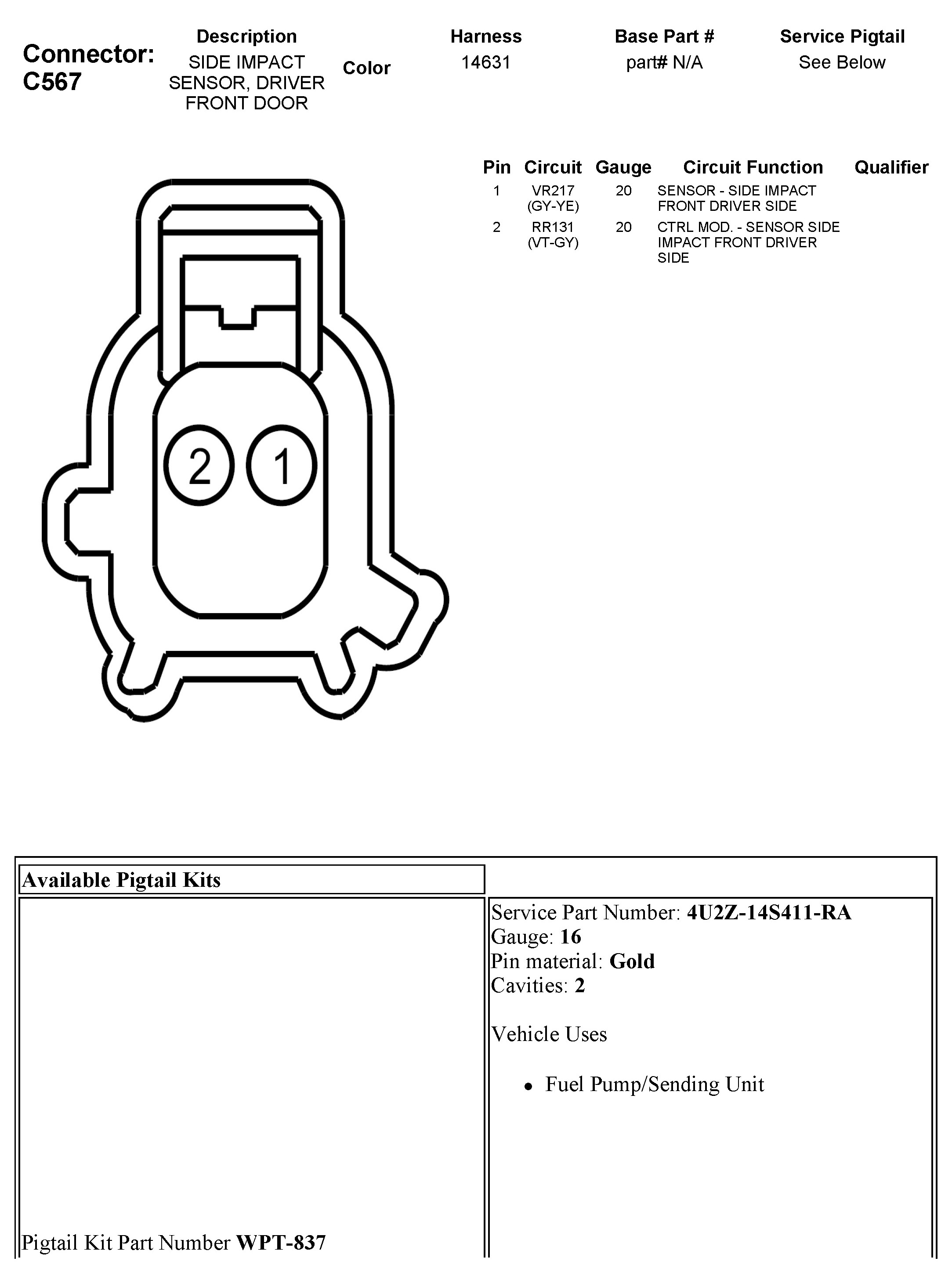

C567 Side Impact Sensor, Driver Front Door
C567 Side Impact Sensor, Driver Front Door
