Home >> Ford >> 2012 >> F 150 2WD V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> C3265C Dual Climate Controlled Seat Module (DCSM)

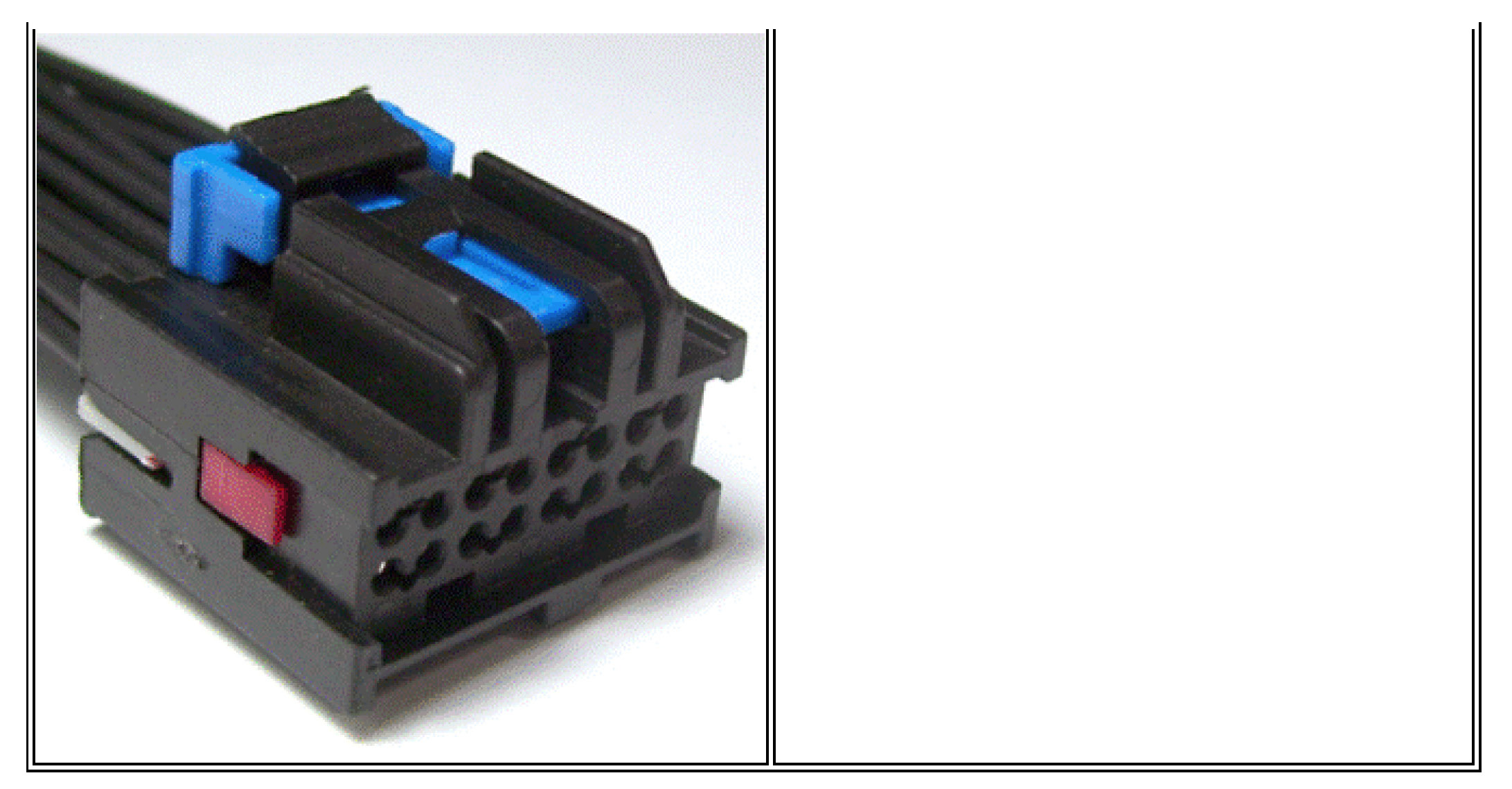

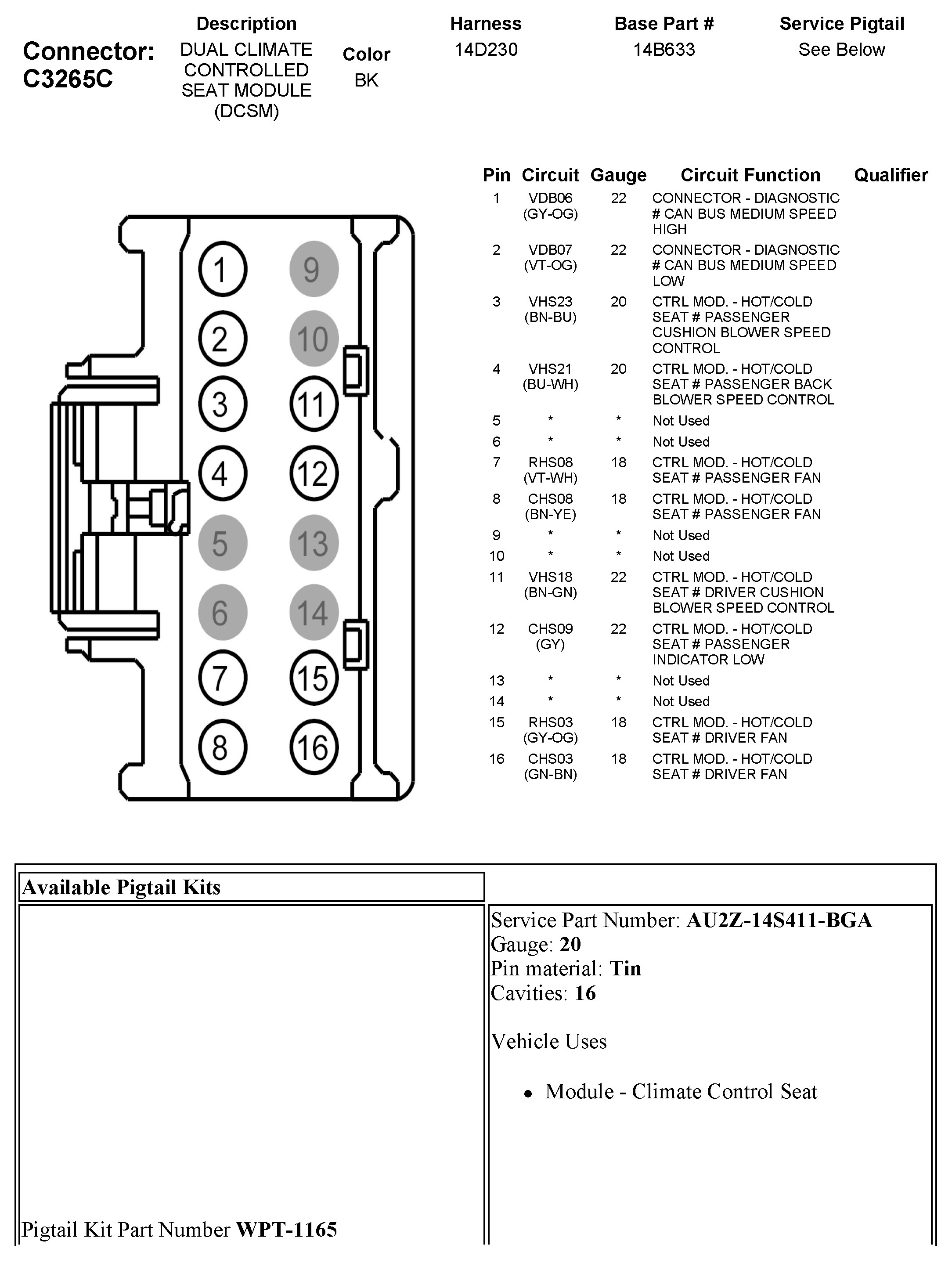

C3265C Dual Climate Controlled Seat Module (DCSM)
