Home
>>
Ford
>>
2012
>>
F 150 2WD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>

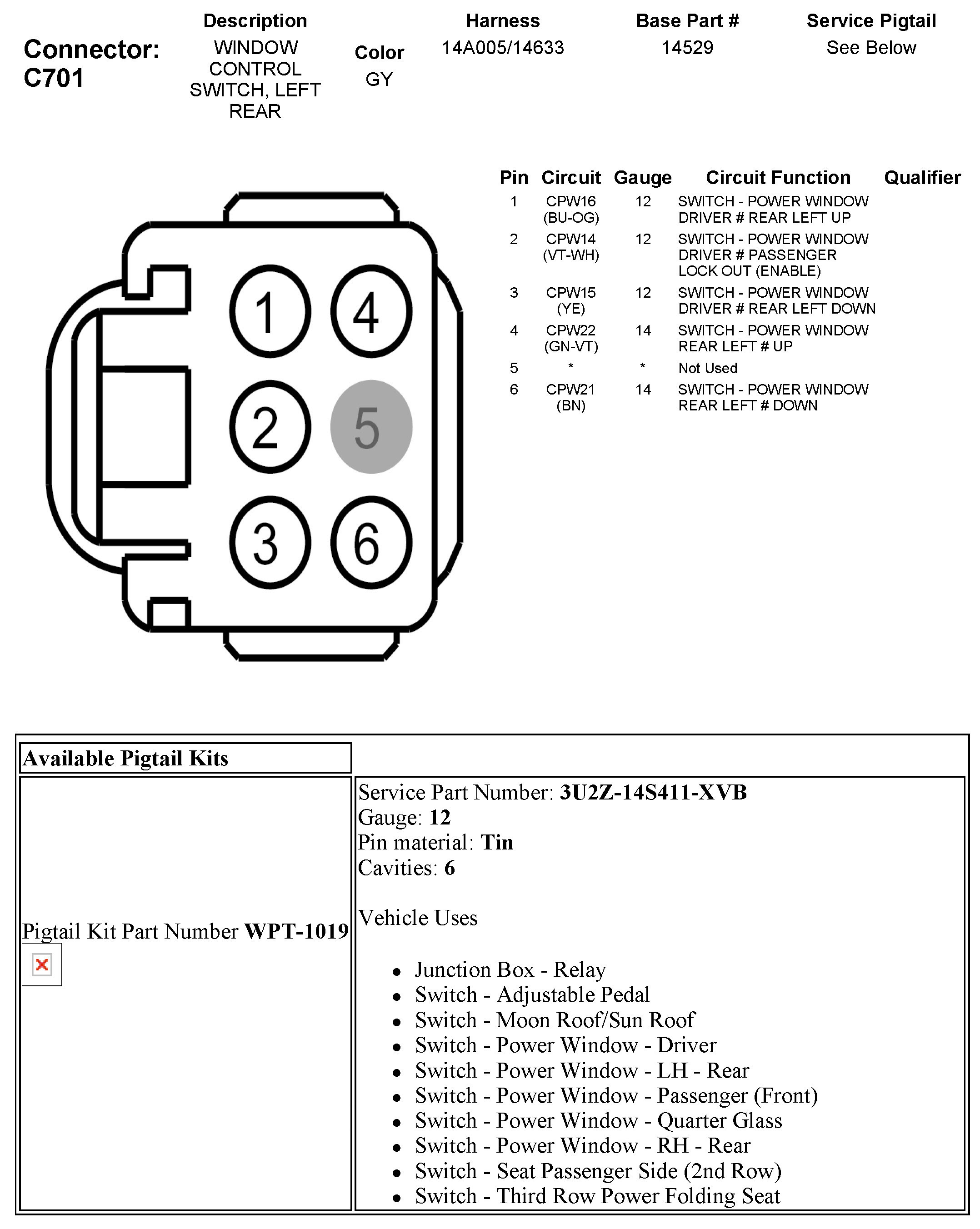

C701 Window Control Switch, Left Rear
C701 Window Control Switch, Left Rear
