LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2012
>>
F 150 2WD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>

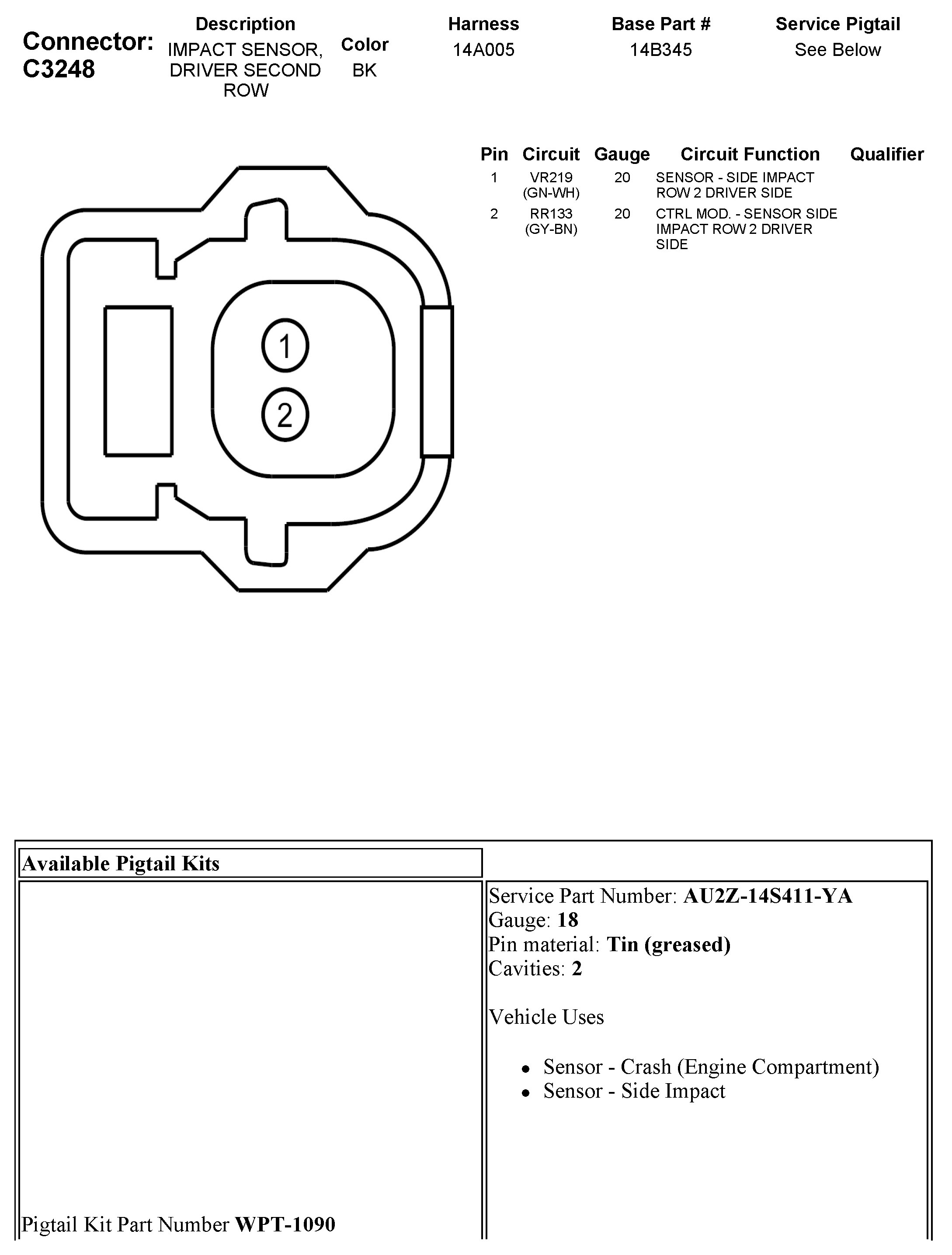

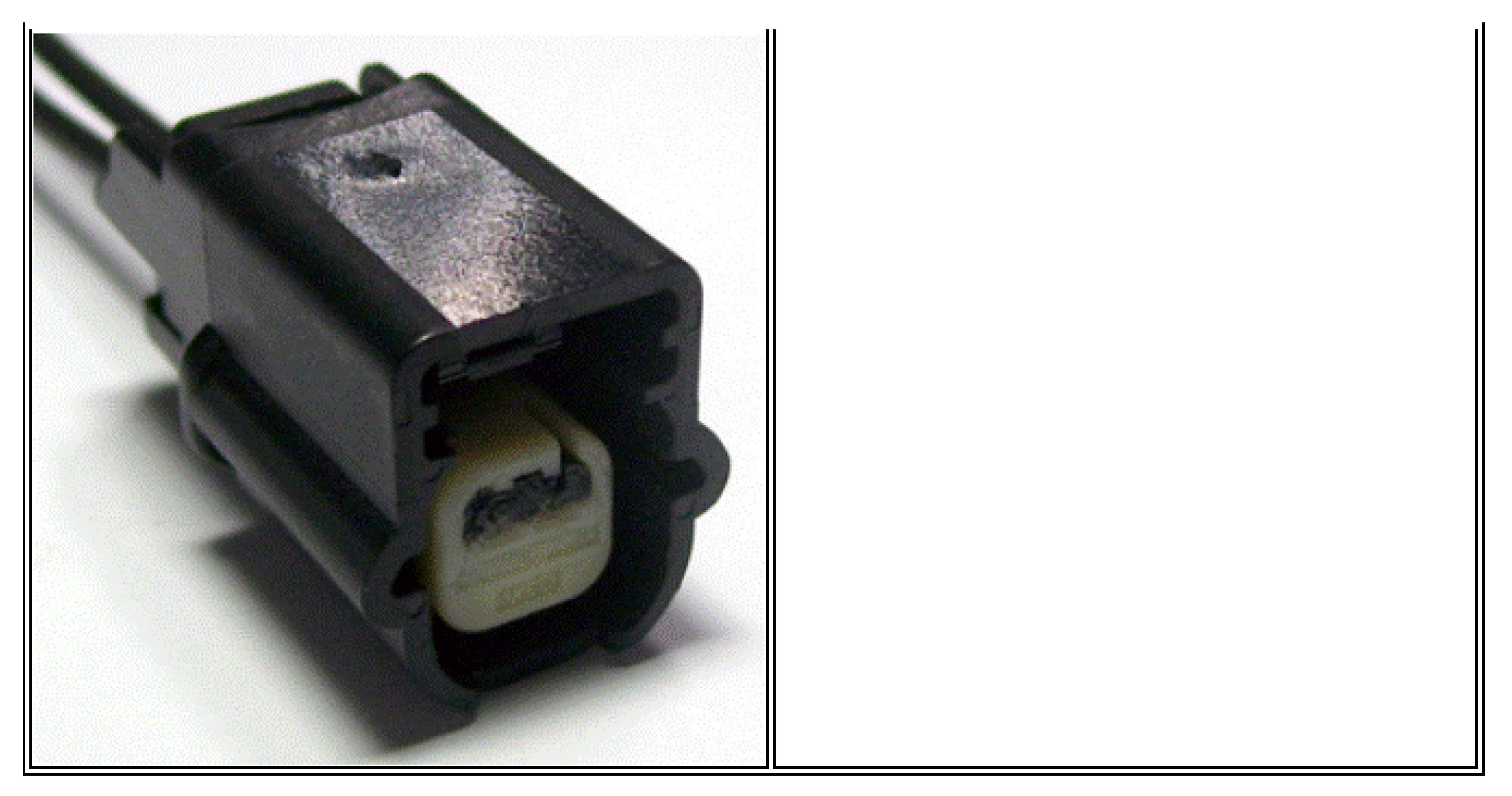

C3248 Impact Sensor, Driver Second Row
C3248 Impact Sensor, Driver Second Row
