Home >> Ford >> 2012 >> F 150 2WD V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accessories and Optional Equipment >> Communications Control Module >> C2383 Accessory Protocol Interface Module (APIM)

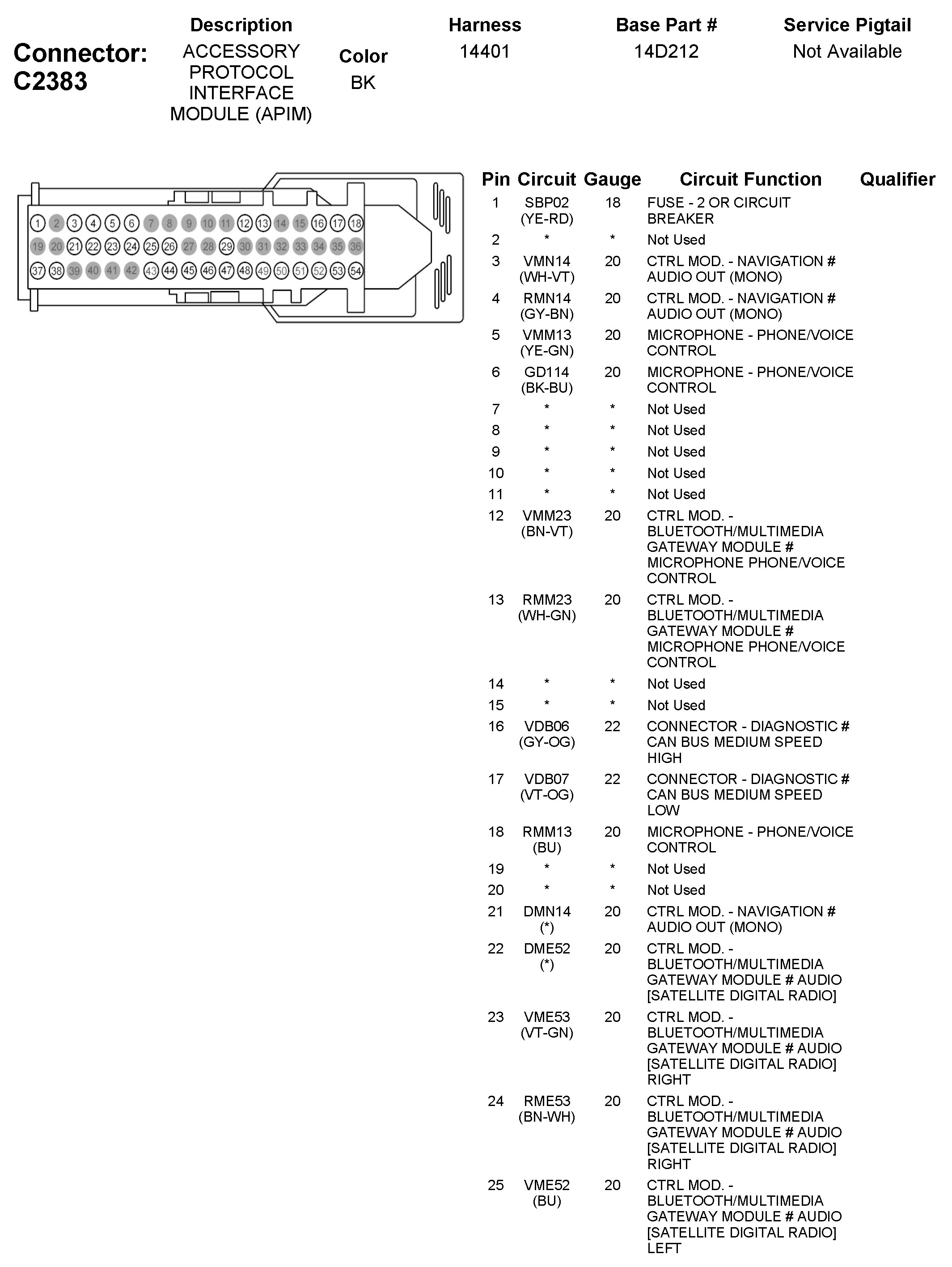

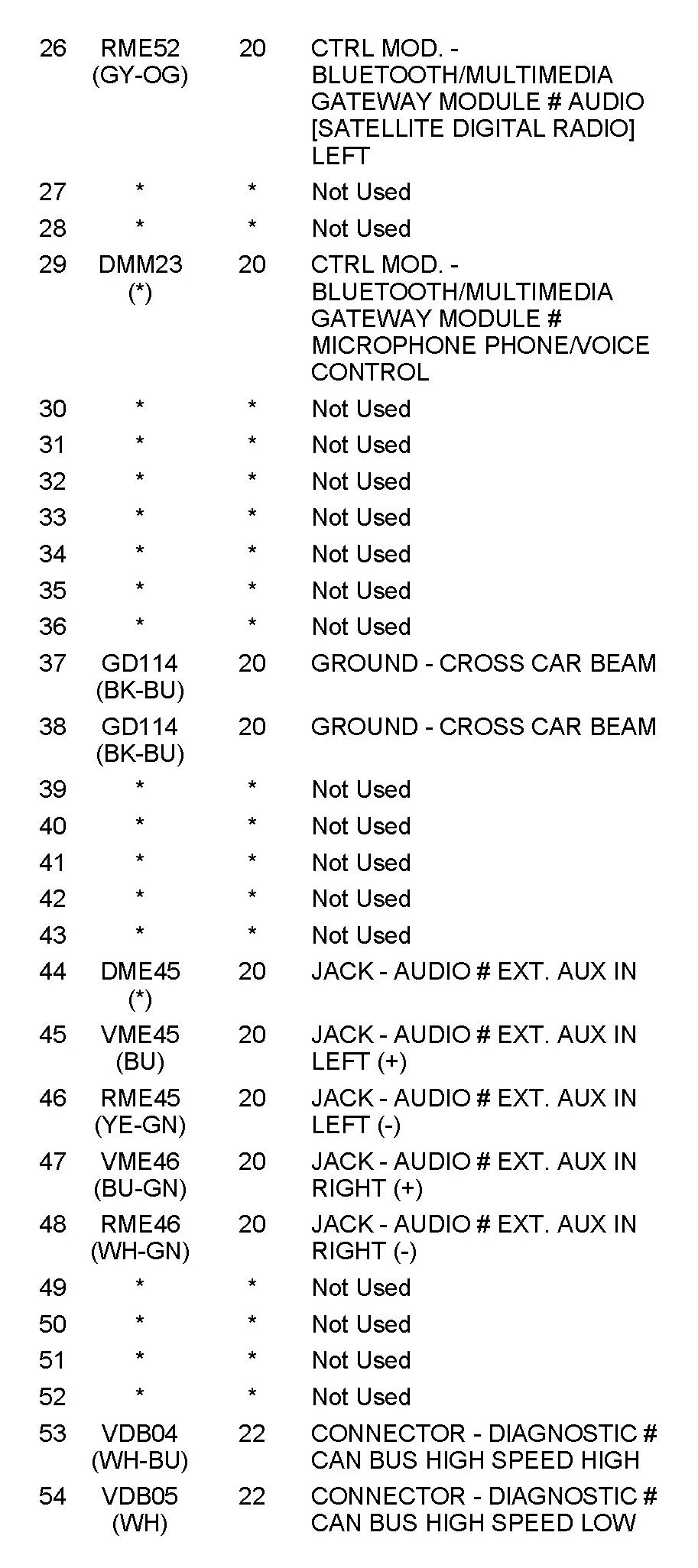

C2383 Accessory Protocol Interface Module (APIM)
