Power Trunk / Liftgate Control Module
>>

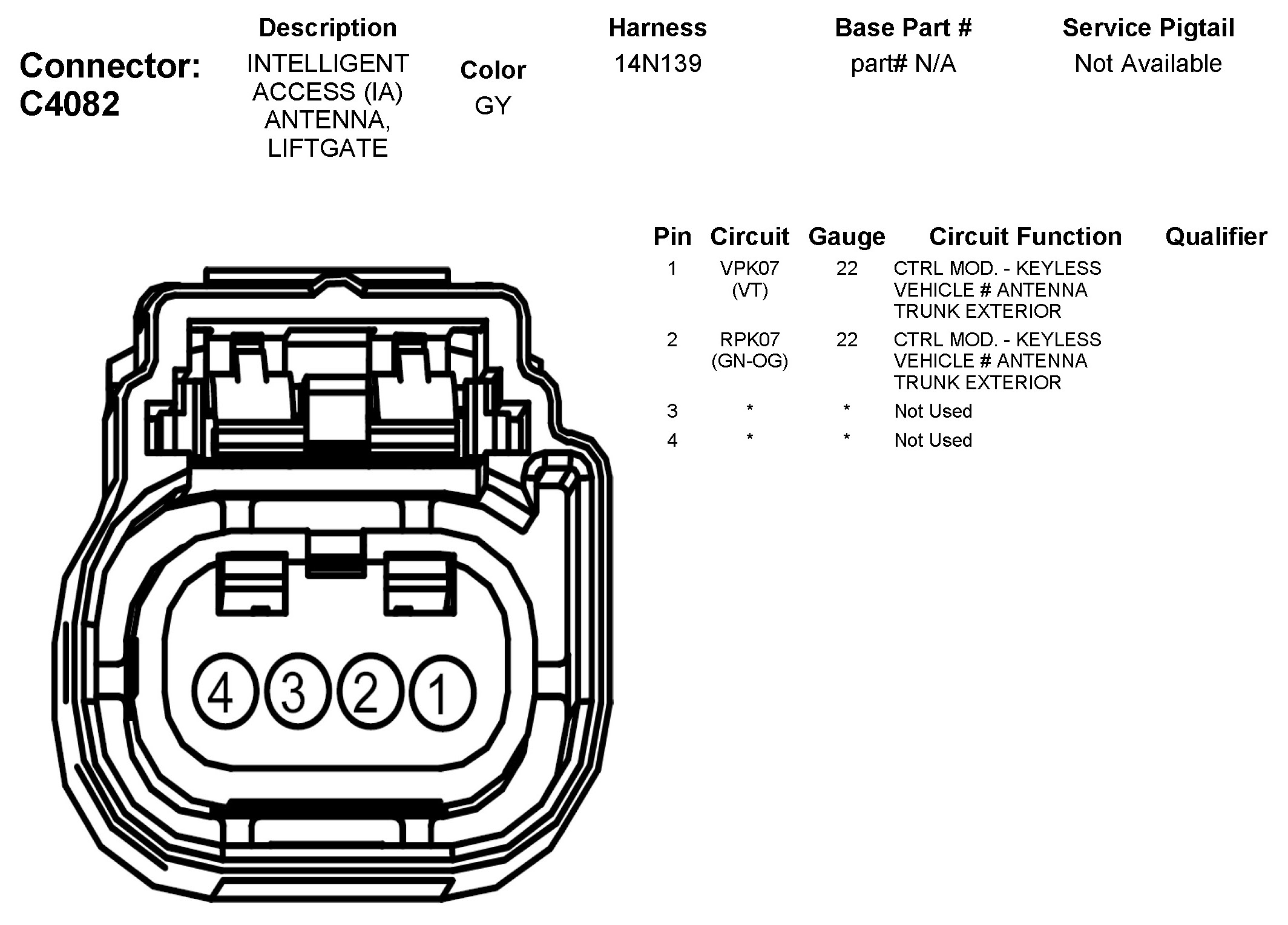

C4082 Intelligent Access (IA) Antenna, Liftgate
C4082 Intelligent Access (IA) Antenna, Liftgate
