Home >> Ford >> 2012 >> Explorer FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Control Module, A/T

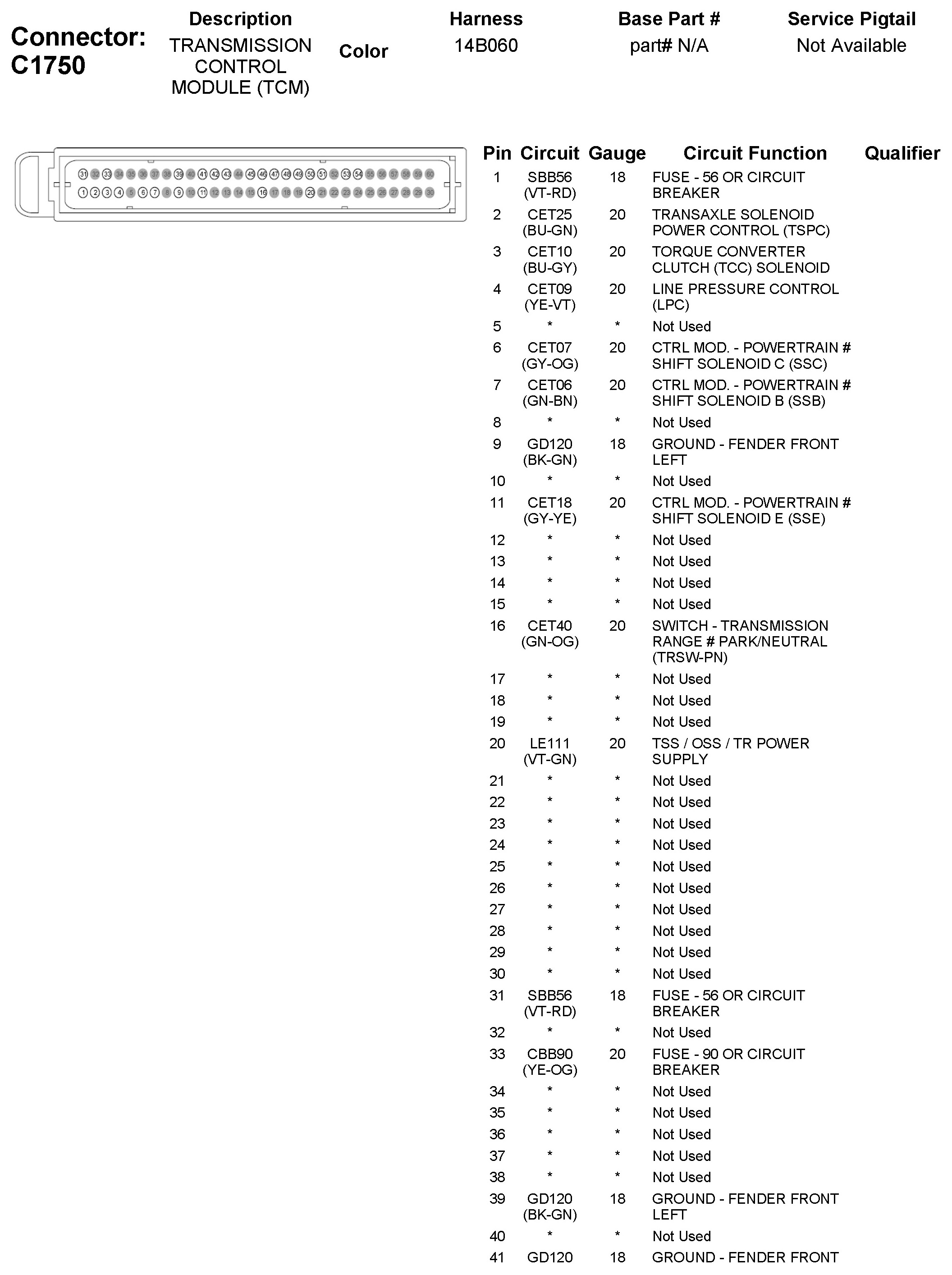

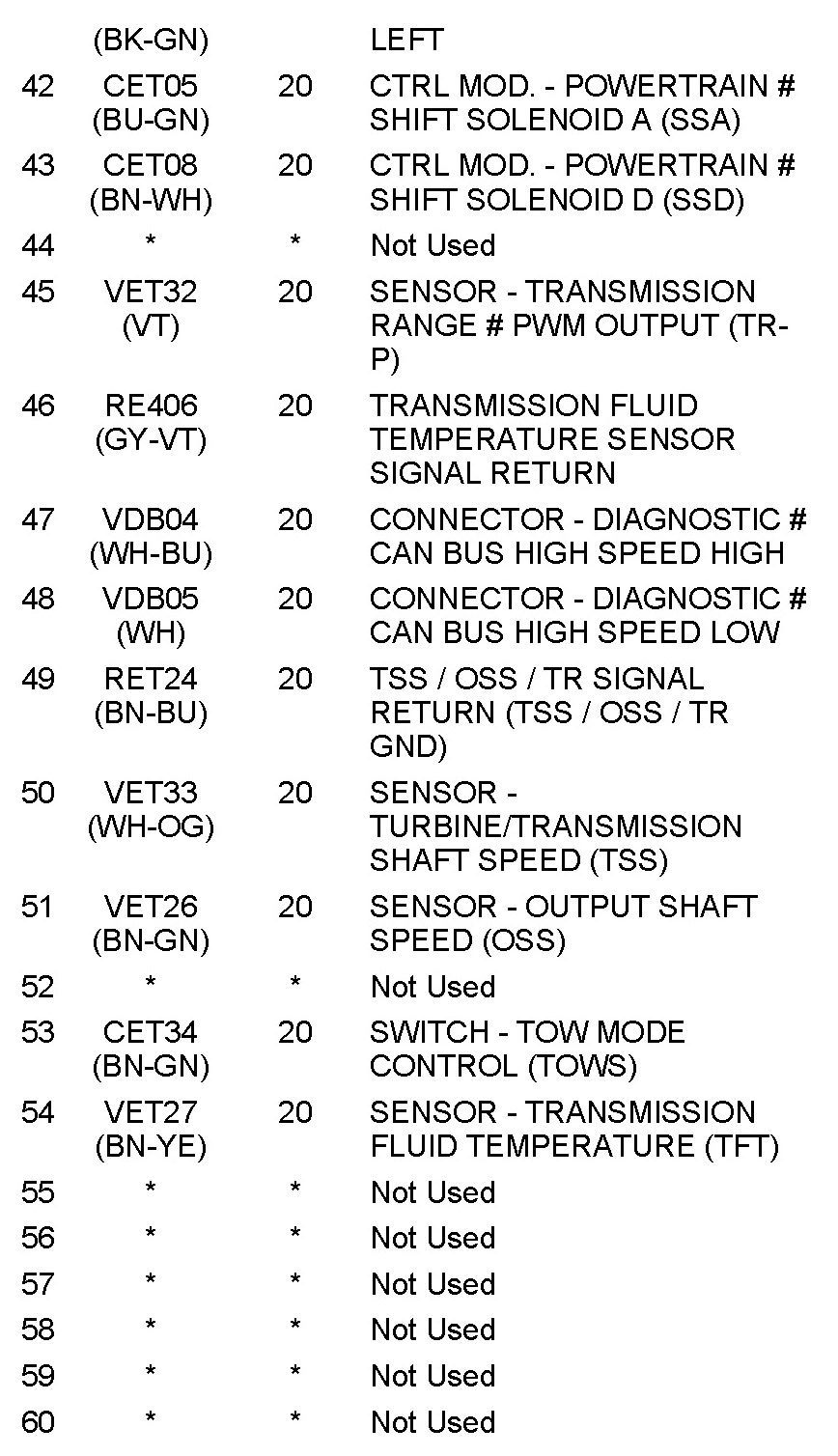

Control Module, A/T
