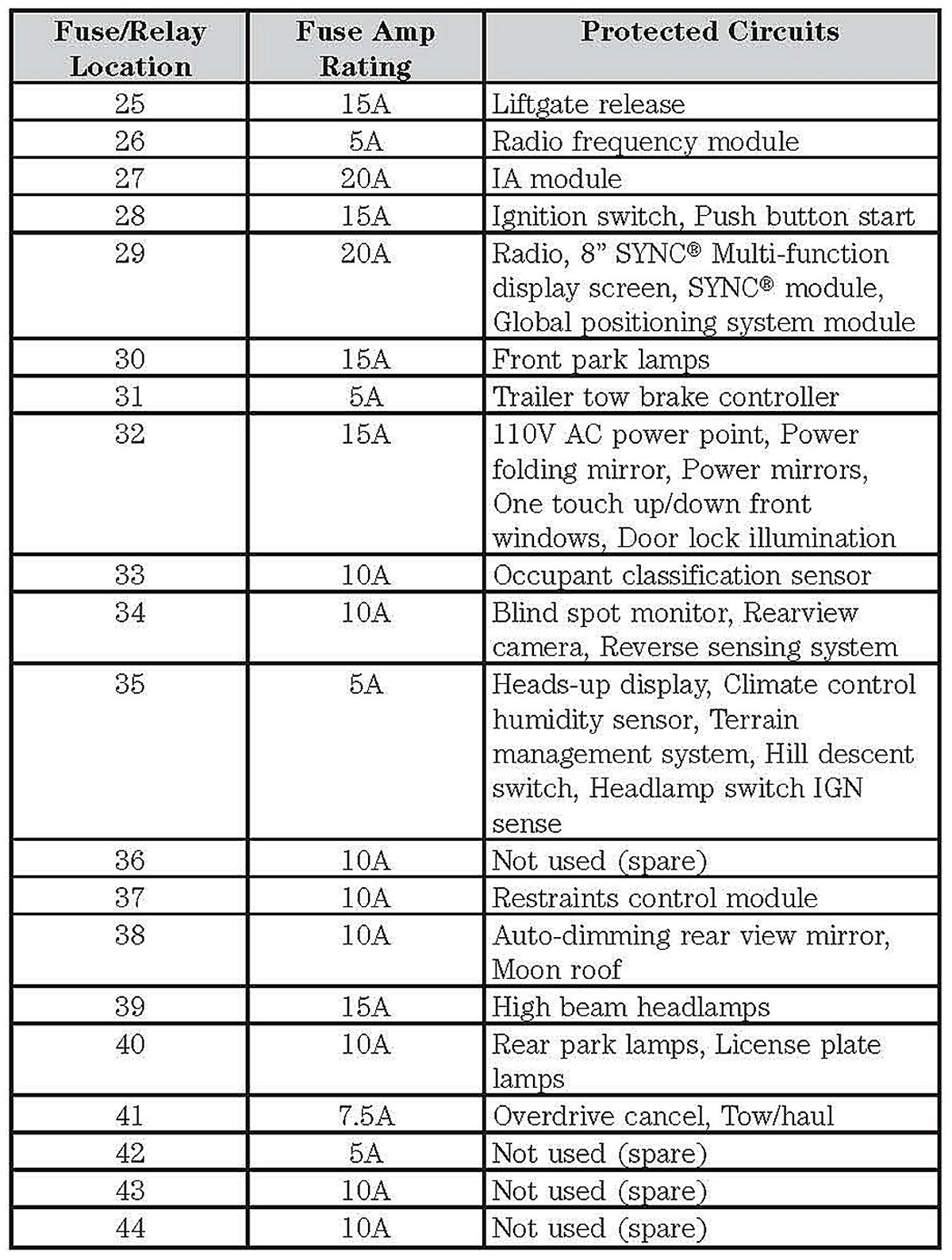

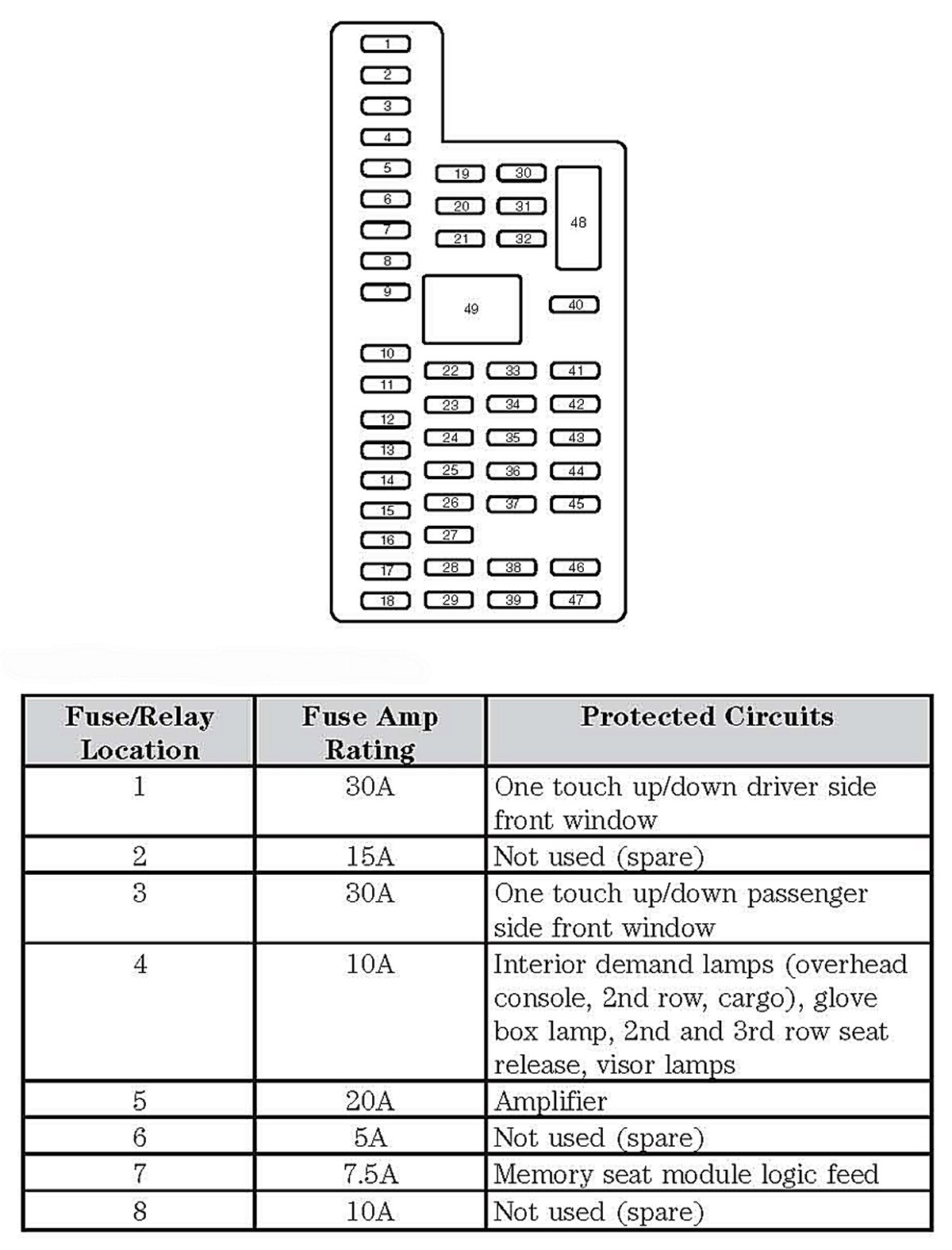

Passenger Compartment Fuse Panel




Passenger Compartment Fuse Panel



















The fuse panel is located below and to the left of the steering wheel by the brake pedal.
