Home
>>
Ford
>>
2012
>>
Explorer AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Position Sensor
>>

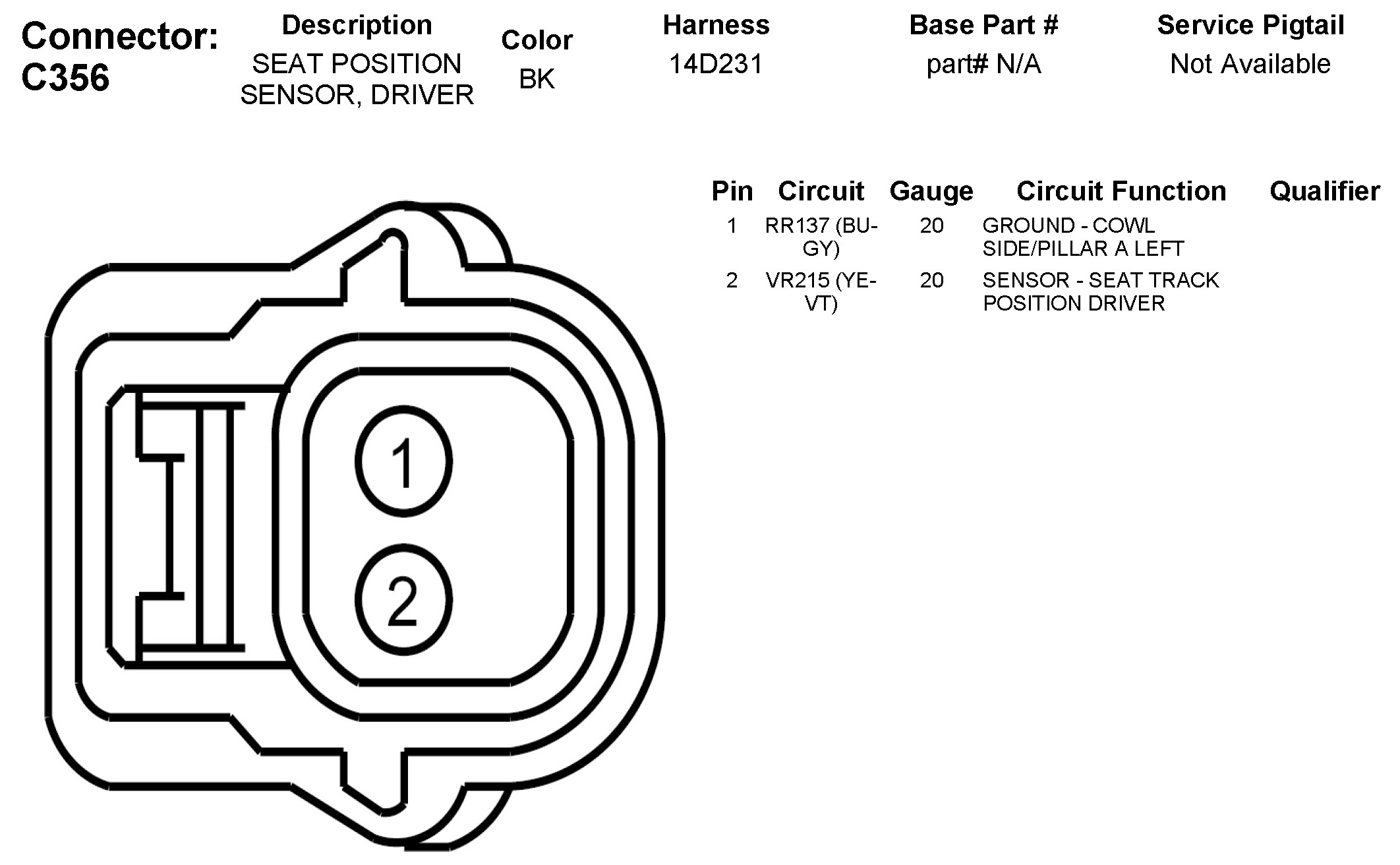

C356 Seat Position Sensor, Driver
C356 Seat Position Sensor, Driver
