Home
>>
Ford
>>
2012
>>
Explorer AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>

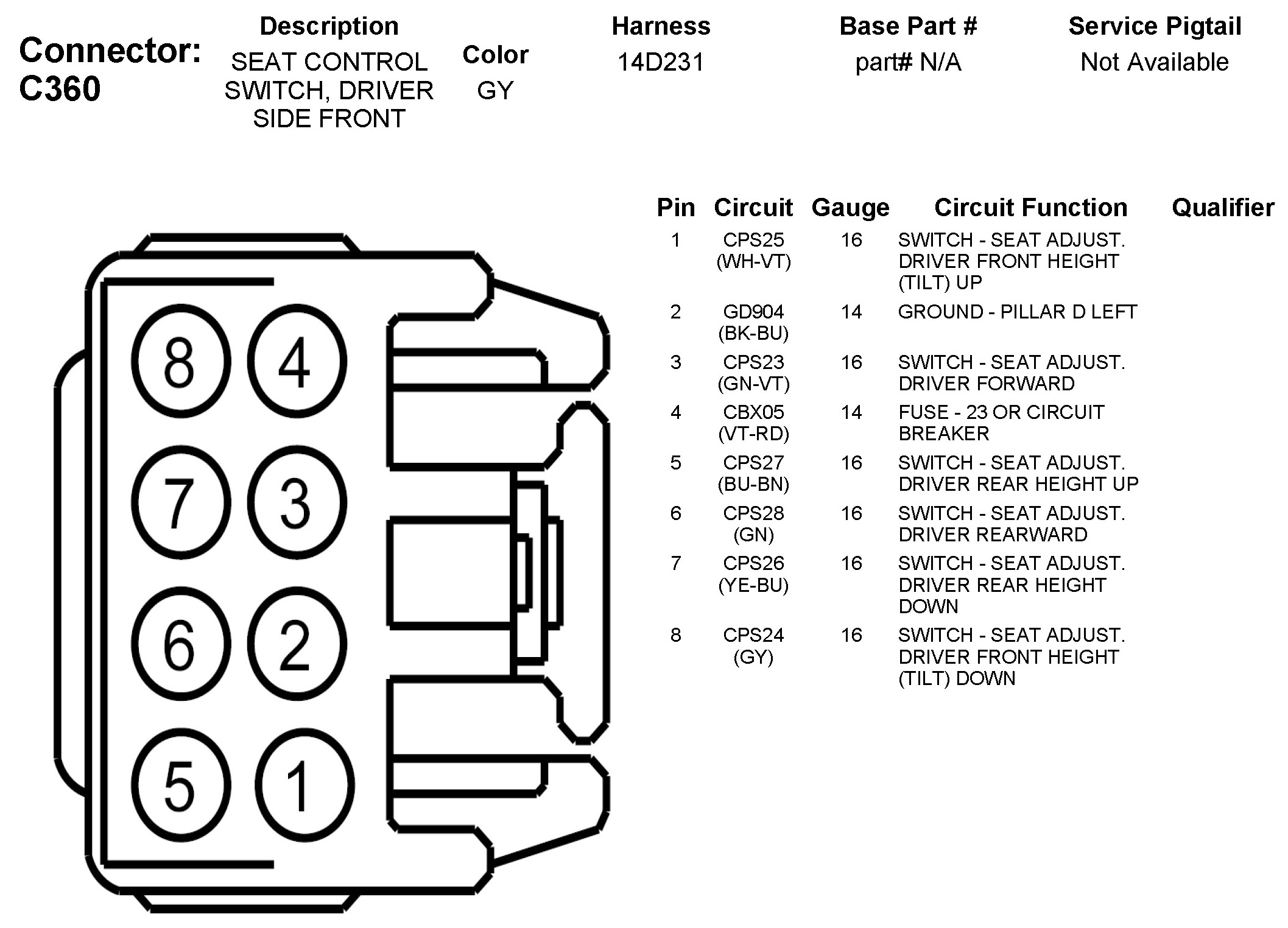

C360 Seat Control Switch, Driver Side Front
C360 Seat Control Switch, Driver Side Front
