Home
>>
Ford
>>
2012
>>
Explorer AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
>>

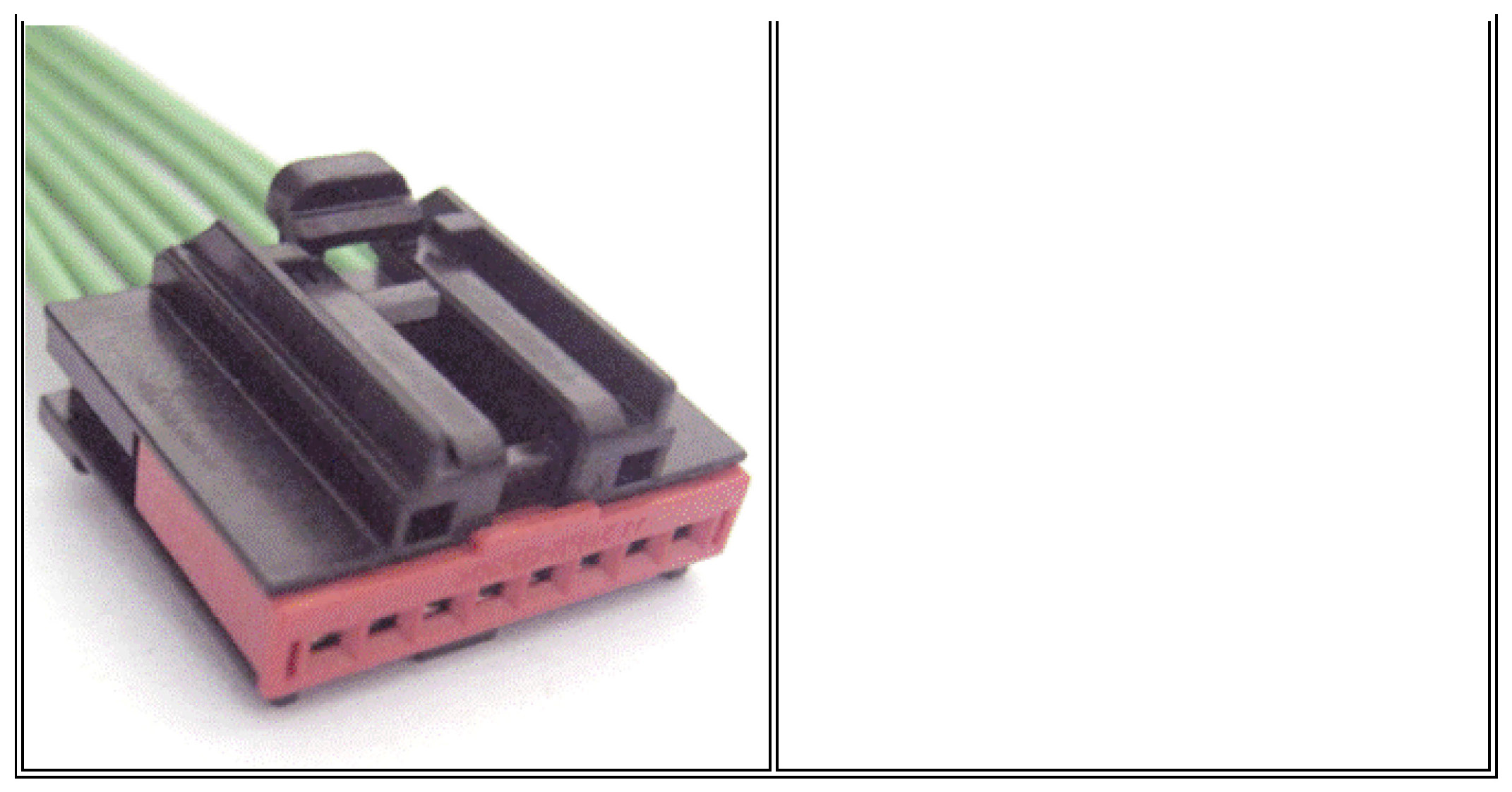

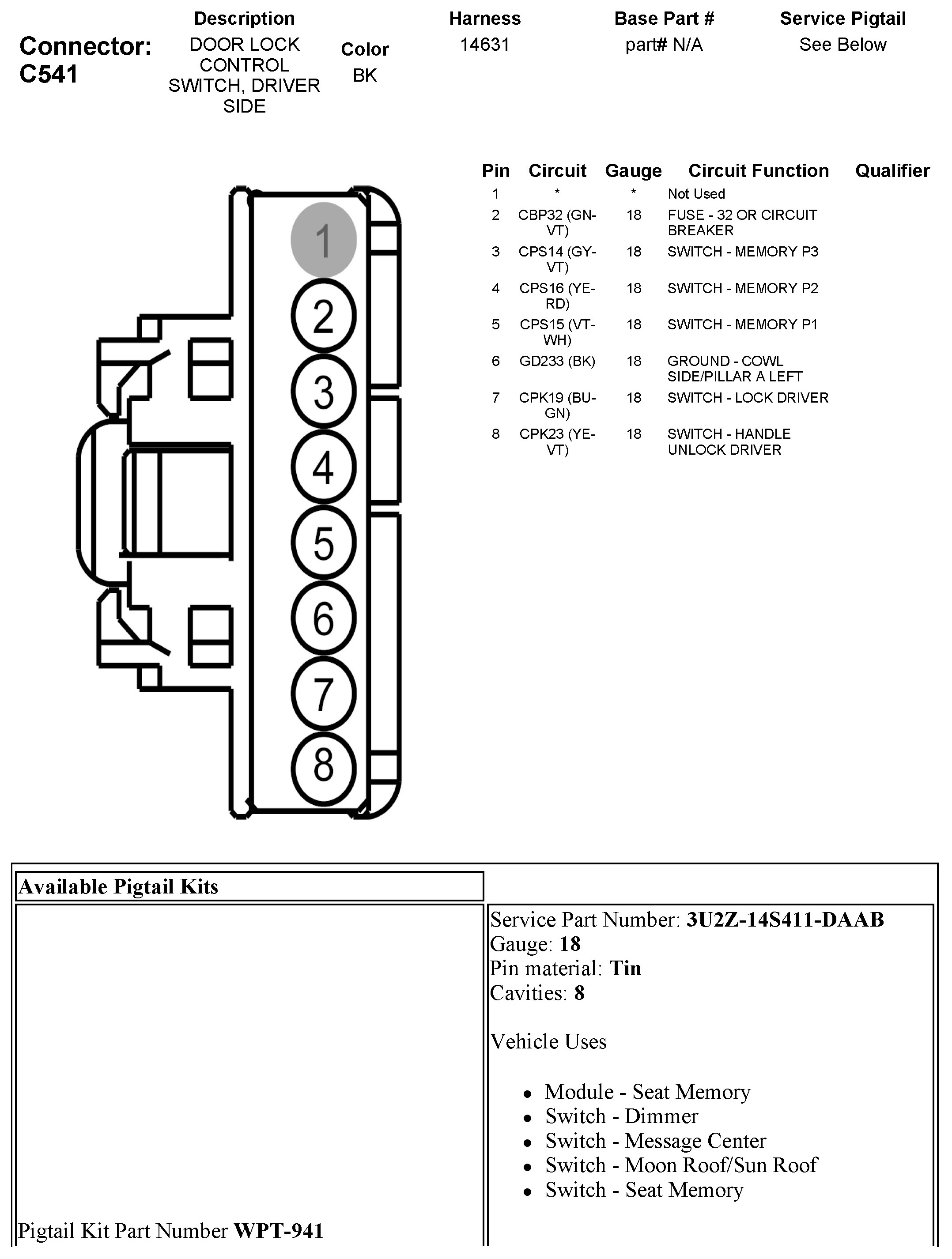

C541 Door Lock Control Switch, Driver Side
C541 Door Lock Control Switch, Driver Side
