Home >> Ford >> 2012 >> Explorer AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cabin Temperature Sensor / Switch >> C3507 In-Vehicle Temperature Sensor, Rear

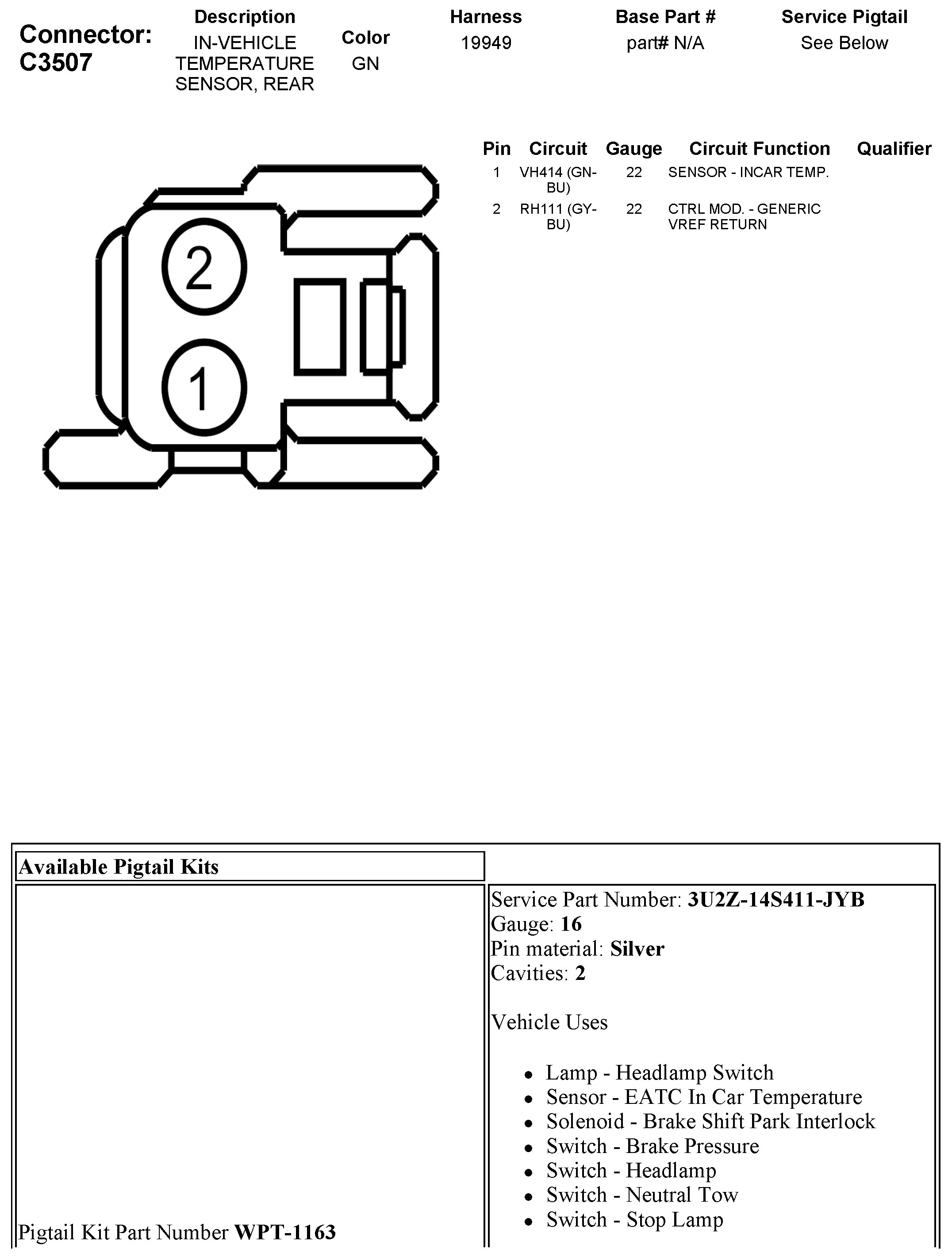

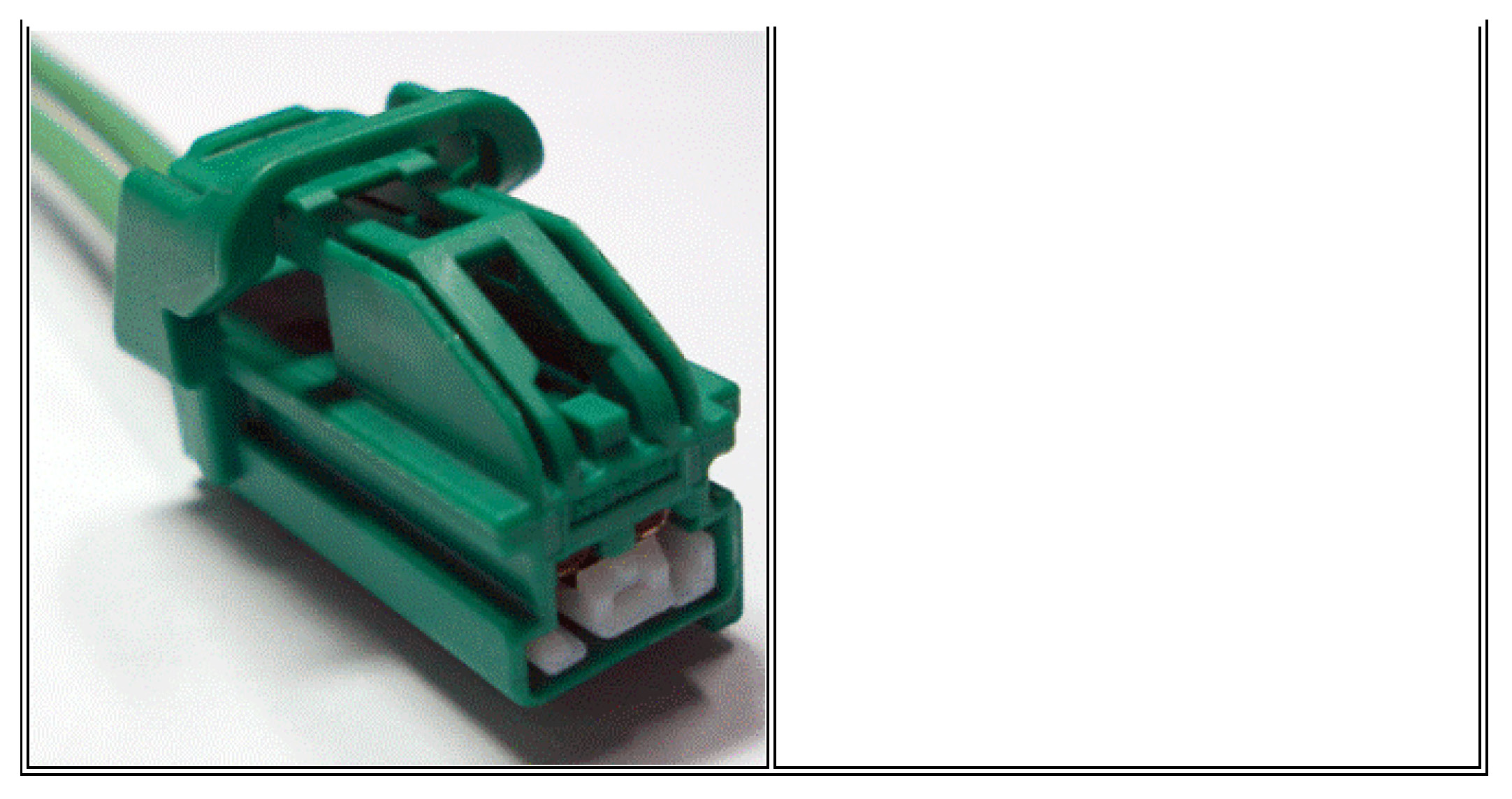

C3507 In-Vehicle Temperature Sensor, Rear
