Explorer AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
>>

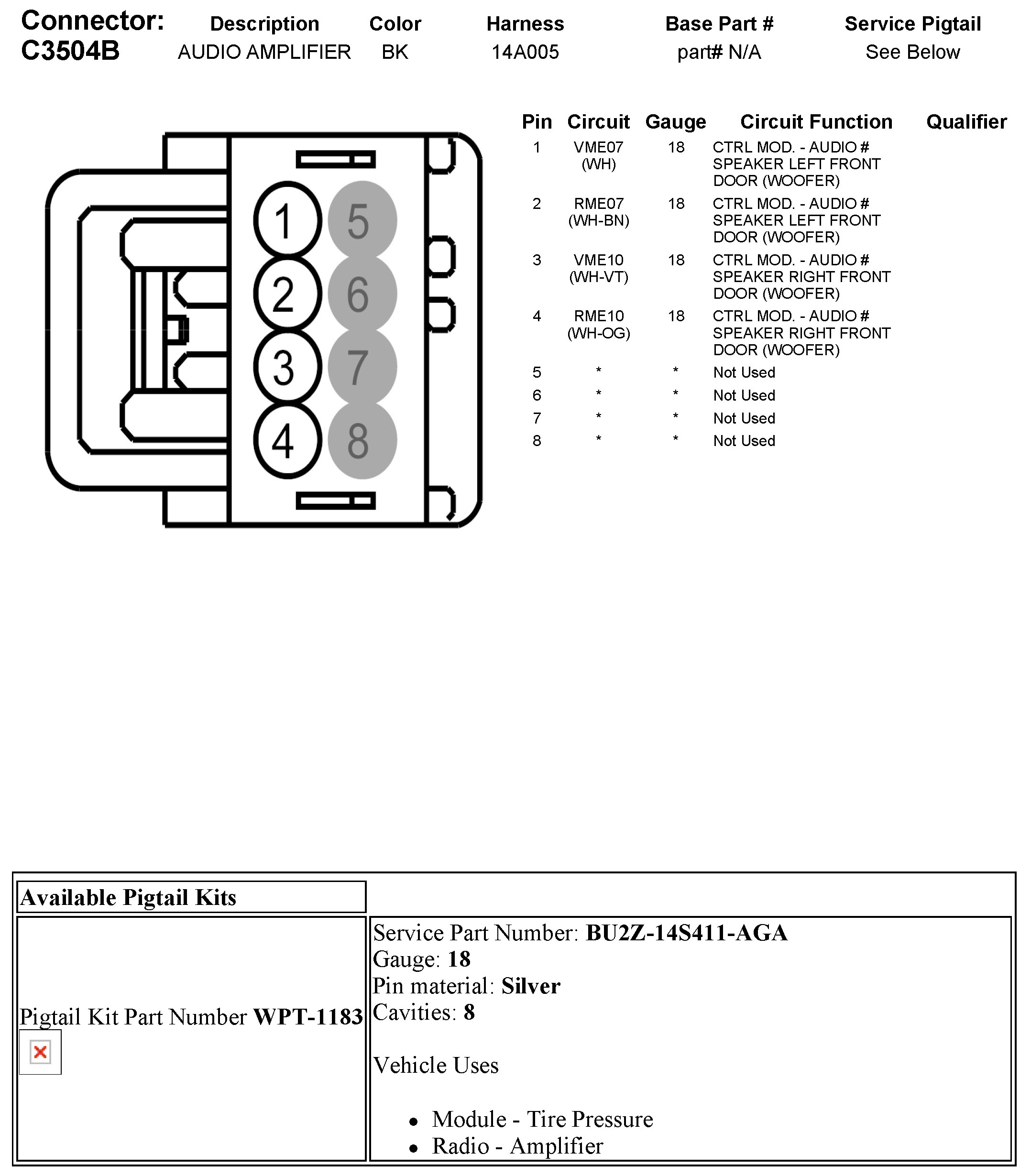

C3504B Audio Amplifier
C3504B Audio Amplifier
