Home >> Ford >> 2012 >> Explorer AWD V6-3.5L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Control Module >> Diagrams >> C3265A Dual Climate Controlled Seat Module (DCSM)

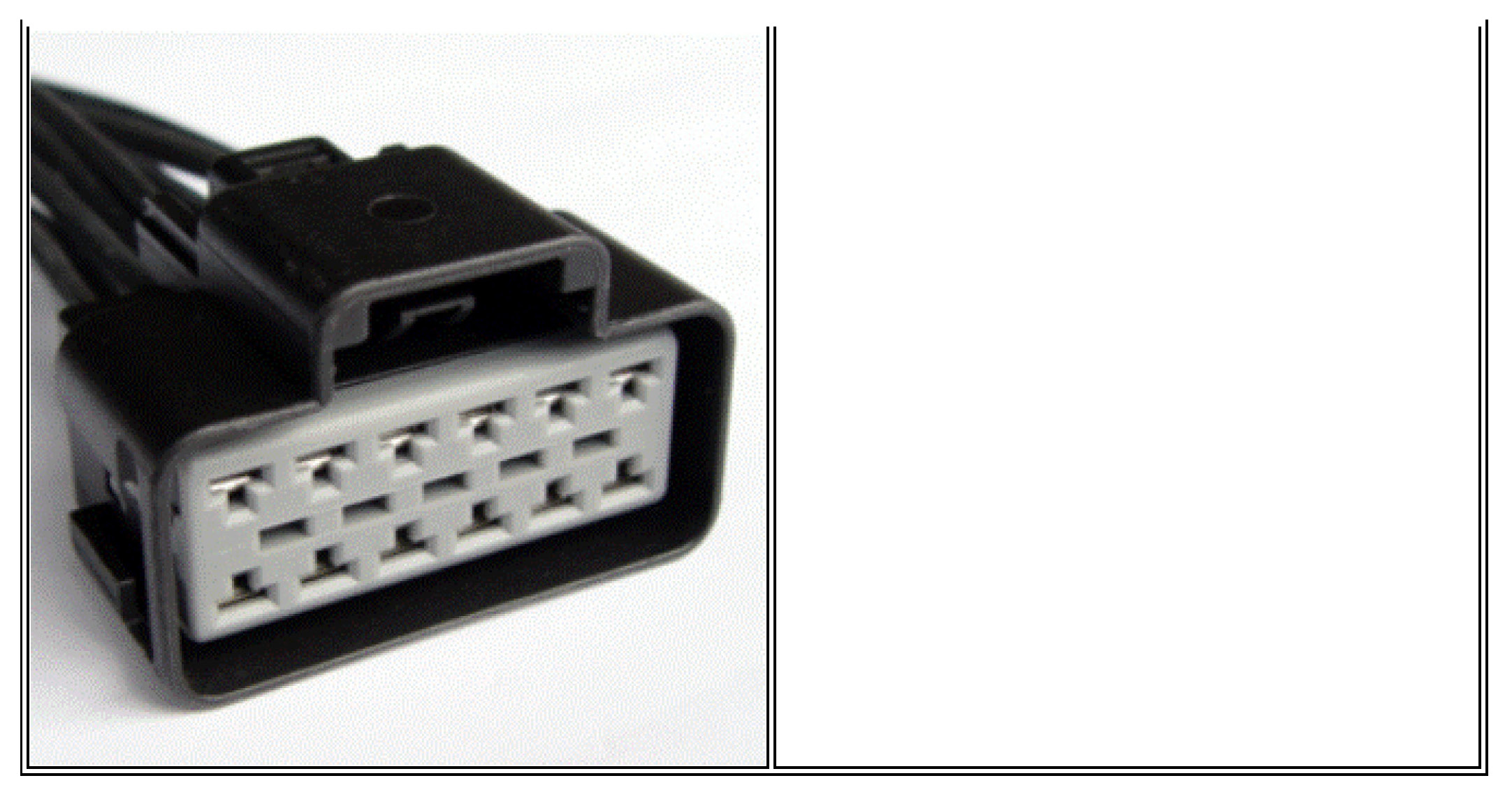

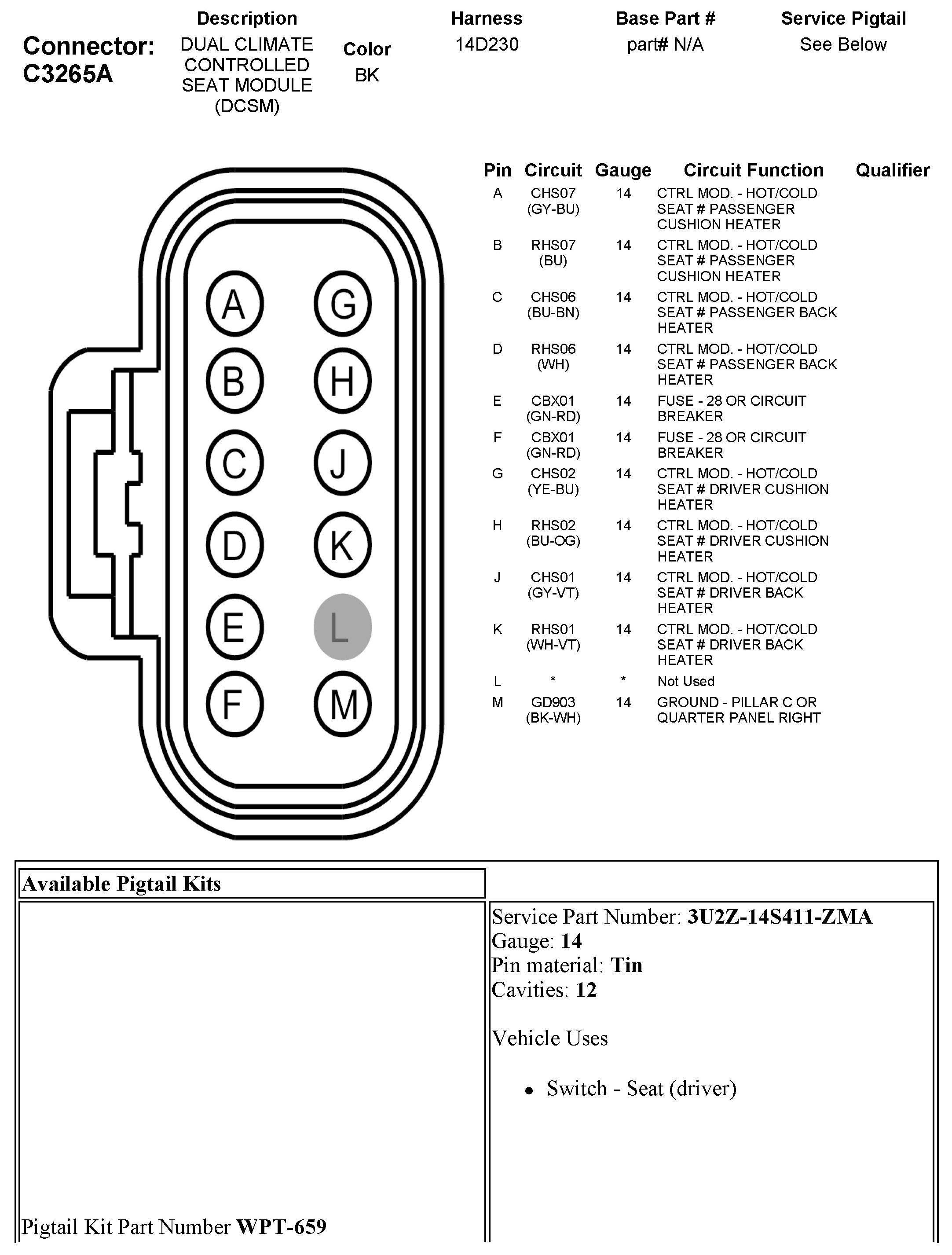

C3265A Dual Climate Controlled Seat Module (DCSM)
