Home >> Ford >> 2012 >> Expedition 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Trunk / Liftgate Lock Switch >> C4340 Handle Release Switch

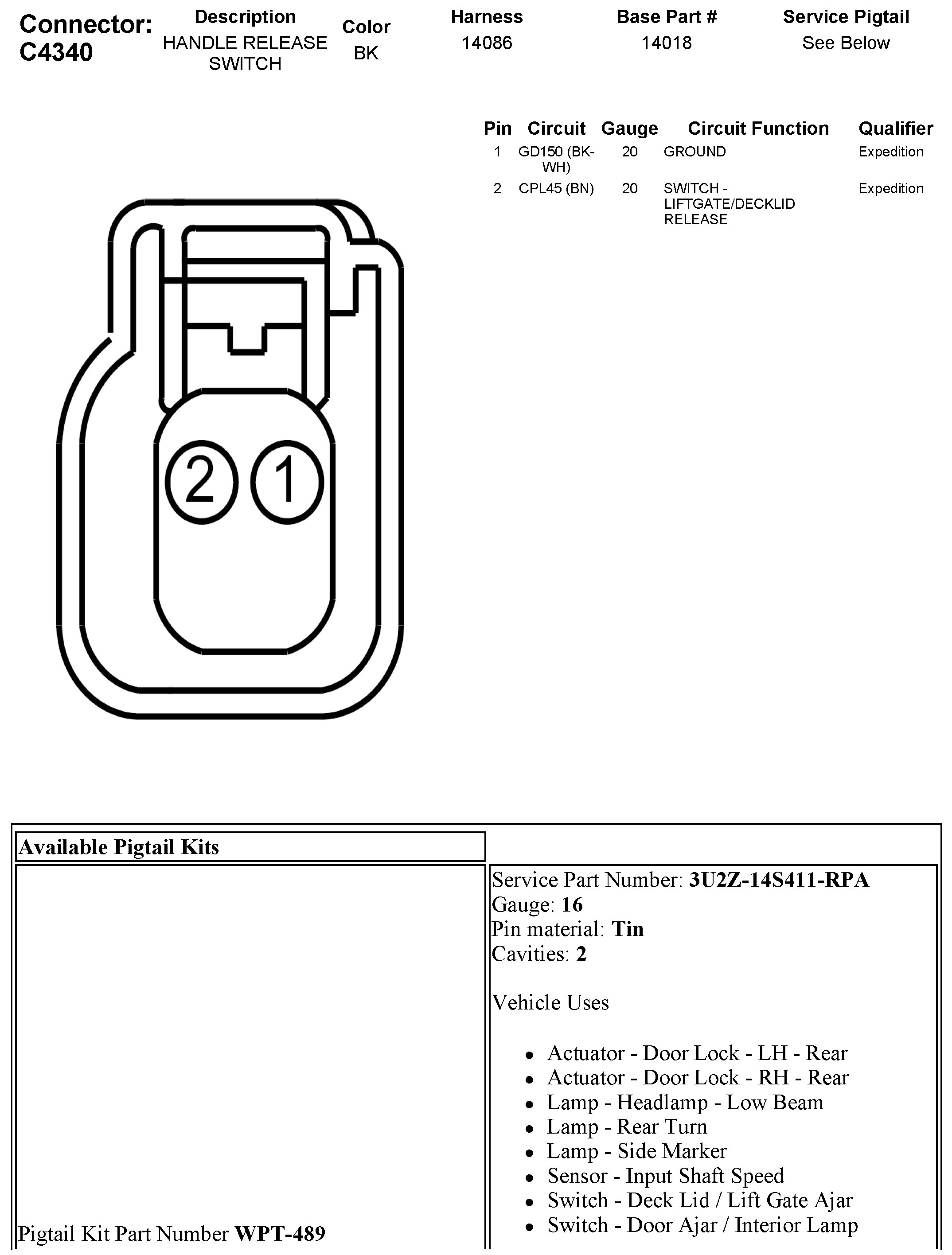

C4340 Handle Release Switch
