Home
>>
Ford
>>
2012
>>
Expedition 2WD V8-5.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

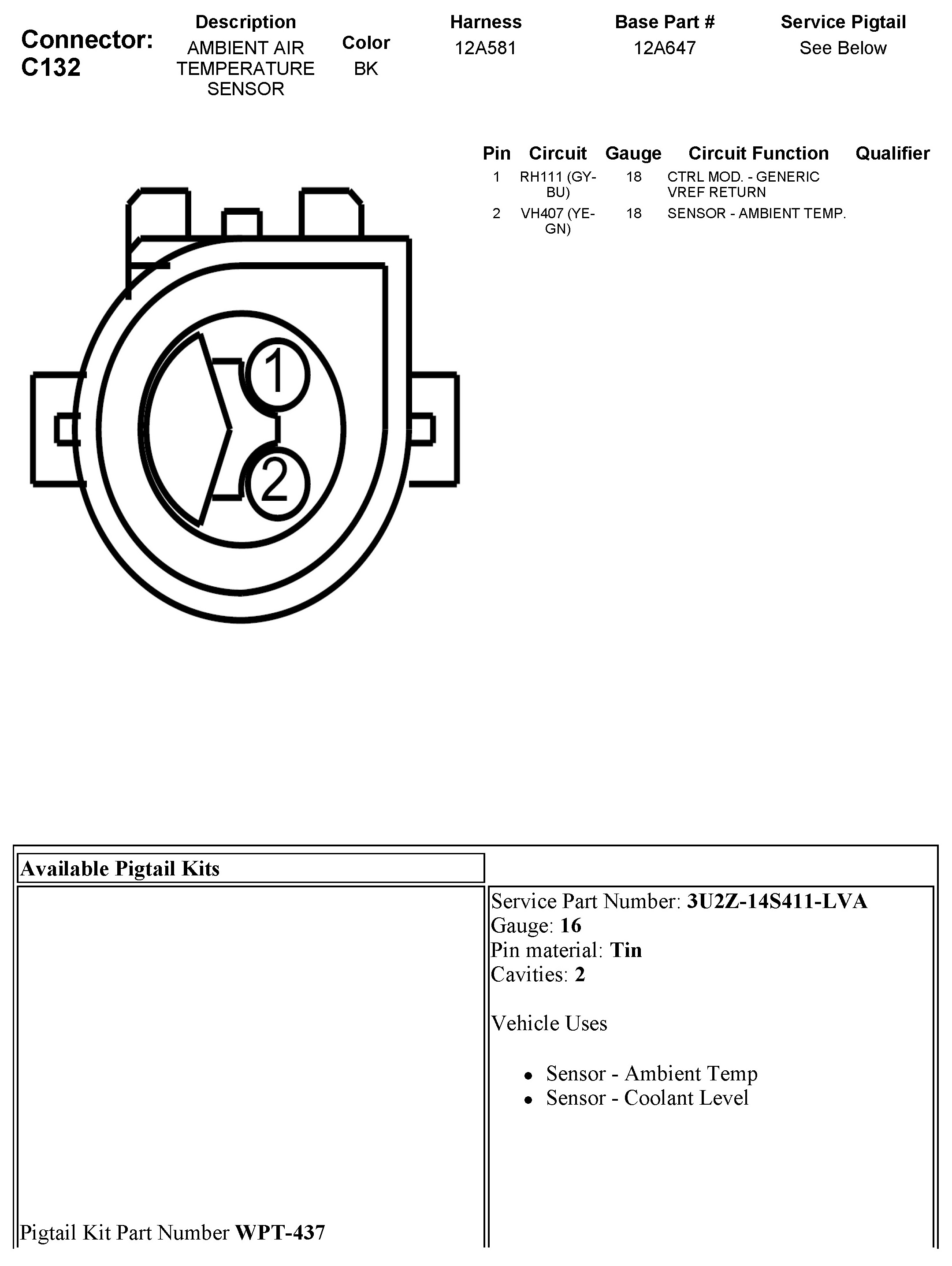

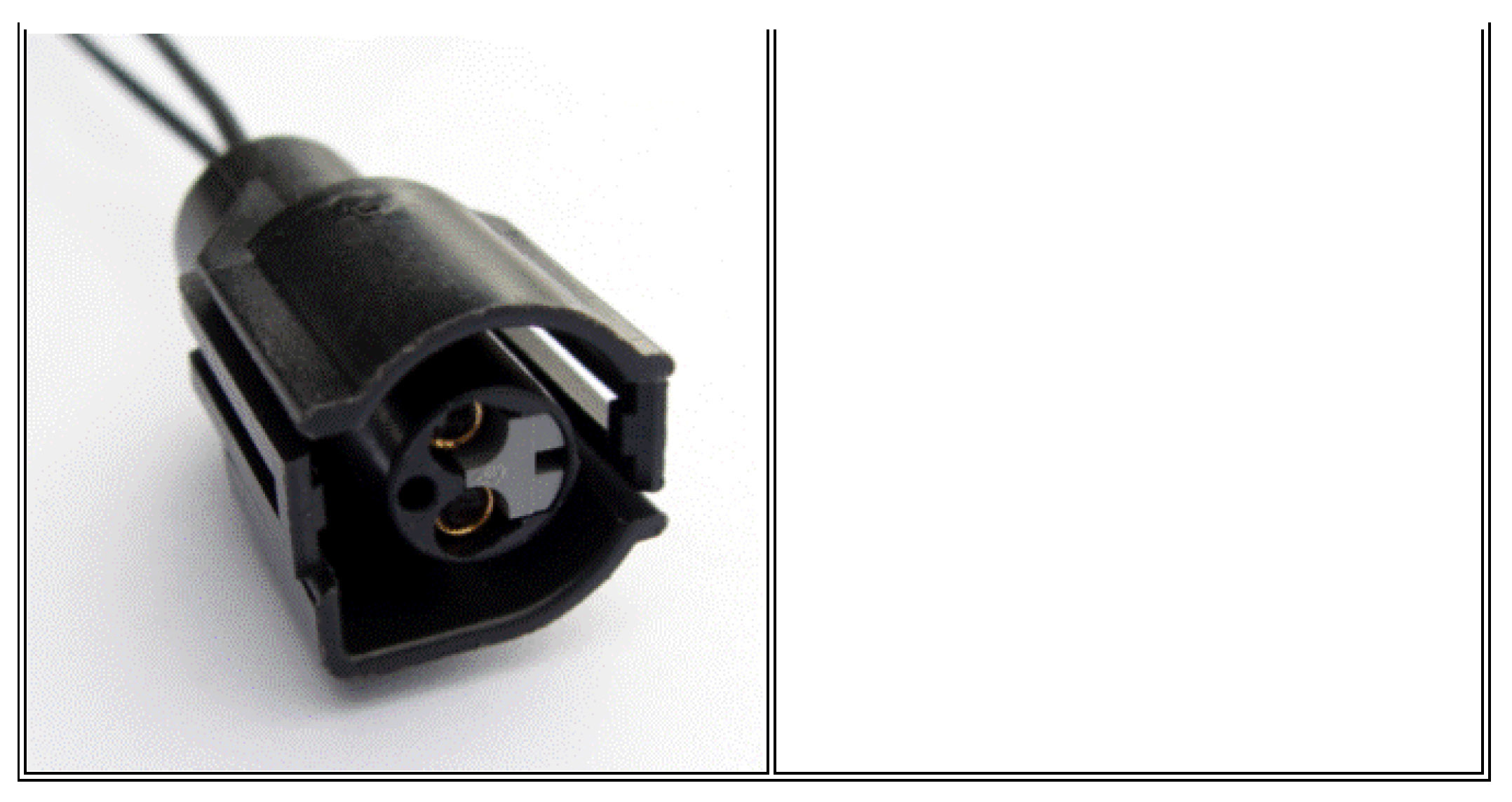

Ambient Temperature Sensor / Switch HVAC
Ambient Temperature Sensor / Switch HVAC
