All Others



Natural Vacuum Leak Detection - All Others

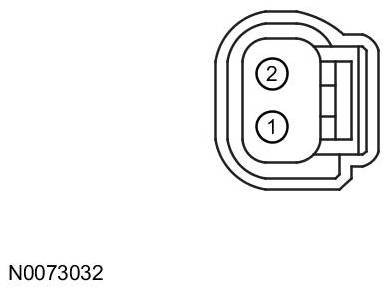

EVAP Purge Valve Connector





Harness Side
