Home >> Ford >> 2012 >> Escape 4WD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test HU: Intake Air Systems >> Automatic Transmission

Automatic Transmission

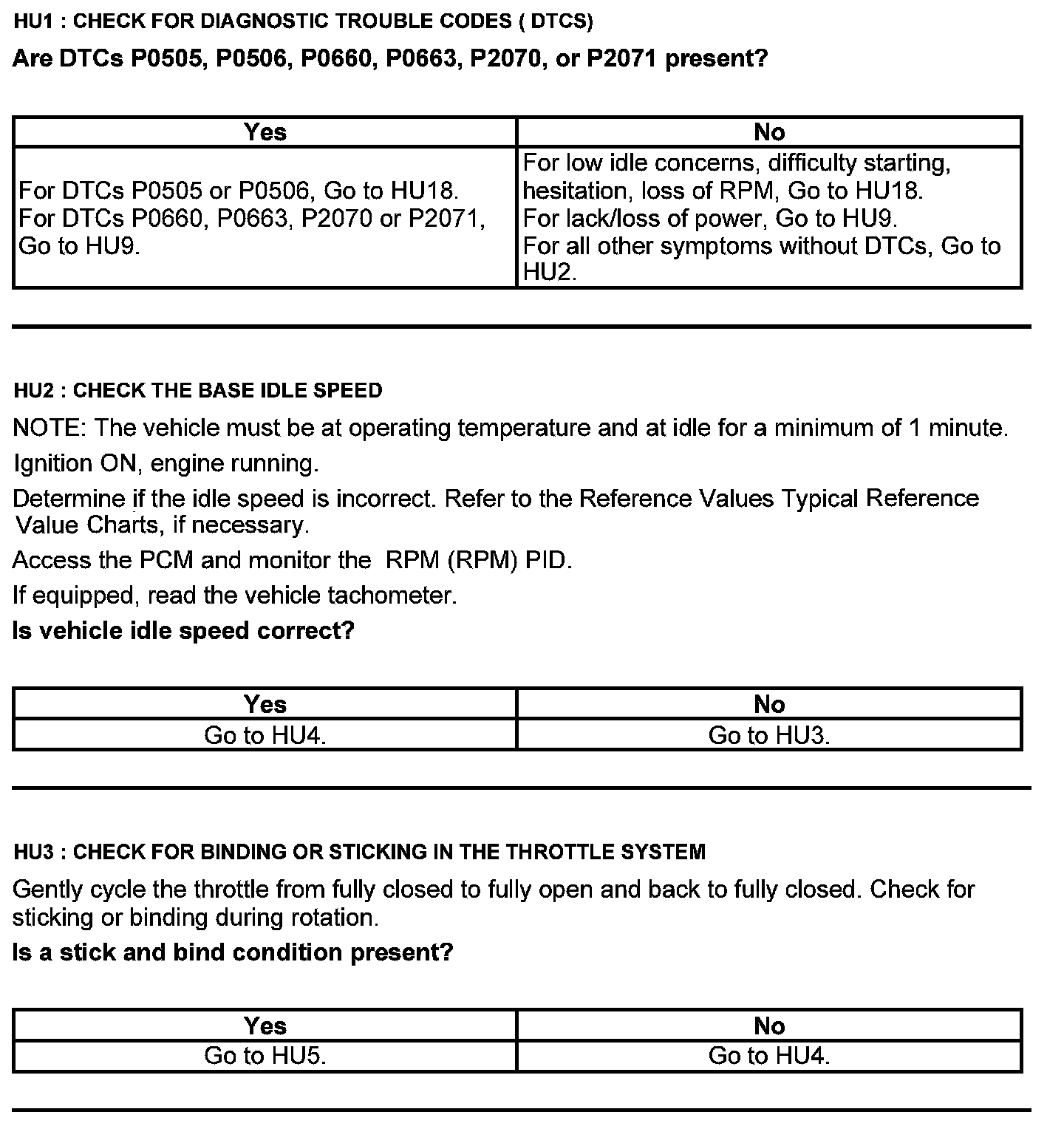

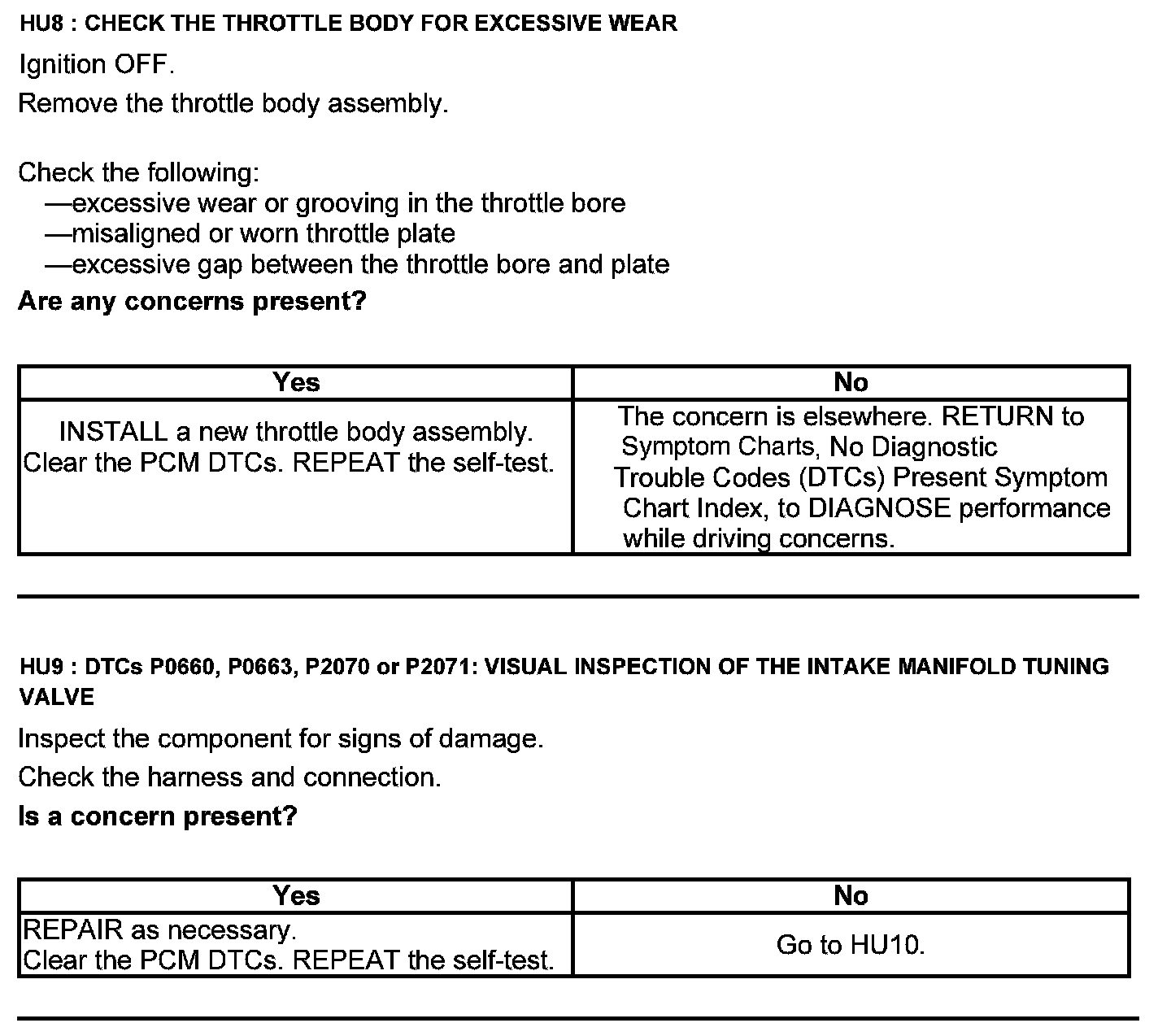

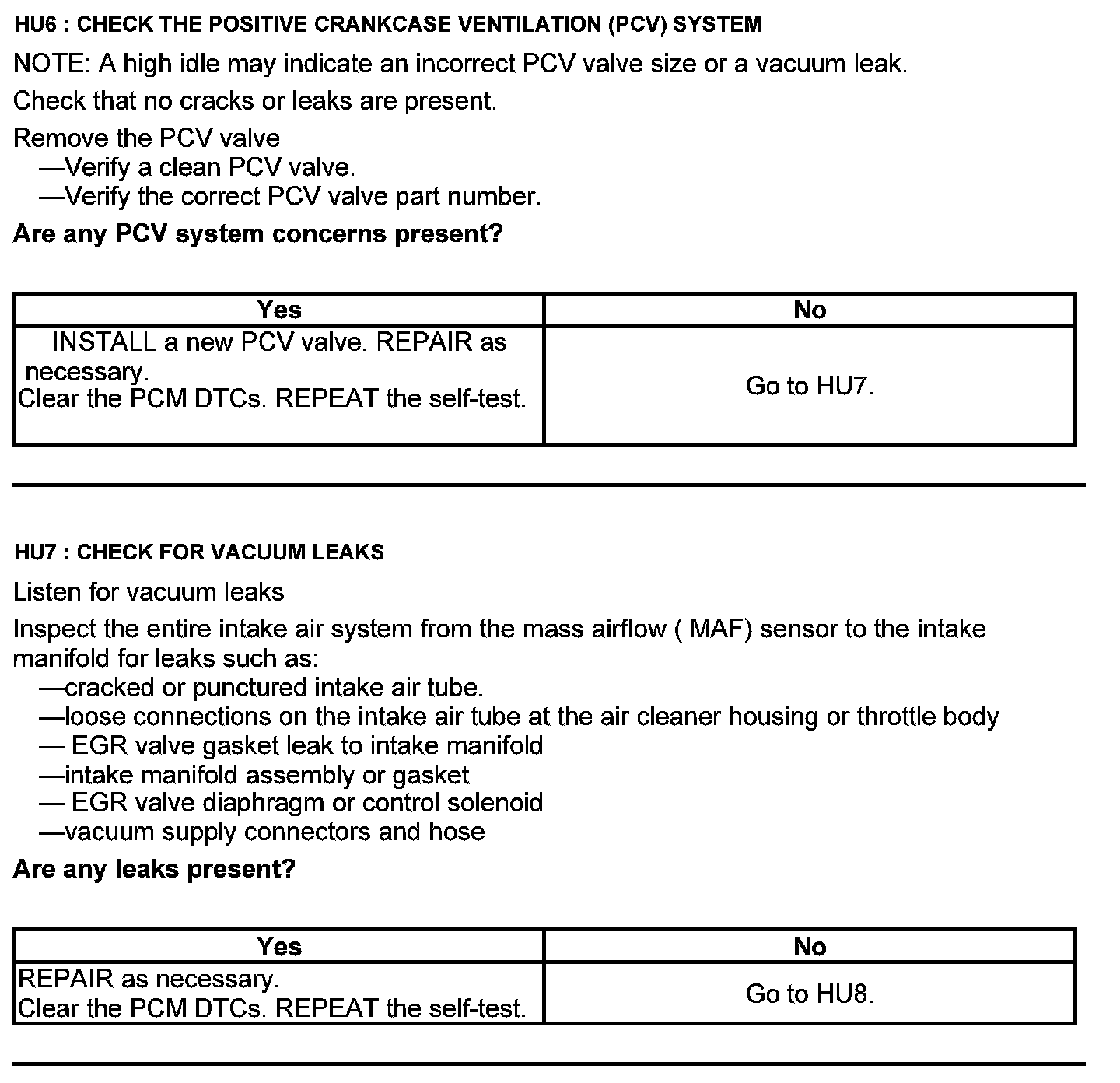

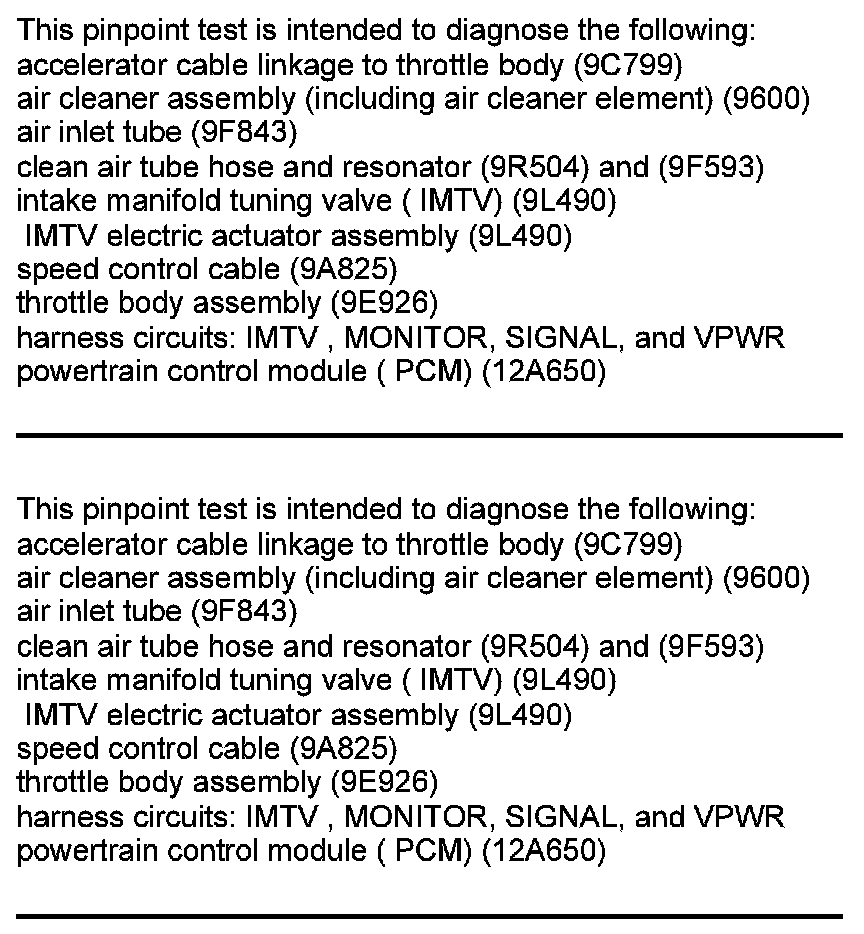

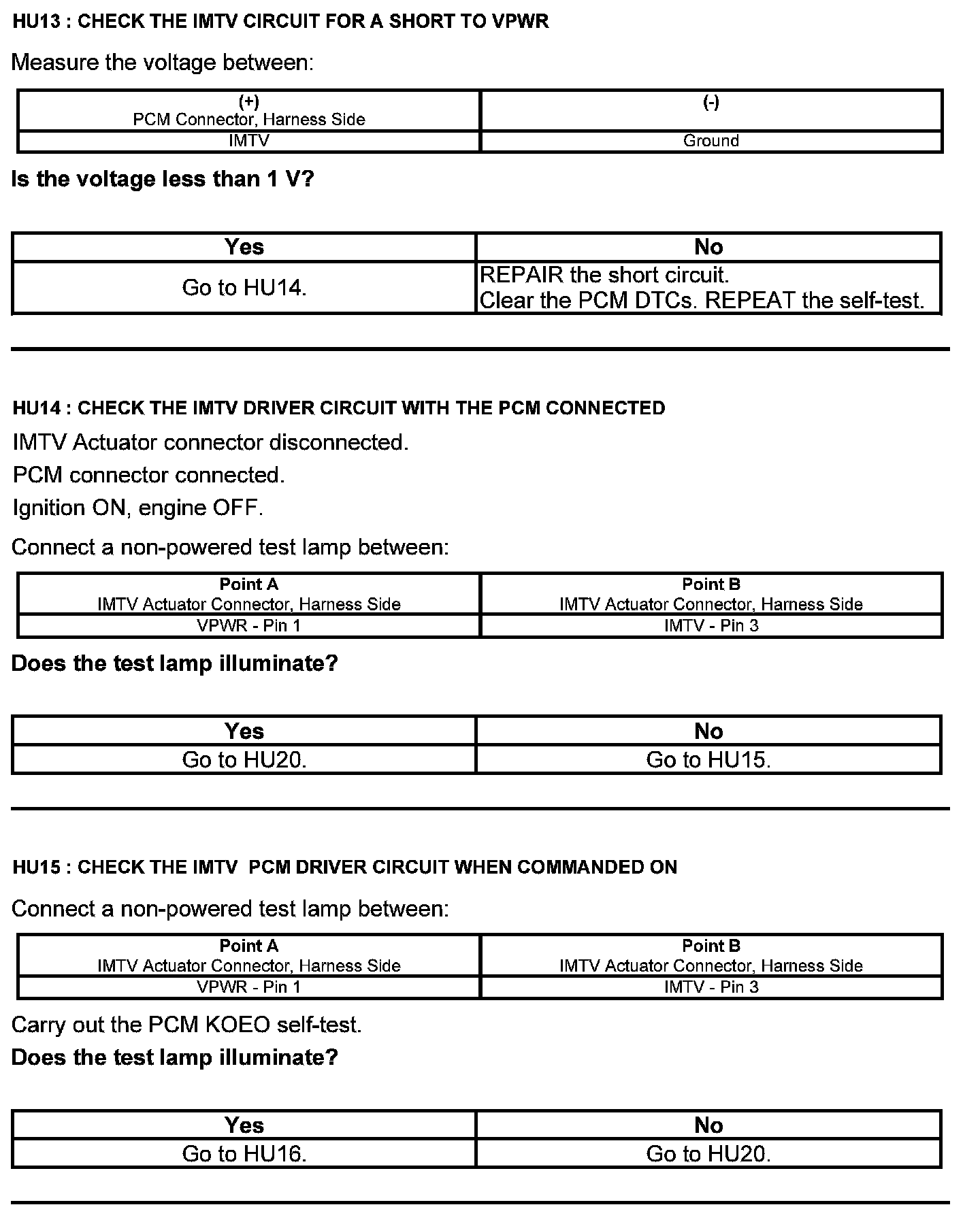

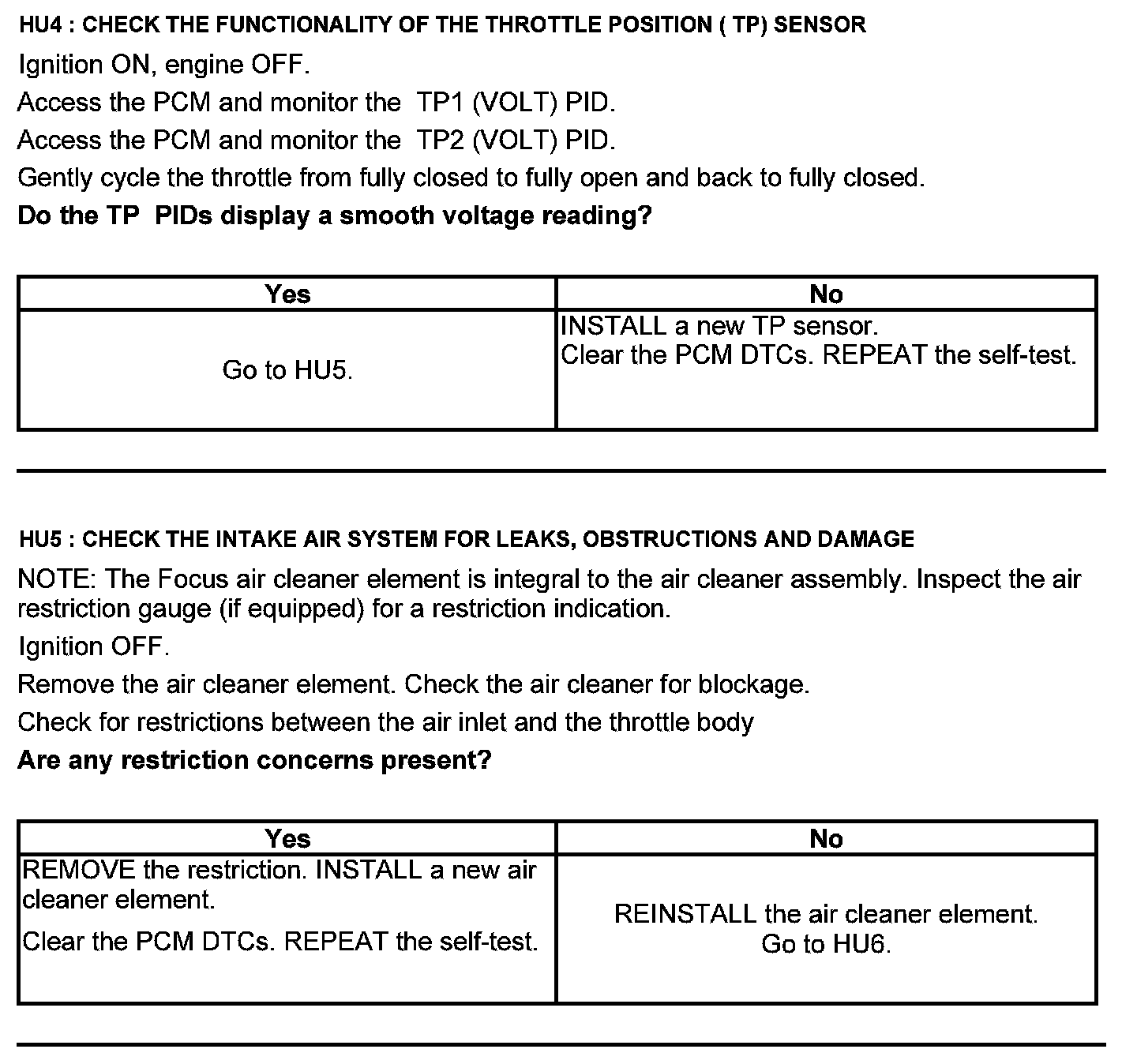

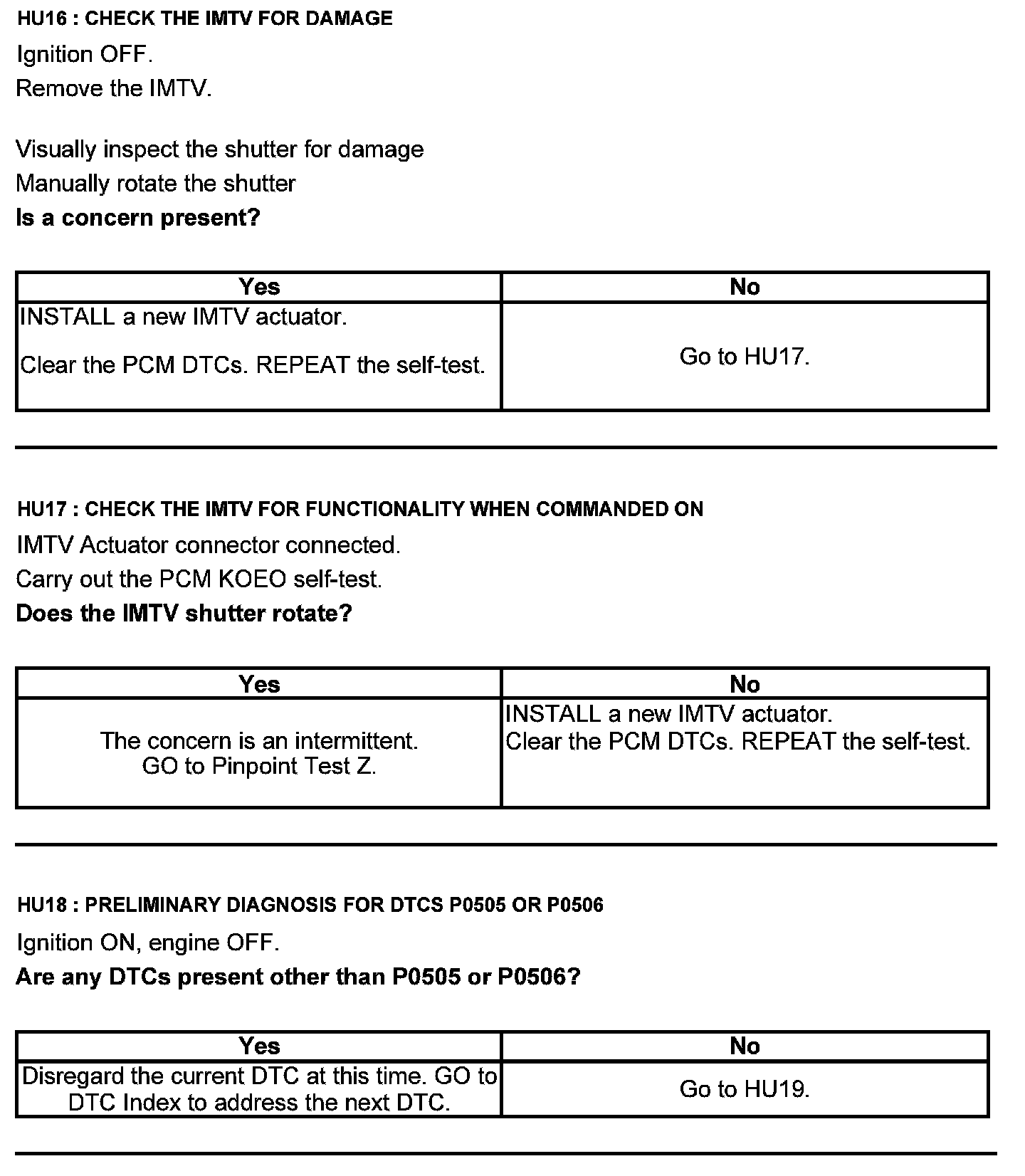

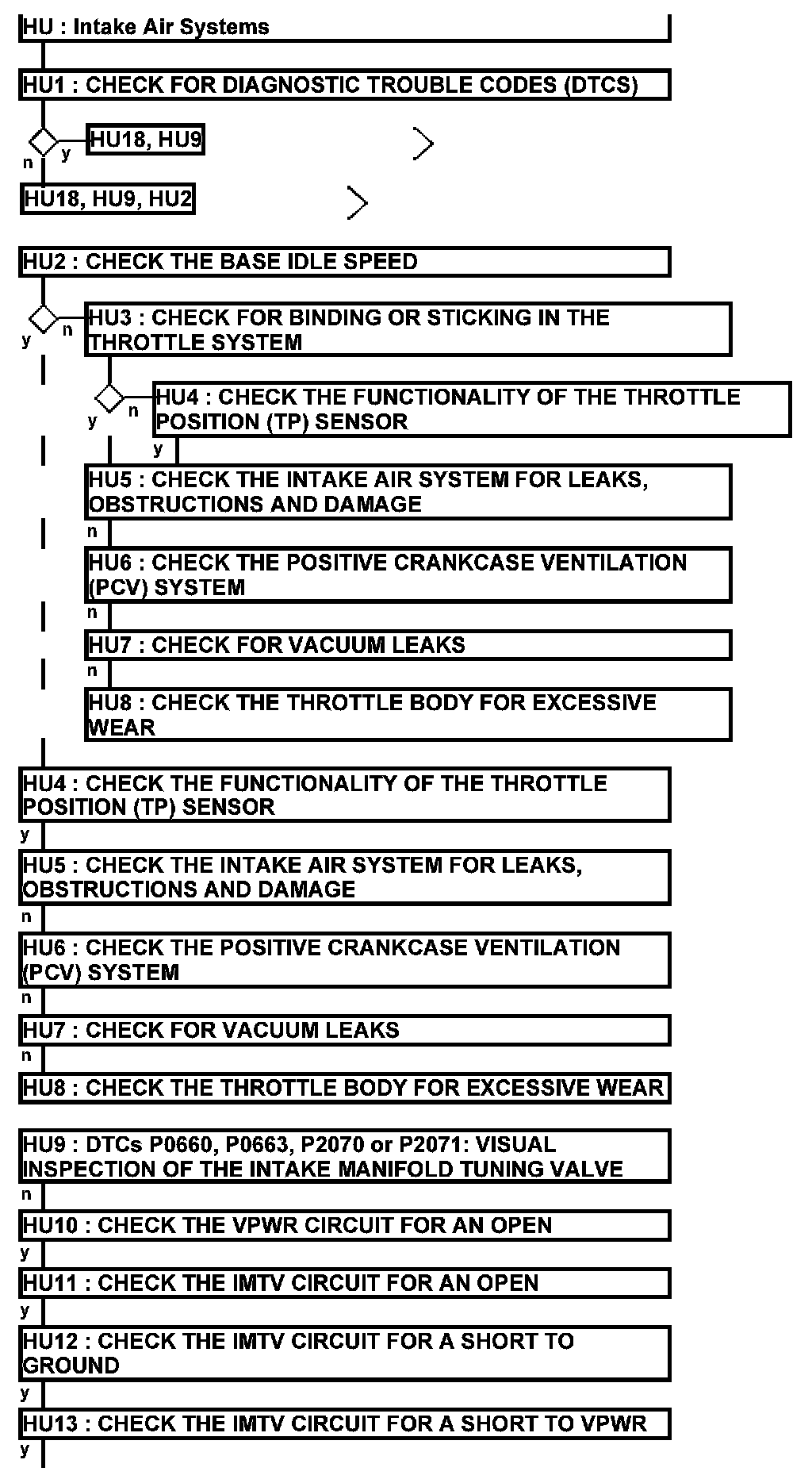

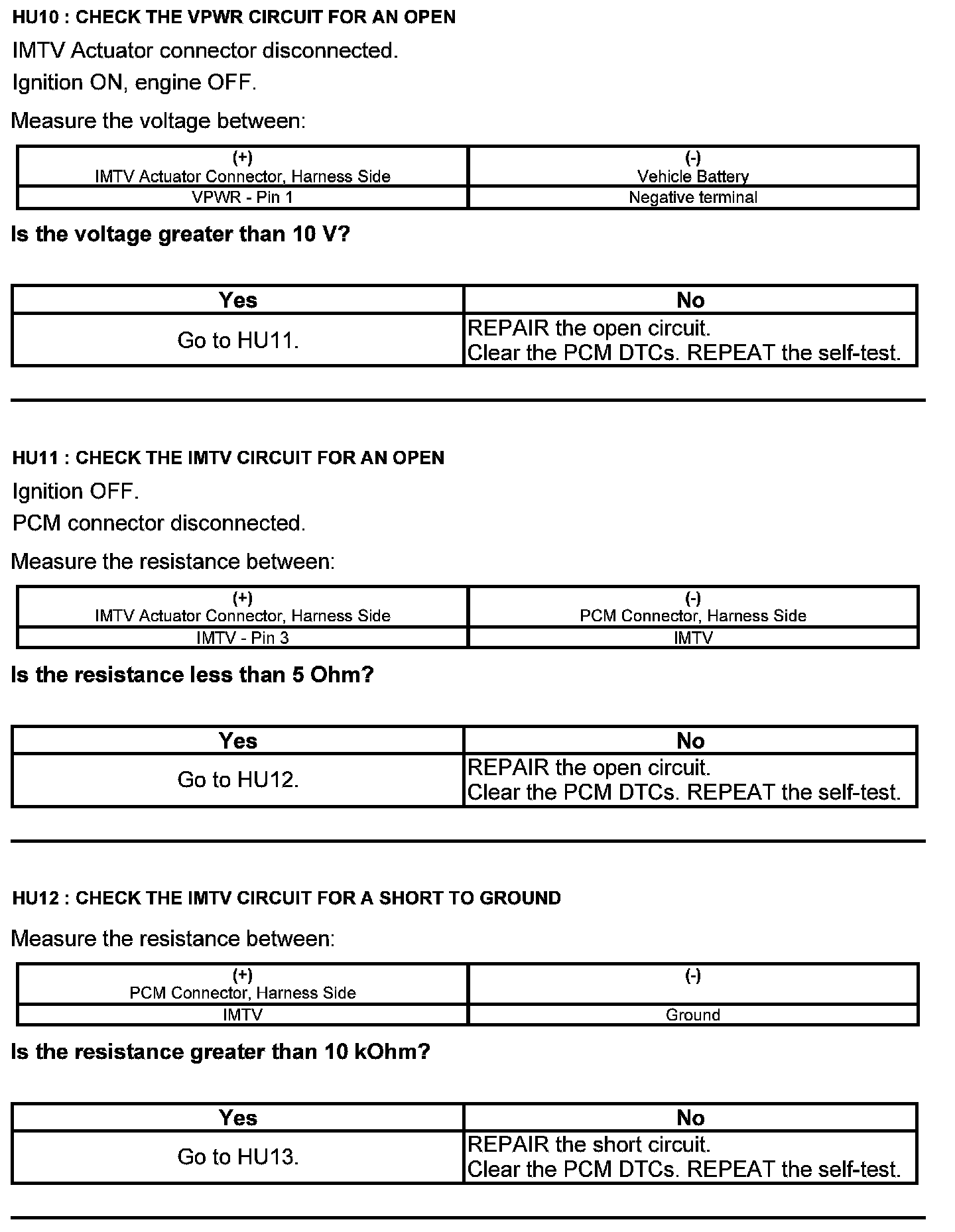

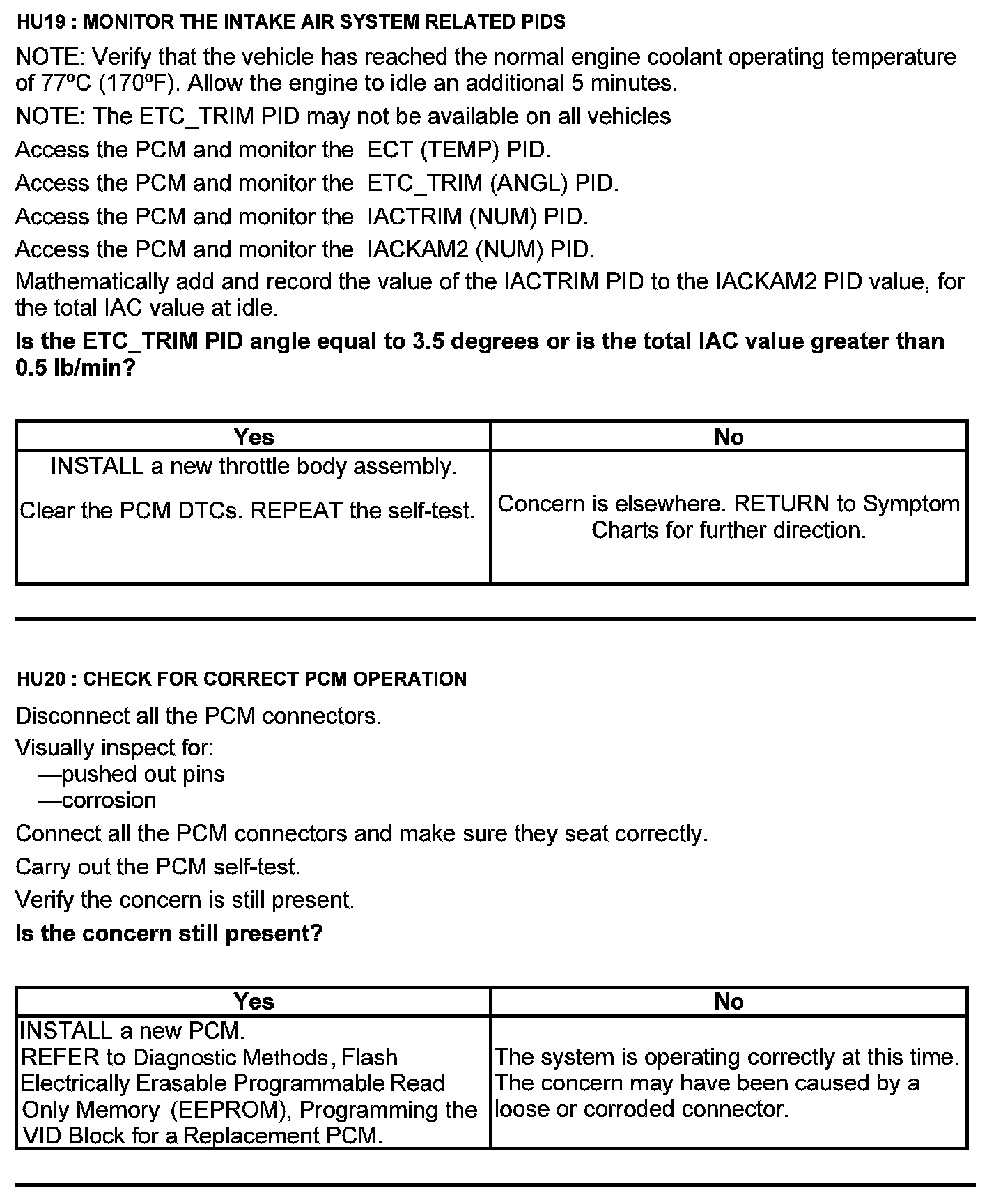

Intake Air Systems - Automatic Transmission

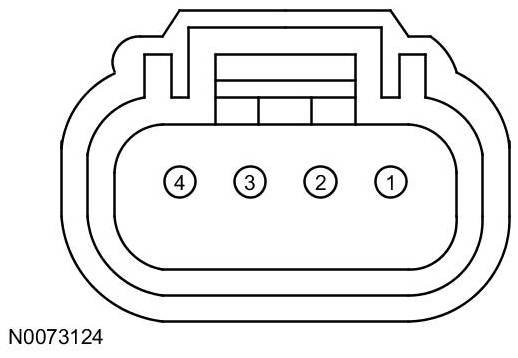

Intake Manifold Tuning Valve (IMTV) Actuator Connector





Harness Side

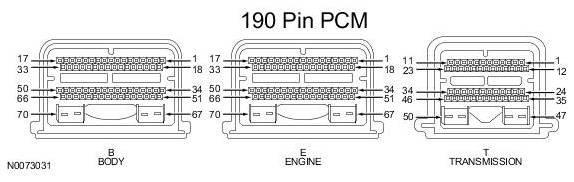

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
