All Others

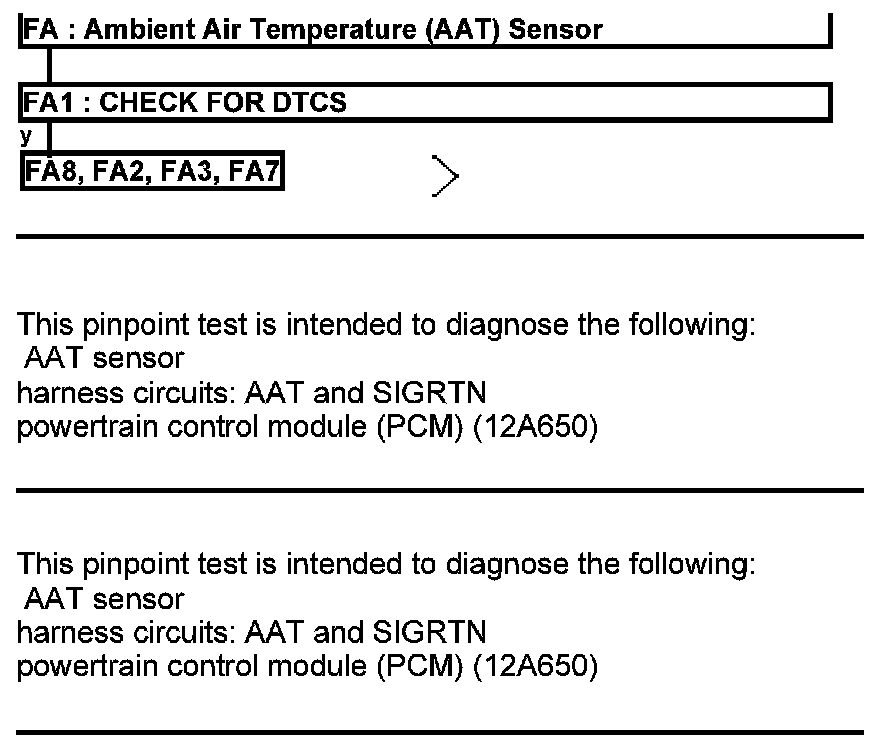

Ambient Air Temperature (AAT) Sensor - All Others

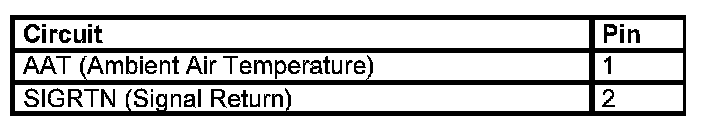

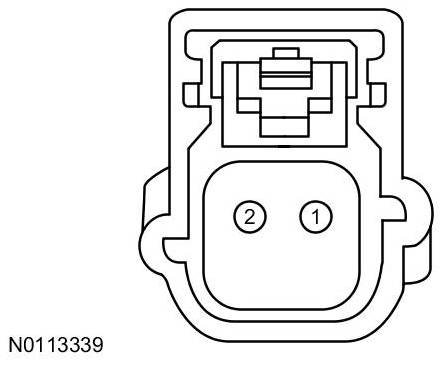

Ambient Air Temperature (AAT) Sensor Connector





Harness Side

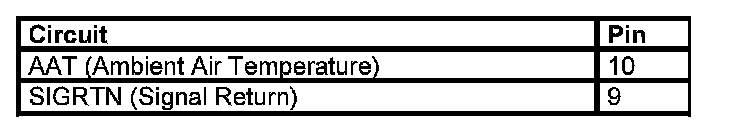

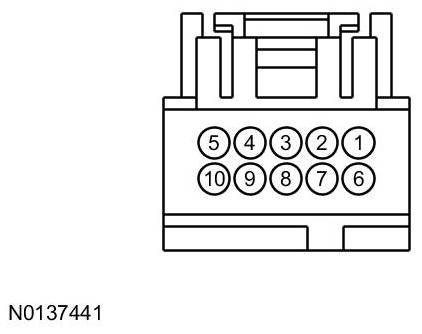

Right Exterior Rear View Mirror Assembly Connector





Harness Side

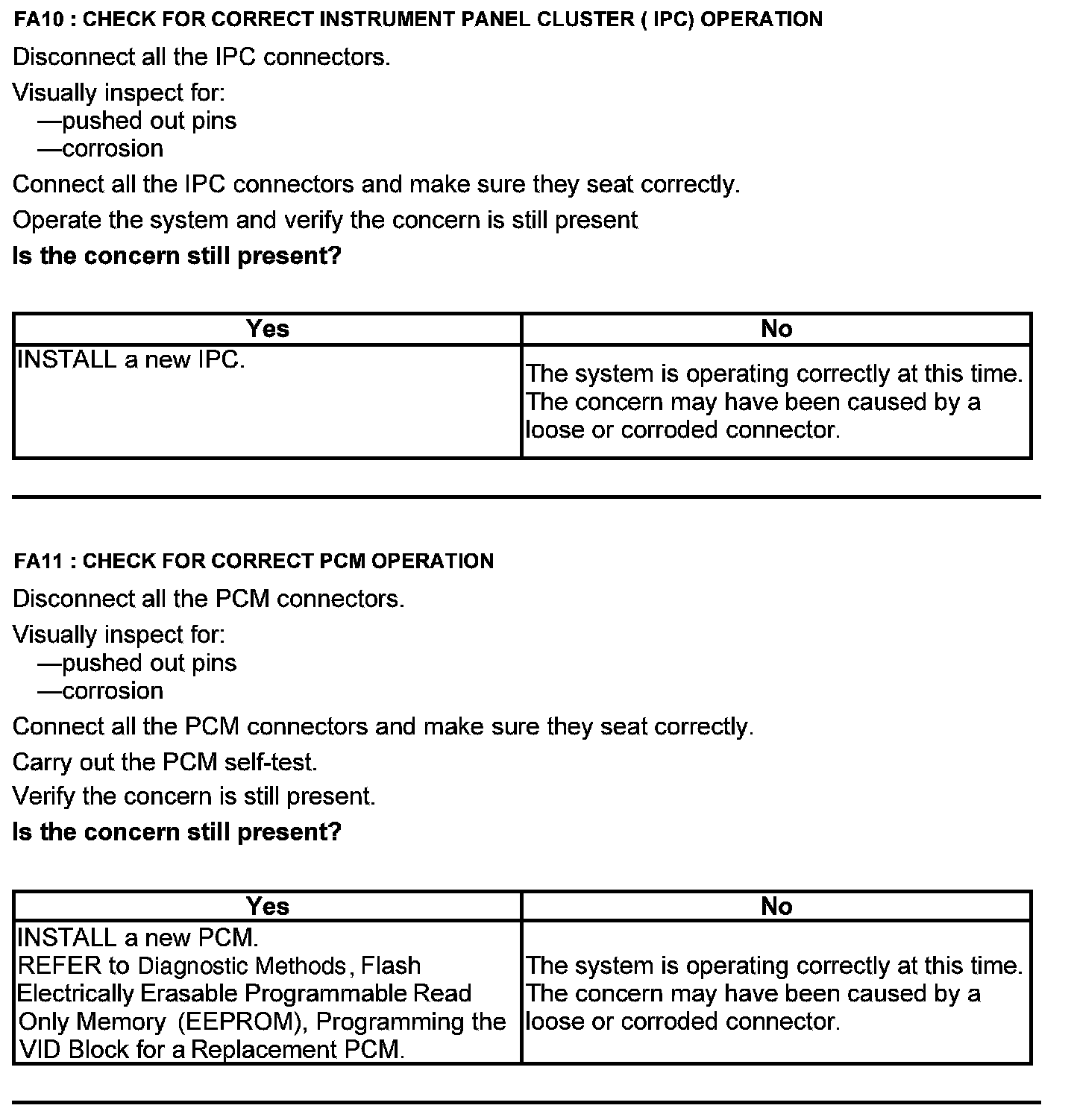

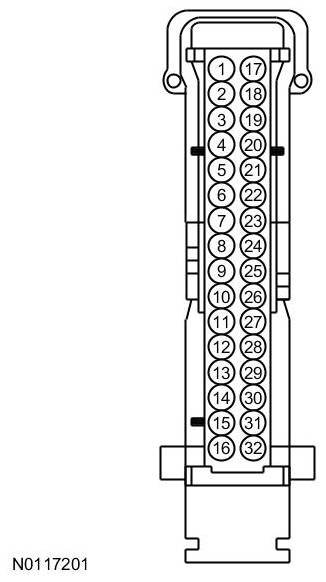

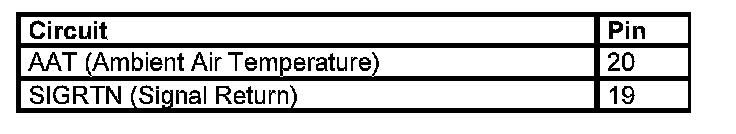

Instrument Panel Cluster (IPC) Connector





Harness Side
