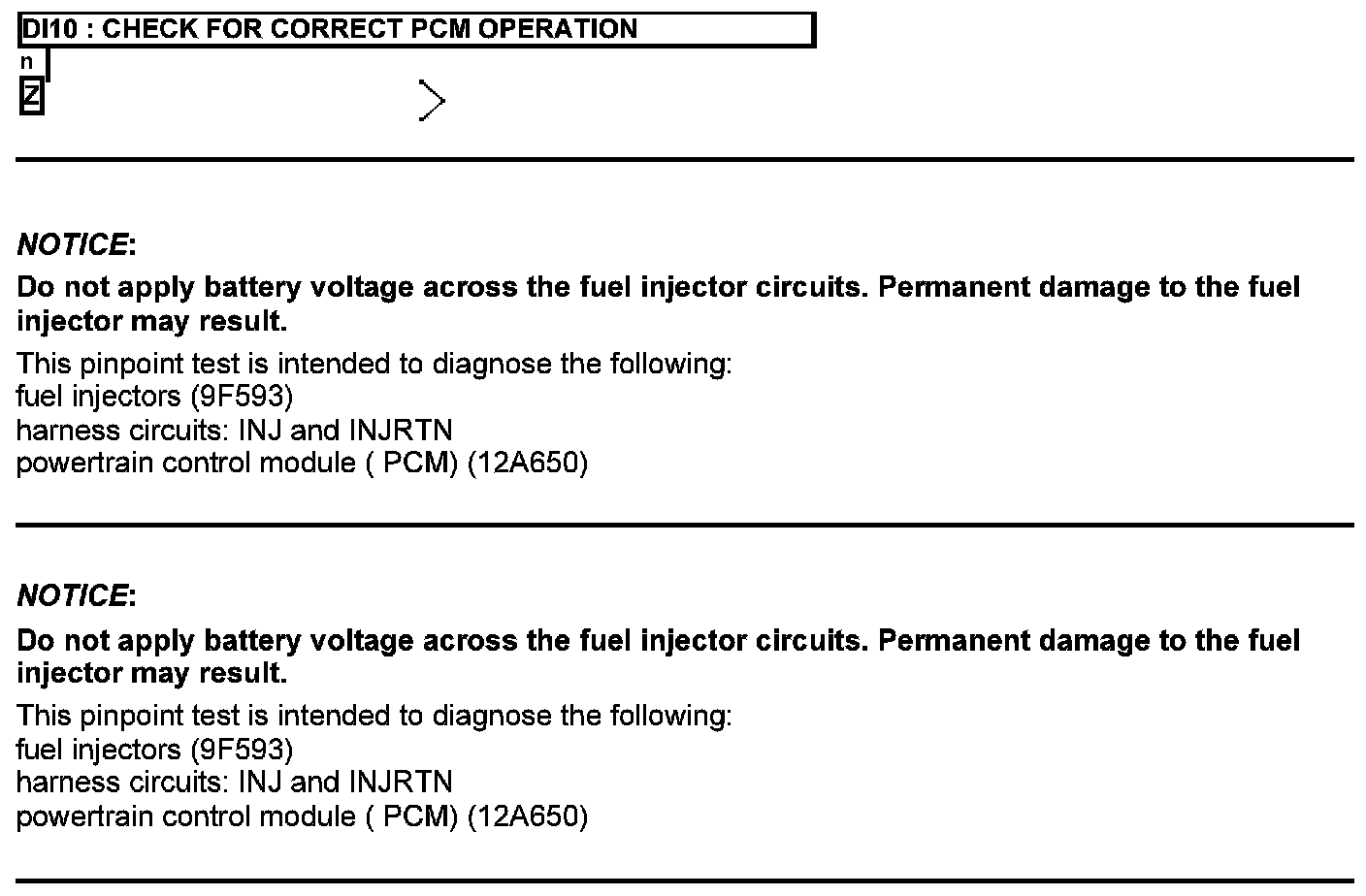

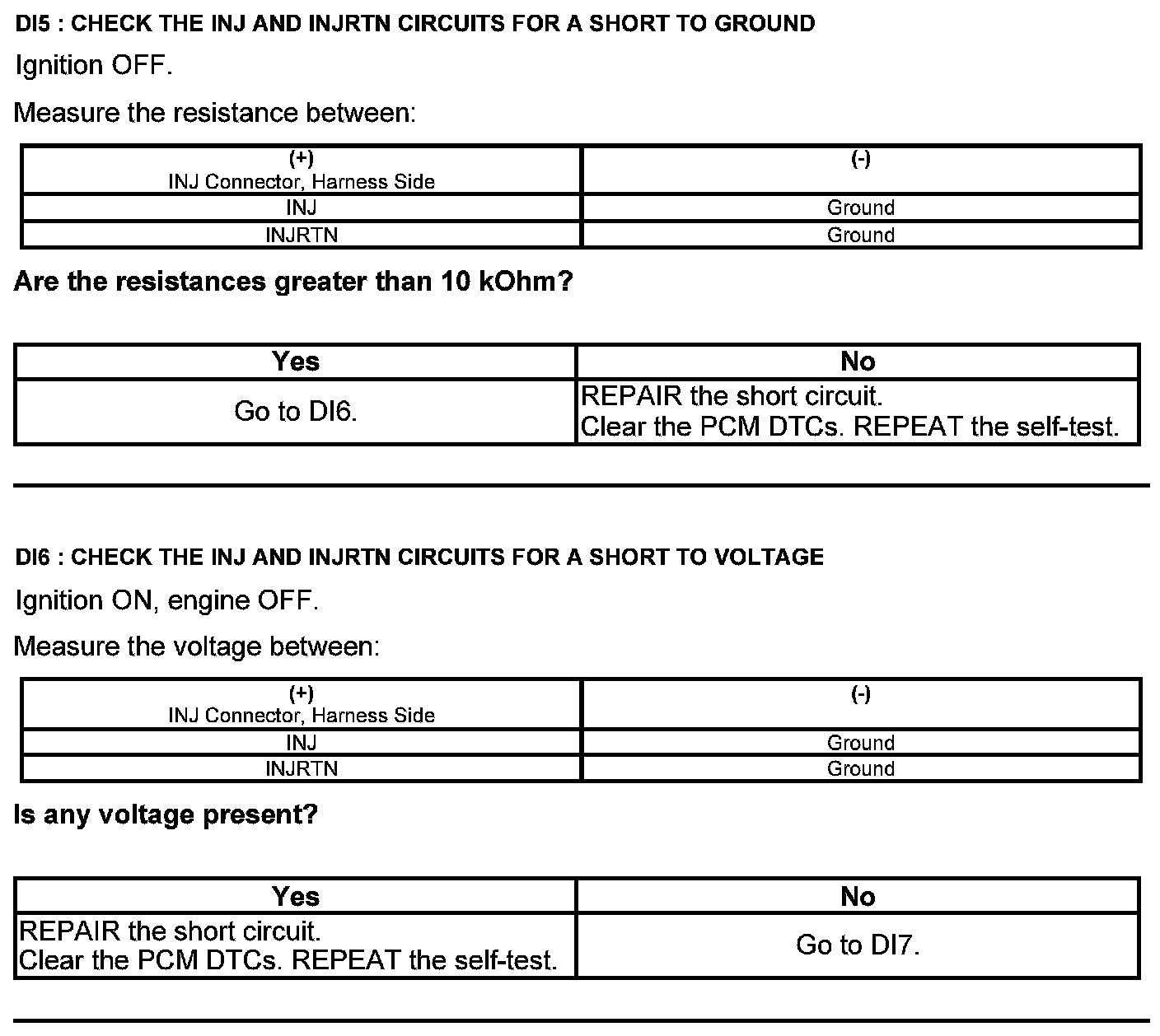

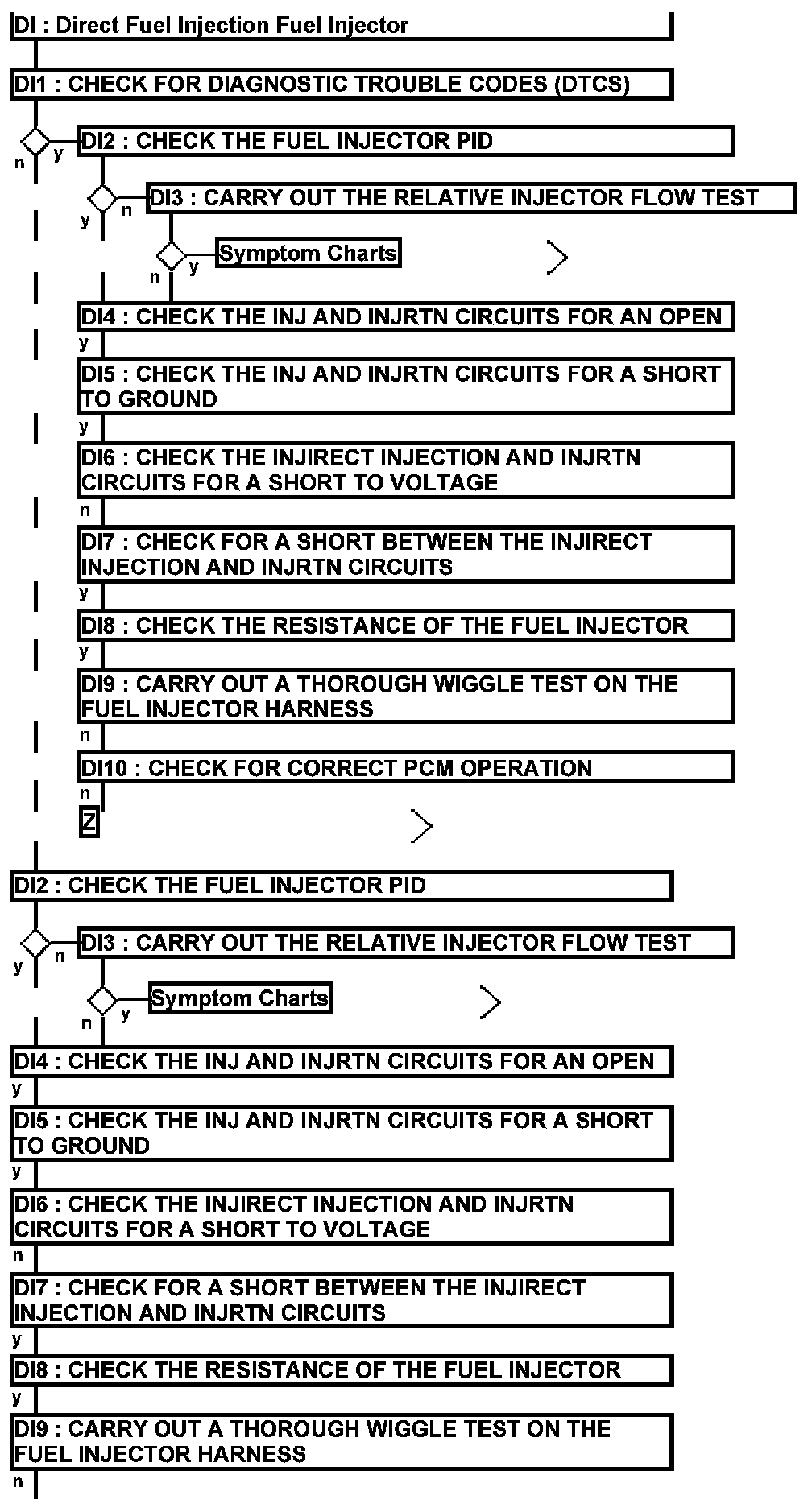

Direct Fuel Injection Fuel Injector - Automatic Transmission

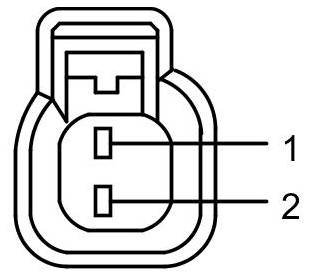

Injector (INJ) Connector





Harness Side






Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
