Fog/Driving Lamp: Service and Repair

Fog Lamp

NOTE: Escape shown, Mariner similar.









Removal and Installation

NOTE: Make sure the headlamp switch and the ignition switch are in the OFF position.

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist.

Escape

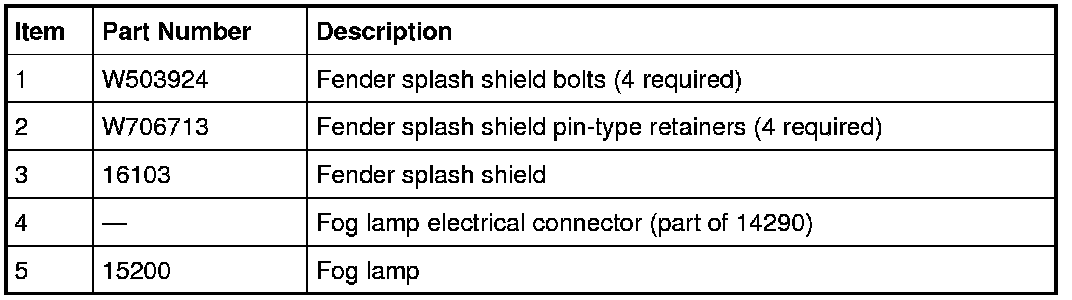

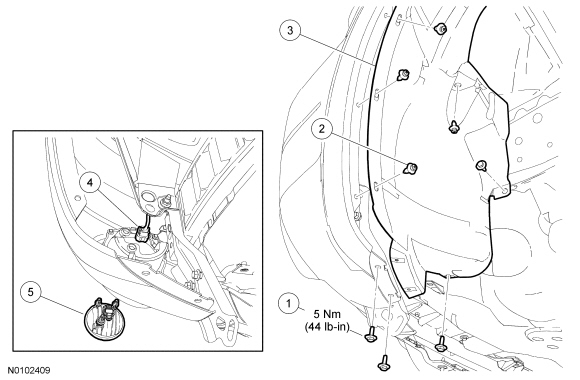

2. Remove the 4 fender splash shield bolts.
- To install, tighten to 5 Nm (44 lb-in).


3. Remove the 4 fender splash shield pin-type retainers.
- Position the fender splash shield aside.


All vehicles

4. Disconnect the fog lamp electrical connector.

5. Release the 3 retainers and remove the fog lamp.

6. To install, reverse the removal procedure.
