Home
>>
Ford
>>
2012
>>
Escape 4WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>

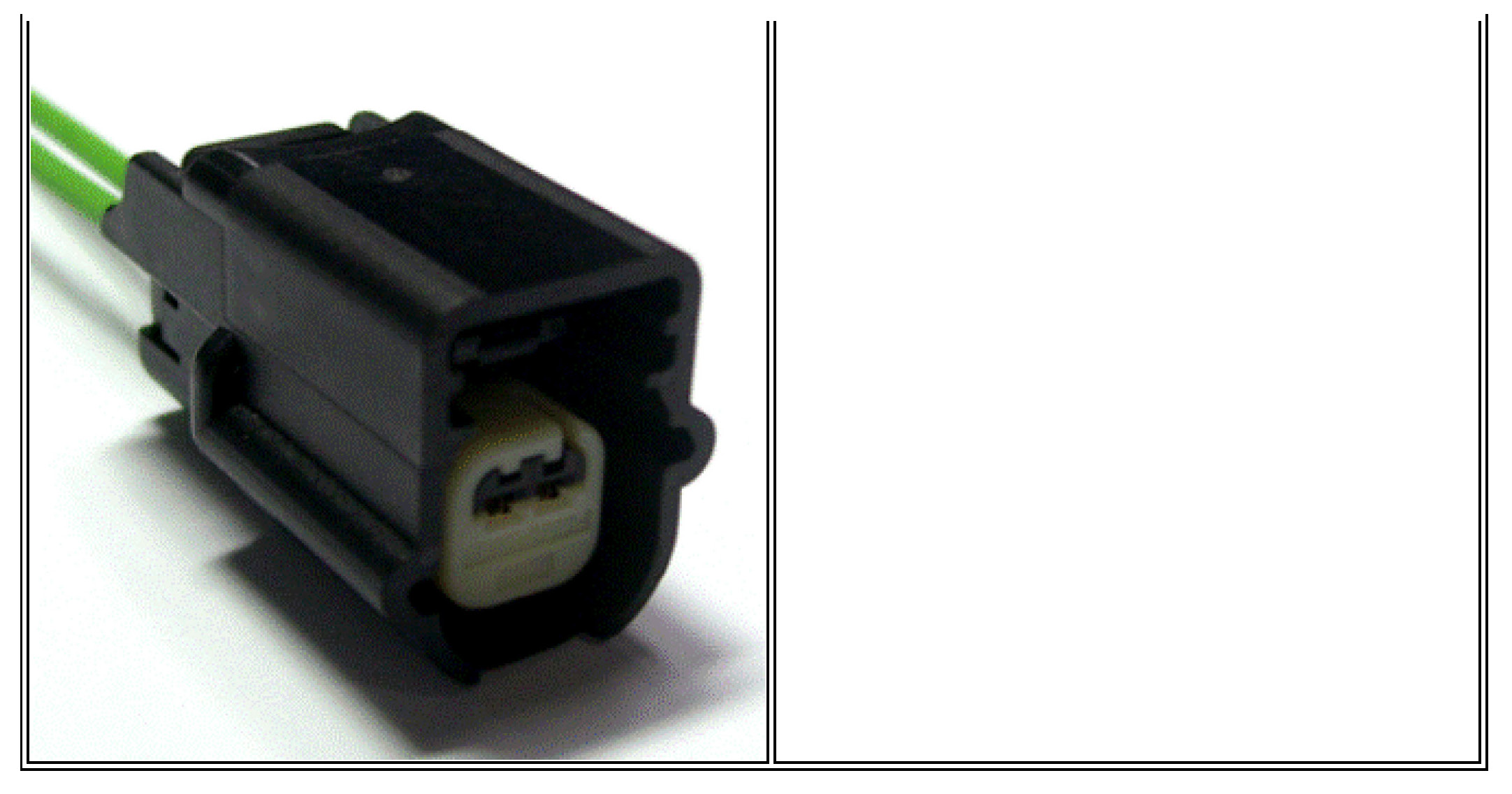

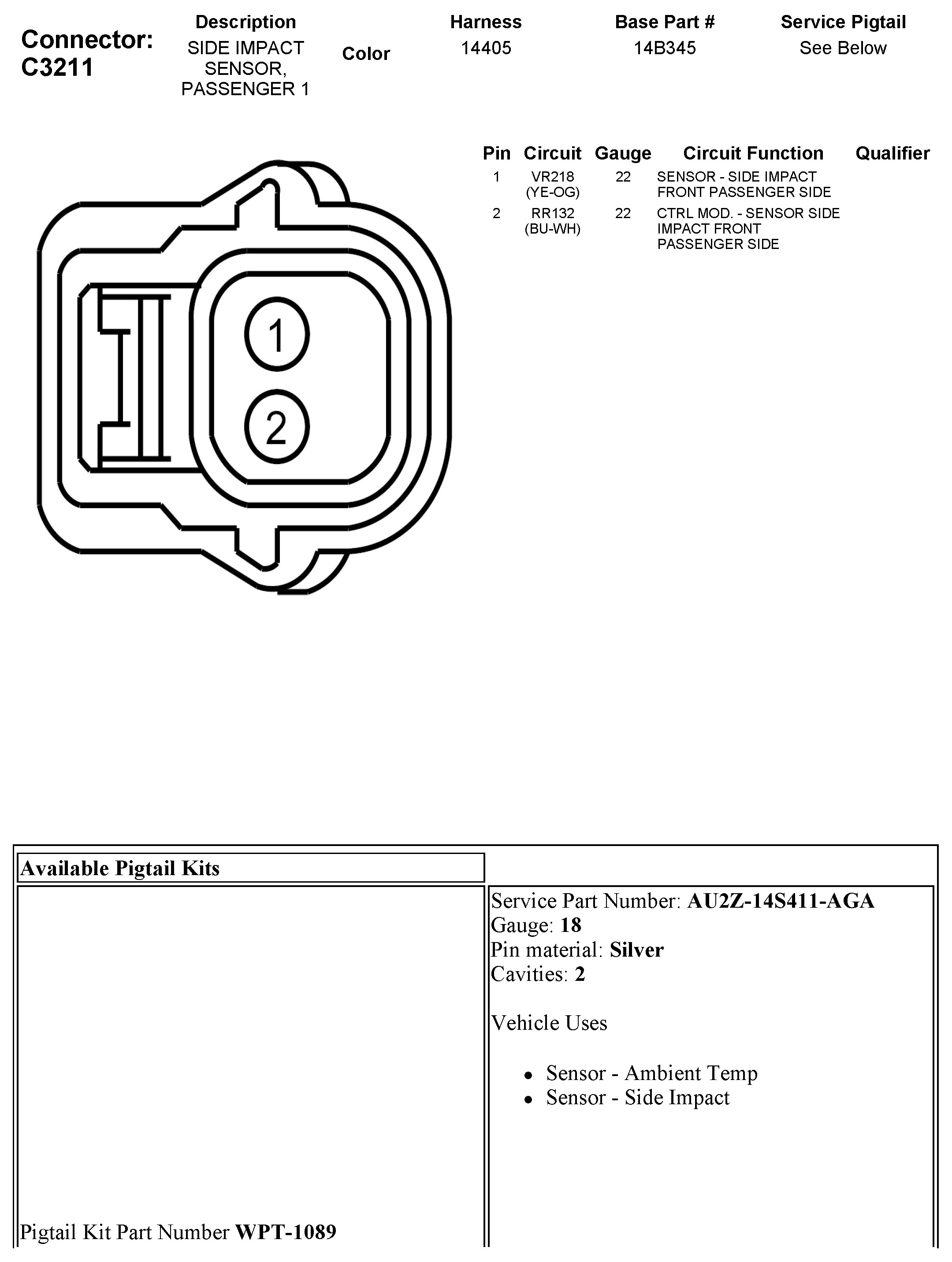

C3211 Side Impact Sensor, Passenger 1
C3211 Side Impact Sensor, Passenger 1
