Test A: Engine No Start

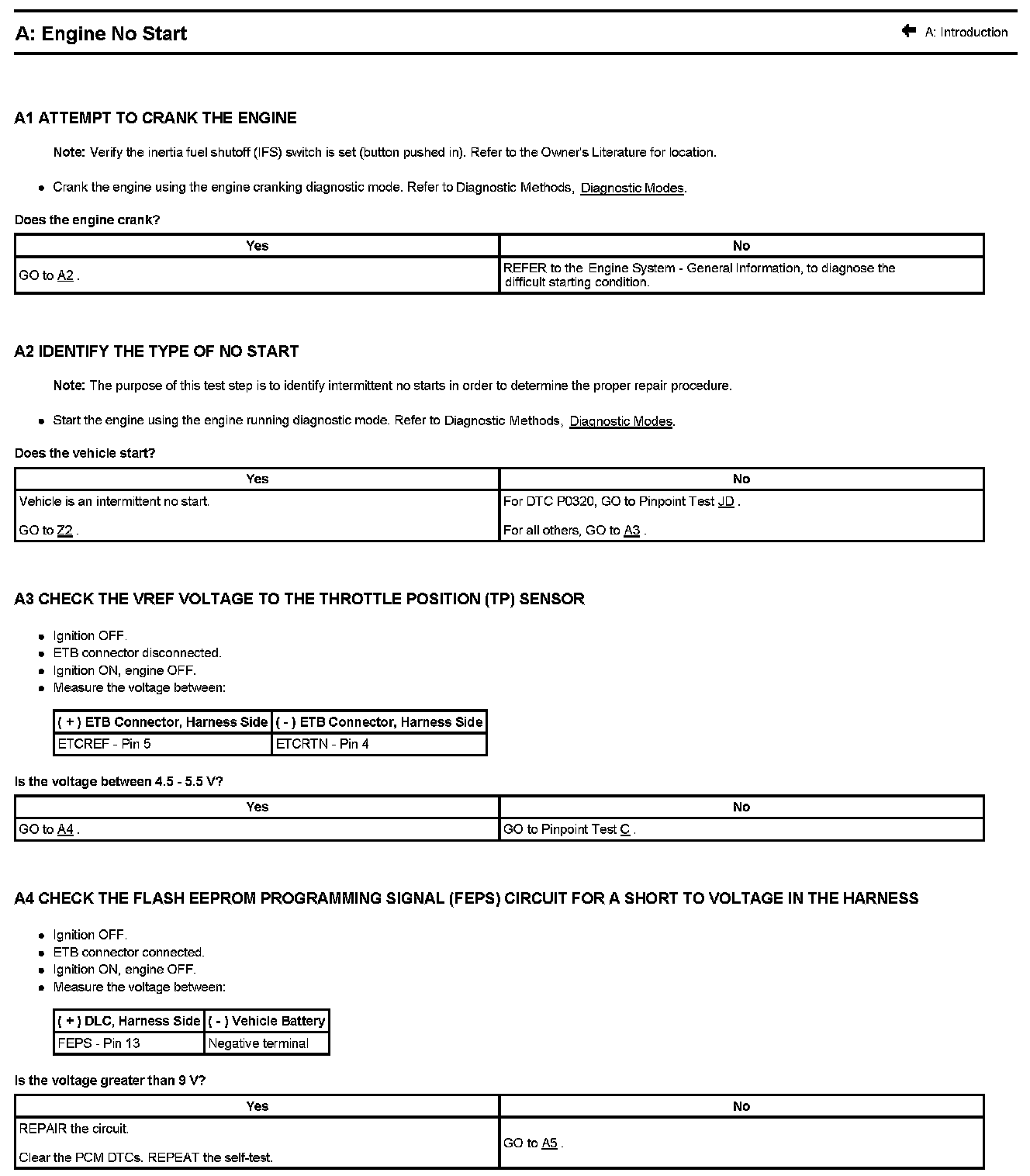

A: ENGINE NO START

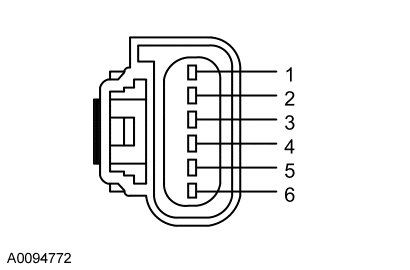

Electronic Throttle Body (ETB) Connector

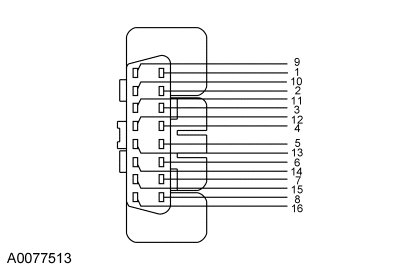

Data Link Connector (DLC)
