Battery Cable: Service and Repair

Battery Cables - 2.0L GTDI

Removal and Installation

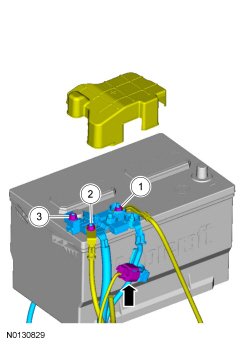

1. .
1. NOTE: Loosen the nut, do not remove.
Tighten to 9 Nm (80 lb-in).

2. Tighten to 9 Nm (80 lb-in).

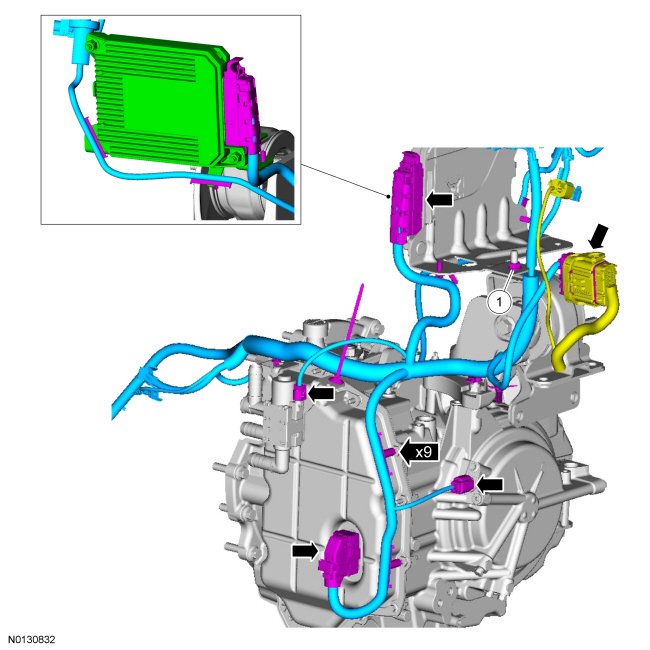

2. .
1. Tighten to 9 Nm (80 lb-in).

2. Tighten to 9 Nm (80 lb-in).

3. NOTE: Loosen the nut, do not remove.
Tighten to 9 Nm (80 lb-in).

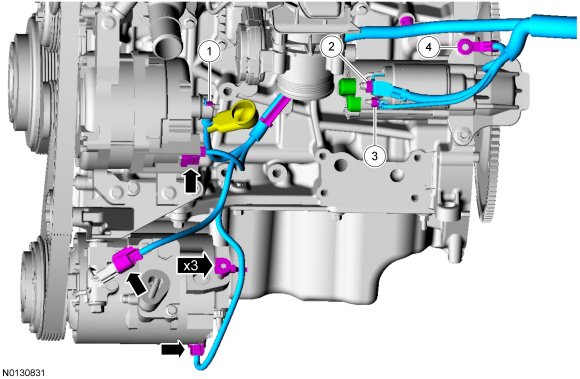

3. .
1. Tighten to 9 Nm (80 lb-in).






4. .
1. Tighten to 17 (150 lb-in).

2. Tighten to 12 (106 lb-in).

3. Tighten to 5 (44 lb-in).

4. Tighten to 17 (150 lb-in).






5. To install, reverse the removal procedure.
