Home >> Ford >> 2012 >> Edge AWD V6-3.7L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test DY: Engine Oil Temperature (EOT) Sensor

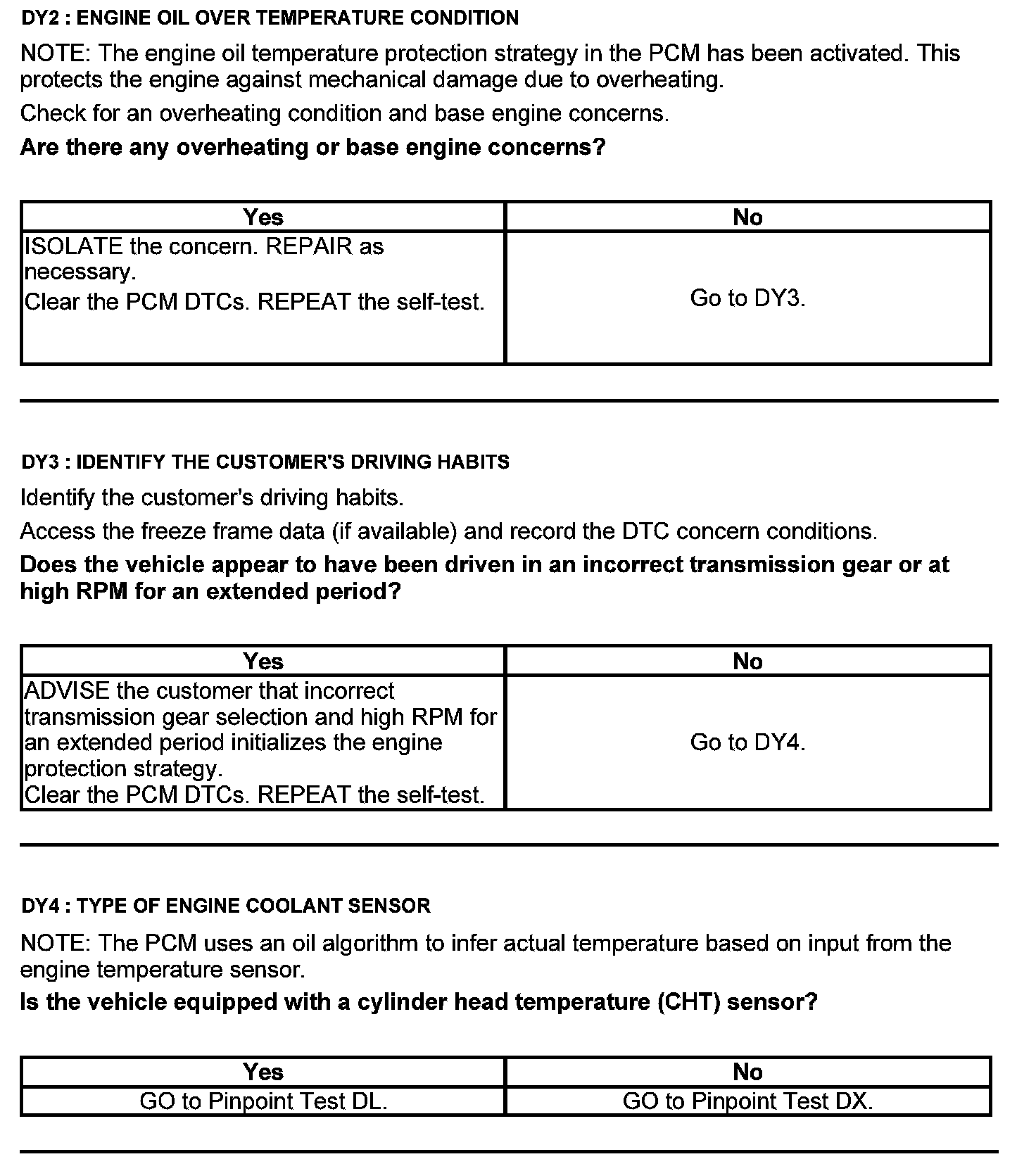

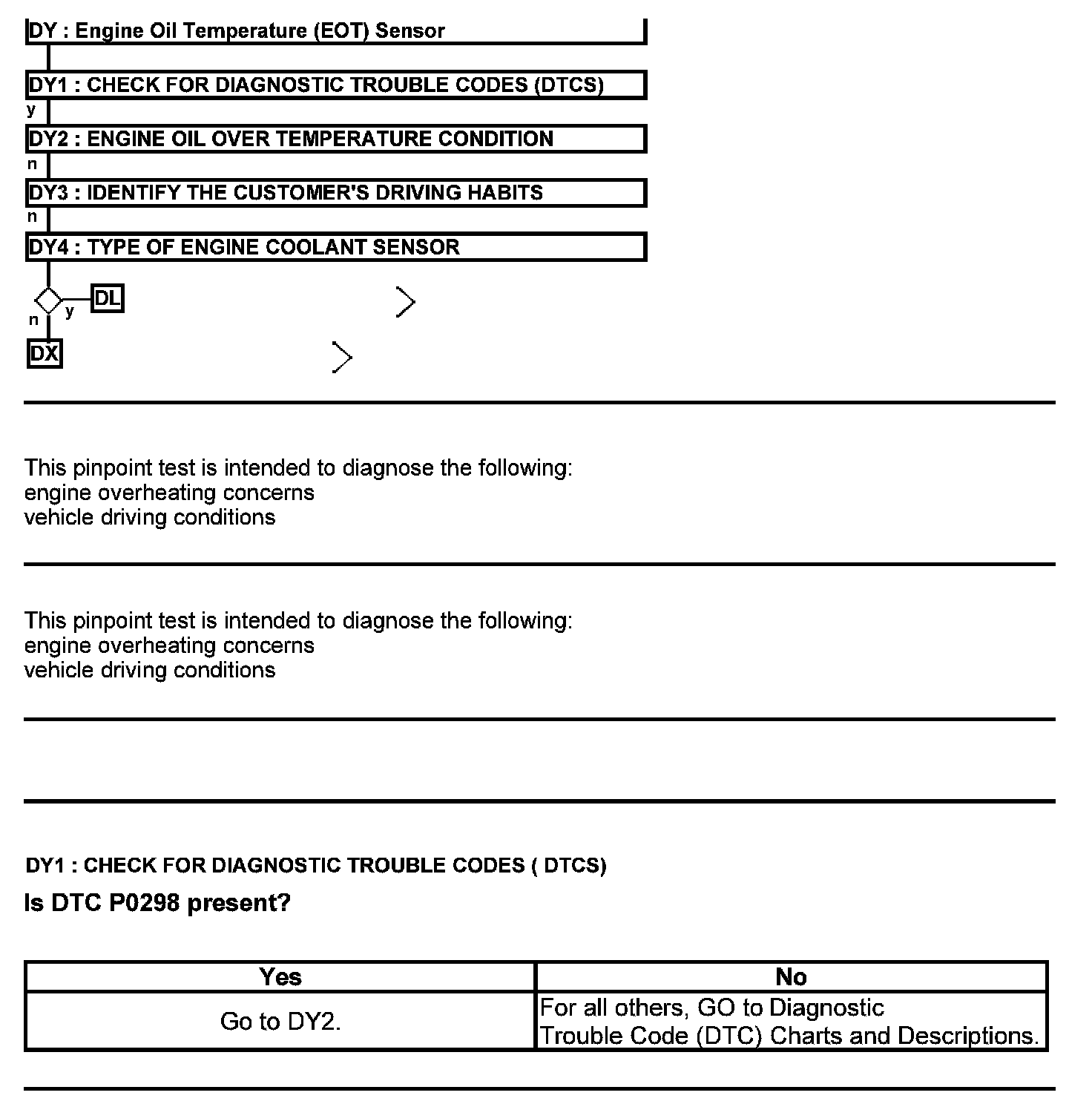

Test DY: Engine Oil Temperature (EOT) Sensor



Engine Oil Temperature (EOT) Sensor
