LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2012
>>
Edge AWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wheel Speed Sensor
>>

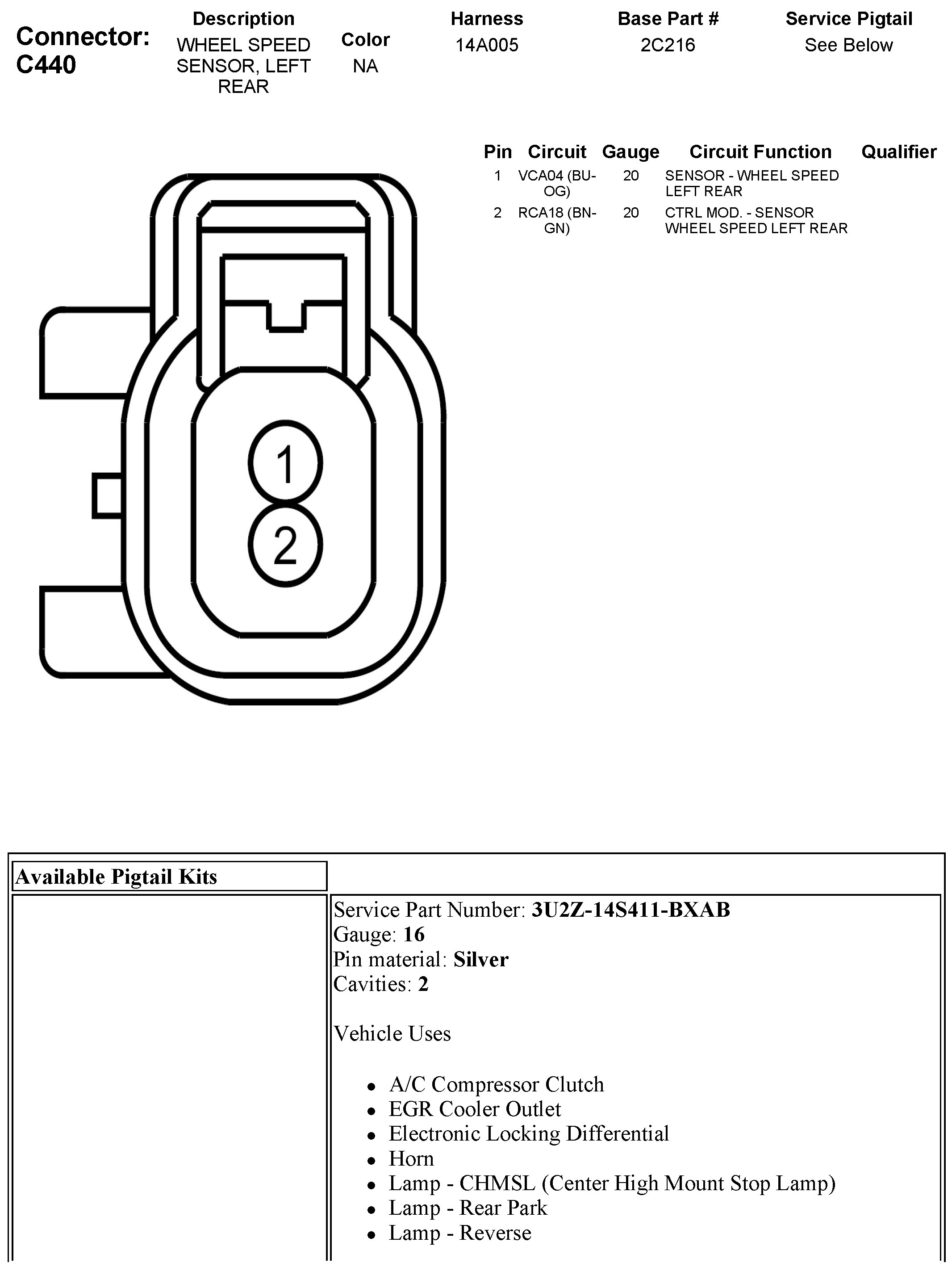

C440 Wheel Speed Sensor, Left Rear
C440 Wheel Speed Sensor, Left Rear
