Home >> Ford >> 2012 >> Edge AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C434-C644 >> C570B

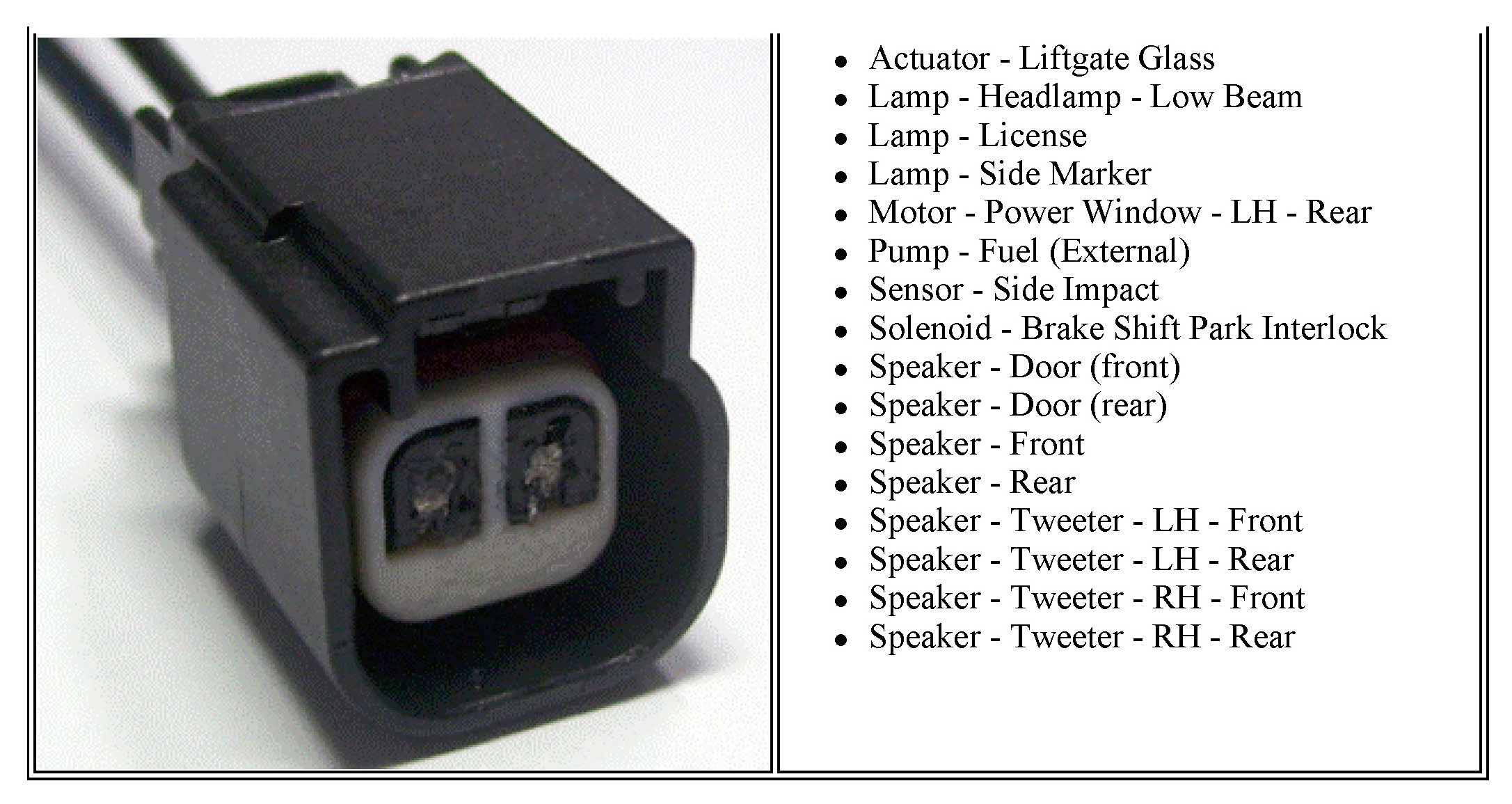

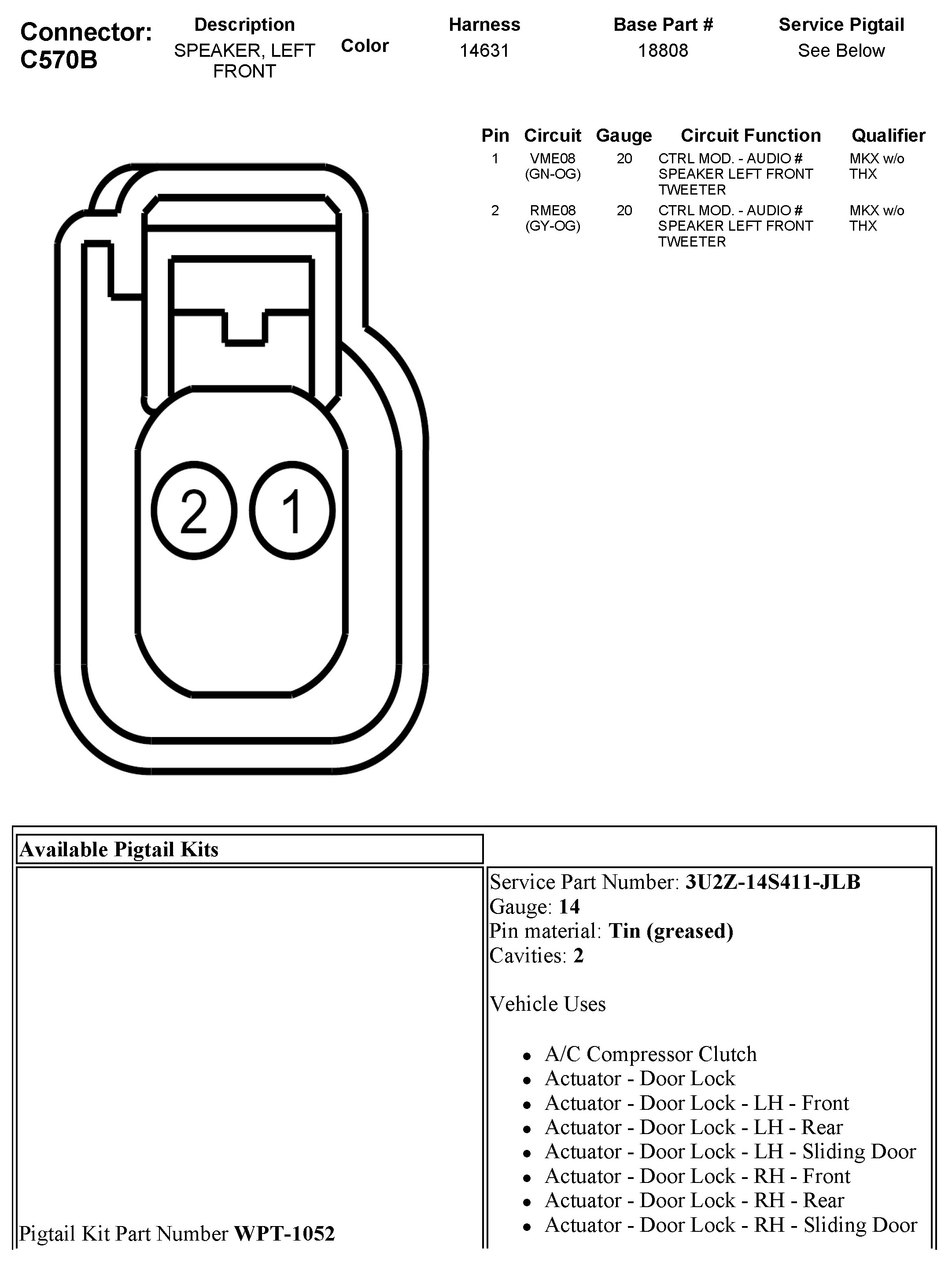

C570B
