Ford
>>
2012
>>
Edge AWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Auxiliary Input / Output Jack, Entertainment System
>>

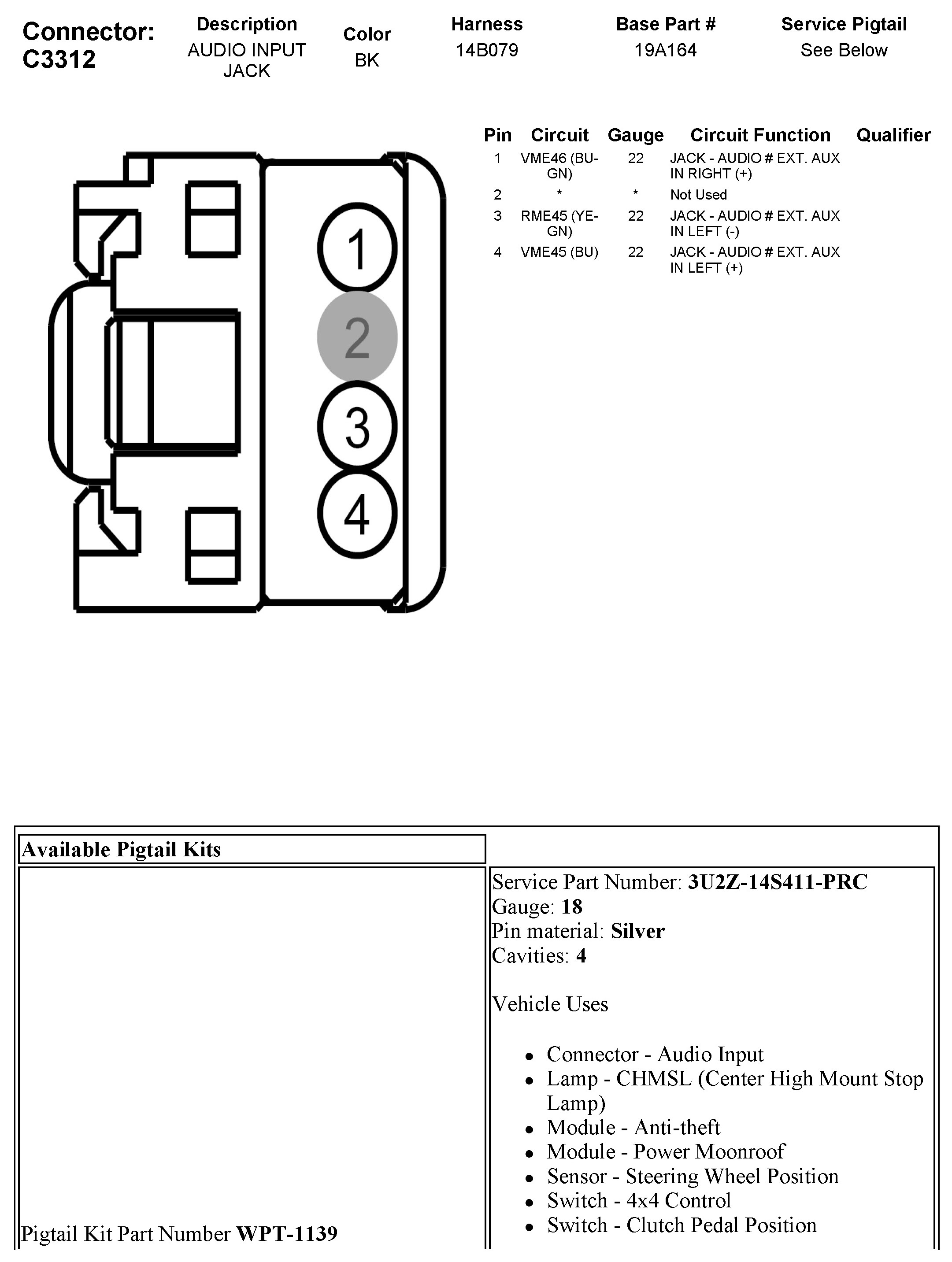

C3312 Audio Input Jack
C3312 Audio Input Jack
