Home >> Ford >> 2012 >> E 150 V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accessories and Optional Equipment >> Communications Control Module >> C2383 Accessory Protocol Interface Module (APIM)

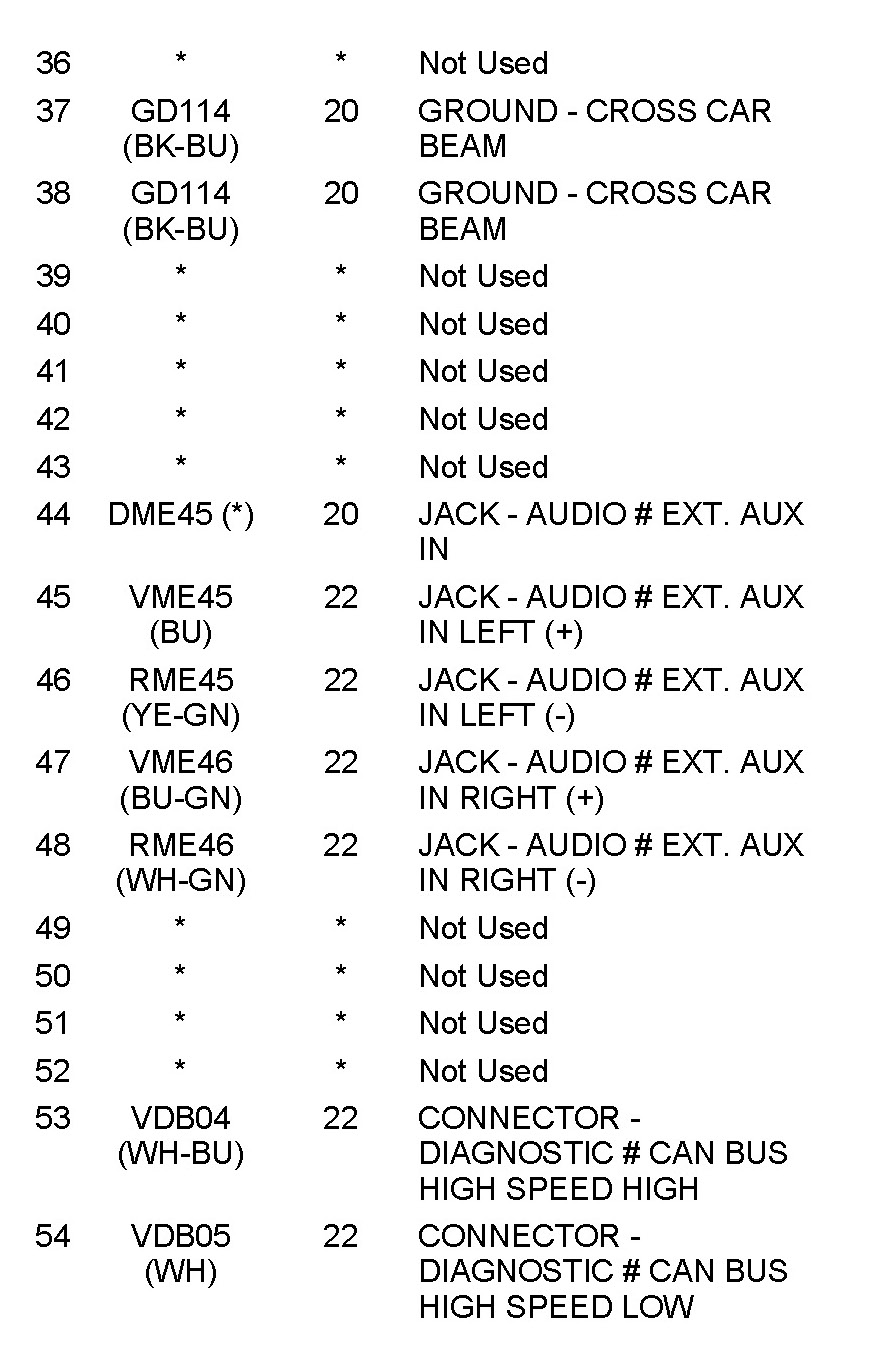

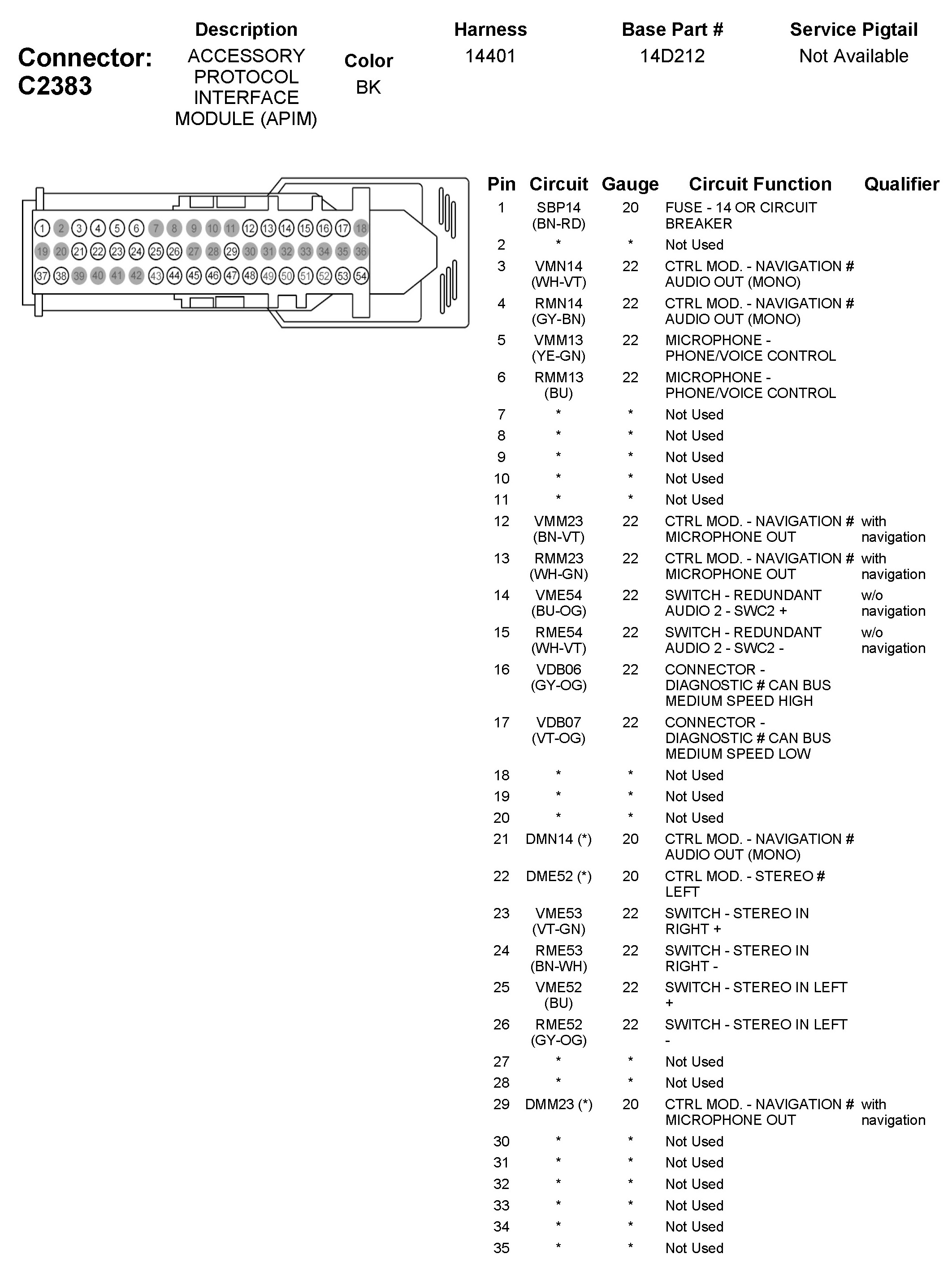

C2383 Accessory Protocol Interface Module (APIM)
