Engine Lubrication Components - Exploded View




Engine Lubrication Components - Exploded View

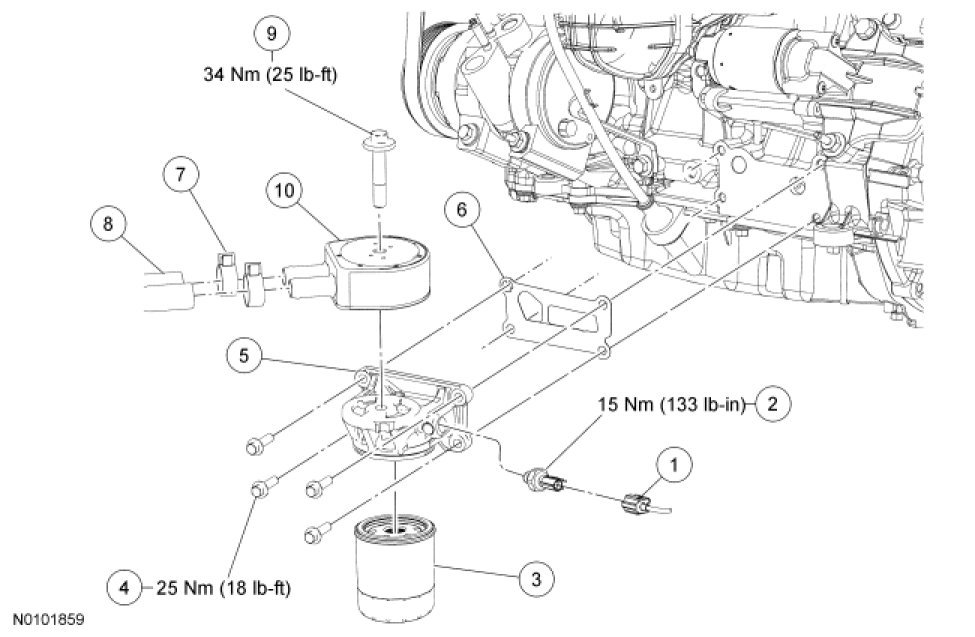

Oil Filter, Oil Filter Adapter, Oil Cooler and Engine Oil Pressure (EOP) Switch

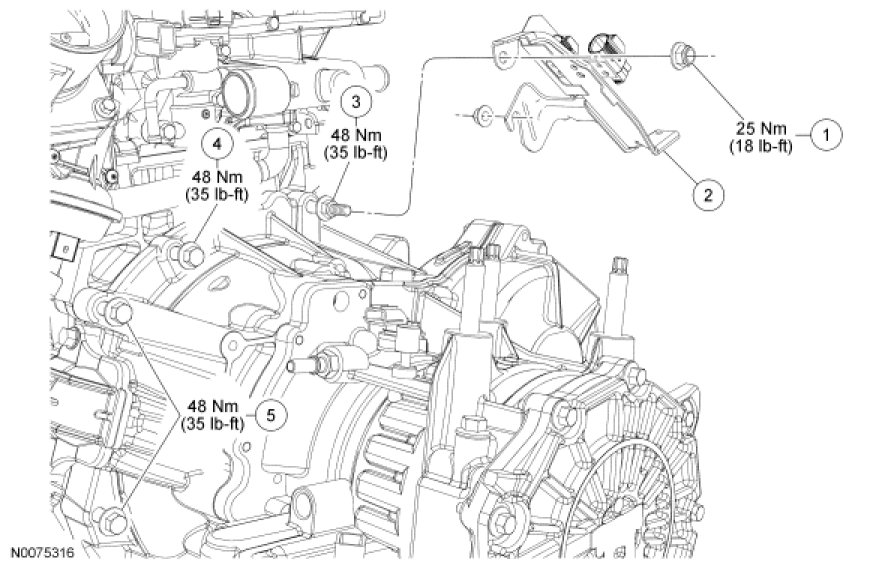

Transaxle Bolts for Oil Pan Removal

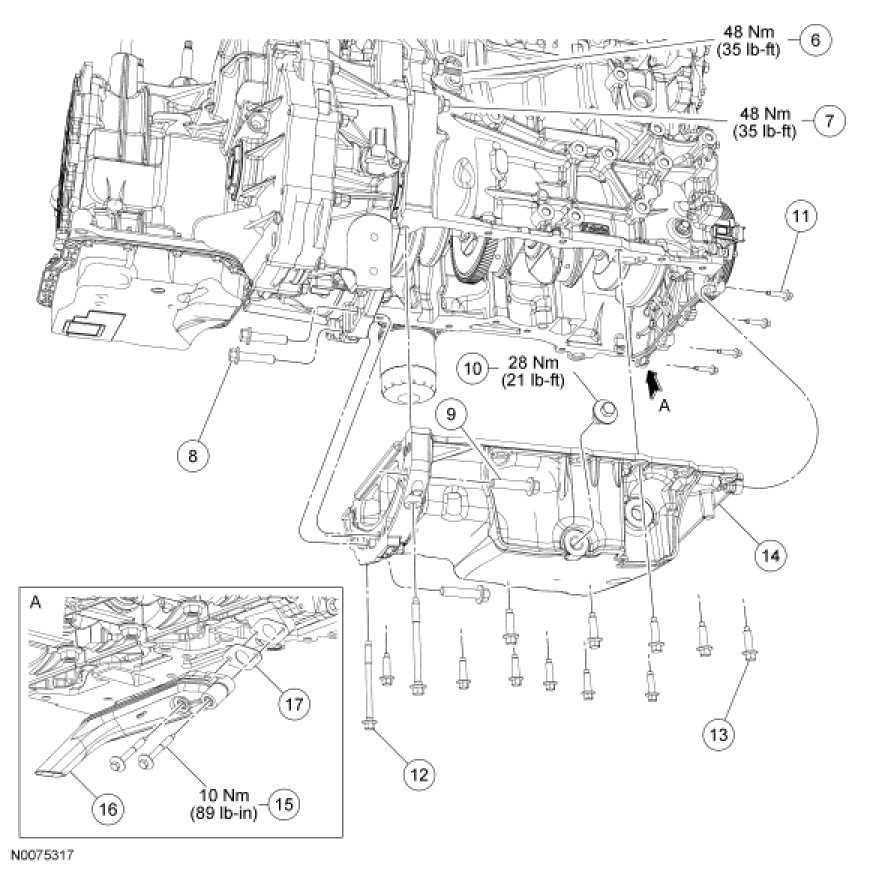

Oil Pan, Oil Pump Screen and Pickup Tube

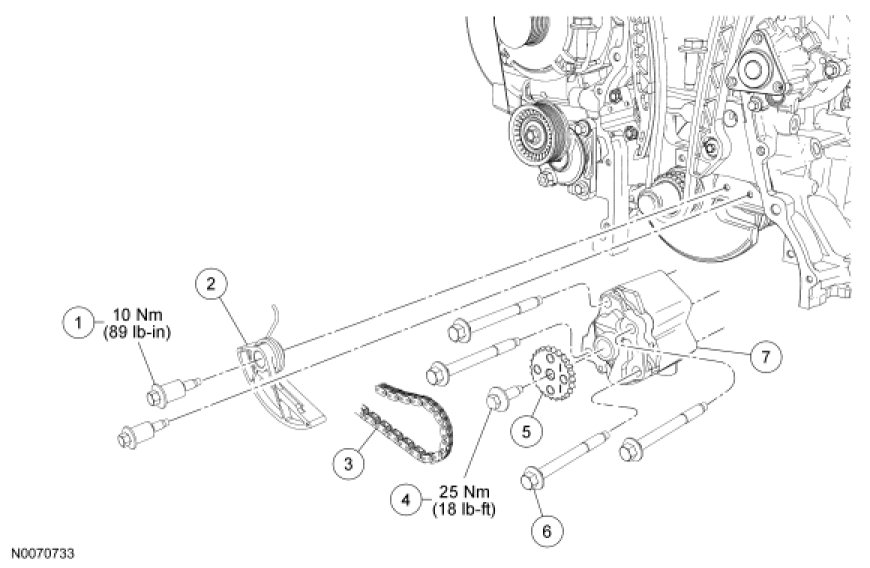

Oil Pump
