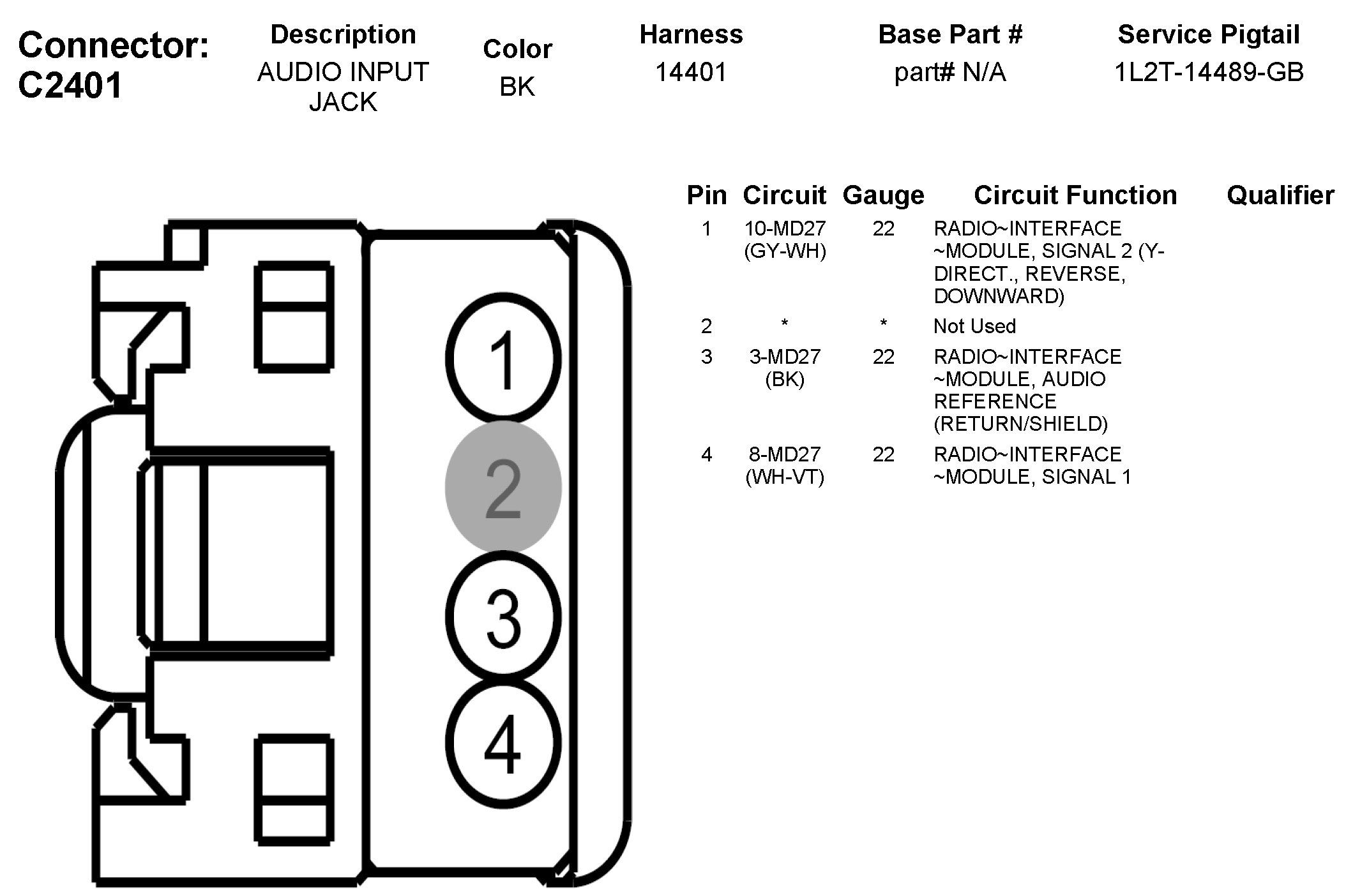

Auxiliary Input / Output Jack, Entertainment System
Auxiliary Input / Output Jack, Entertainment System
