Home >> Ford >> 2011 >> Taurus SE >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Global Positioning System Module Connector - C2398

Global Positioning System Module Connector - C2398

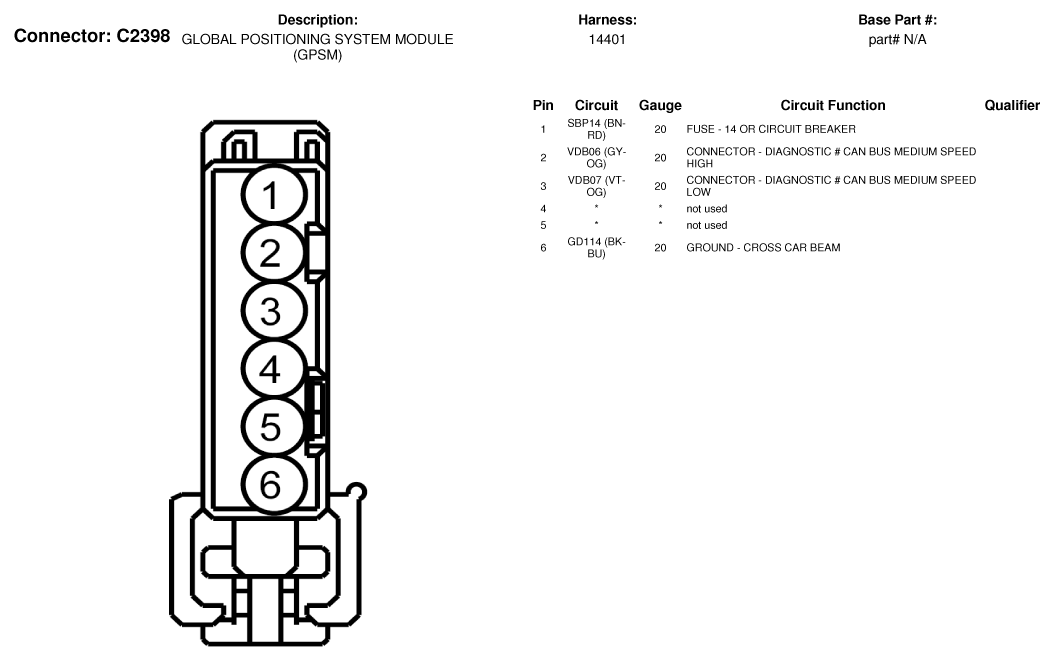

Fig 1: Global Positioning System Module Connector End View (C2398)

G07340143

Courtesy of FORD MOTOR CO.
