Cruise Control Module Connector - C1582

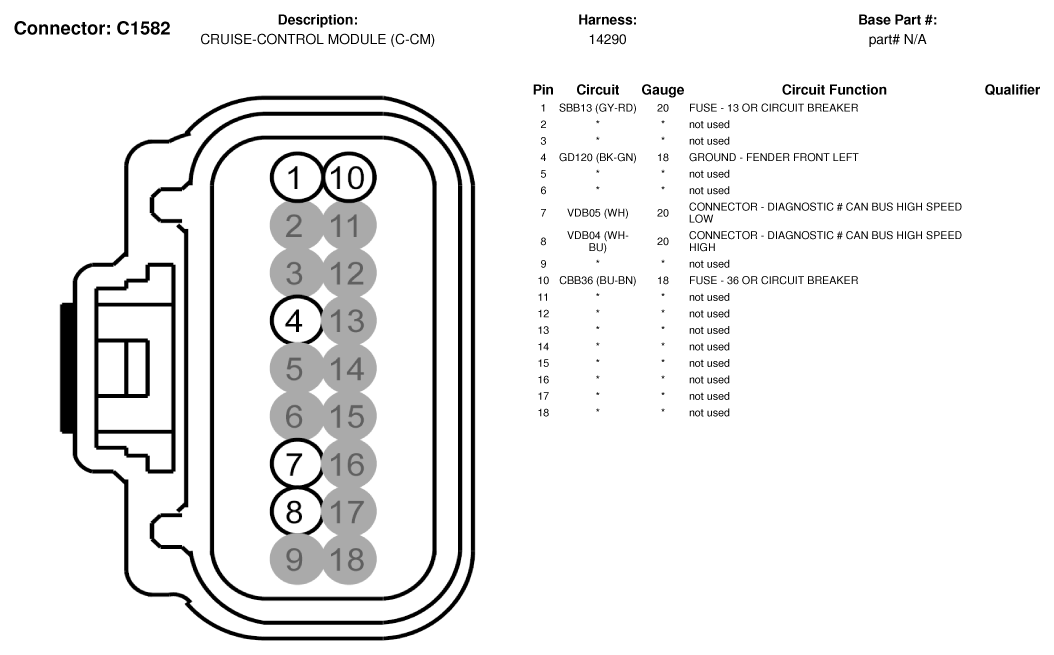

Fig 1: Cruise Control Module Connector End View (C1582)

G07340094

Courtesy of FORD MOTOR CO.
