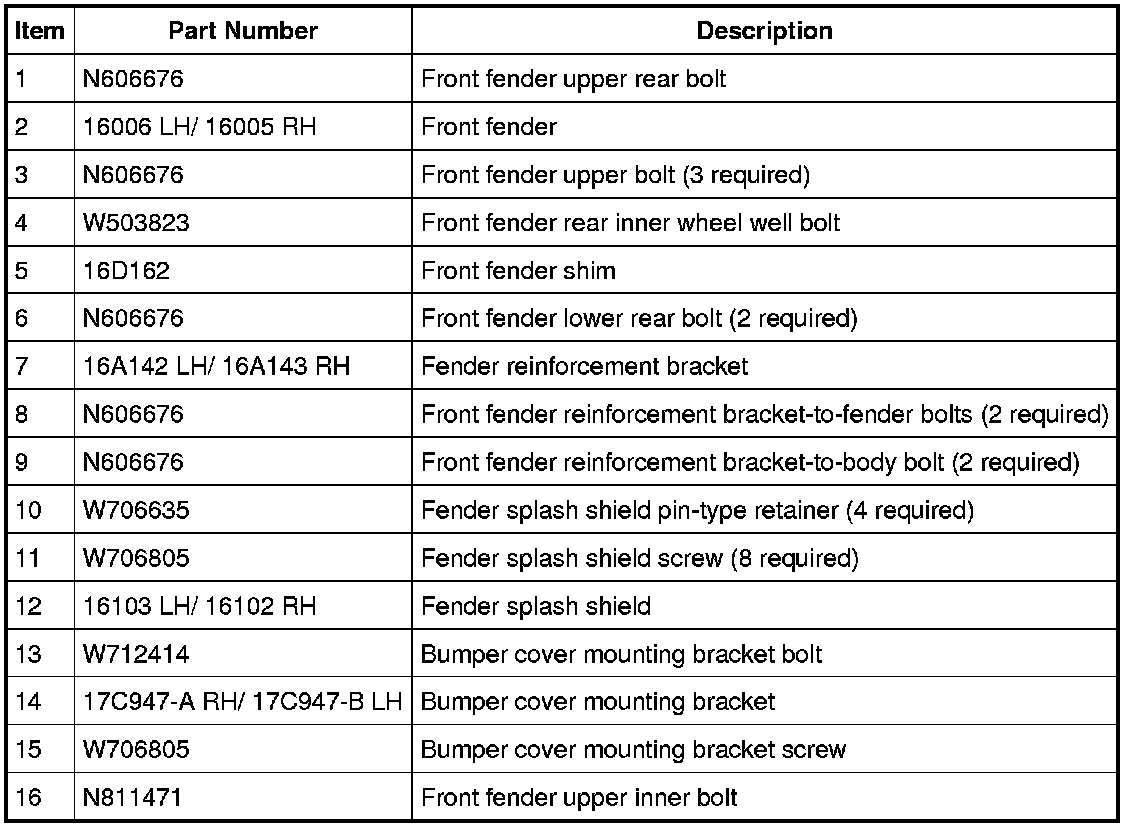

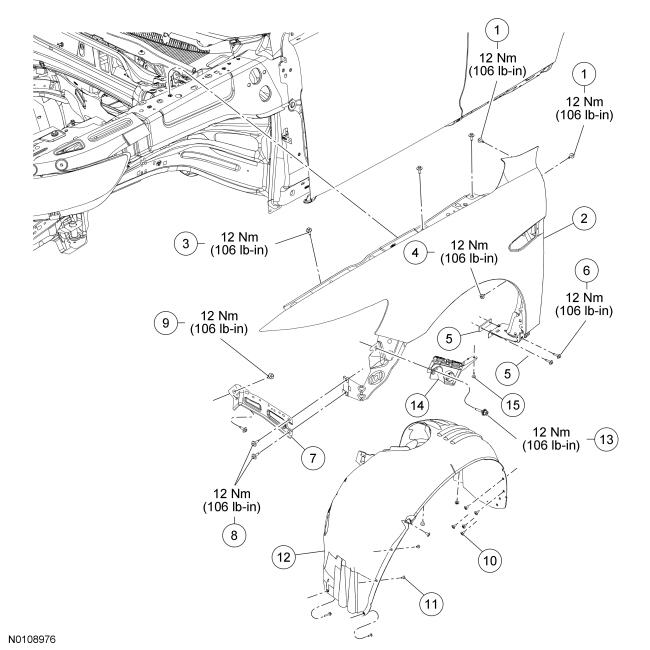

Front End Body Panels - Exploded View
Front End Body Panels - Exploded View
Front End Body Panels - Exploded View
