Fuel Tank and Filler Pipe - Exploded View




Fuel Tank and Filler Pipe - Exploded View

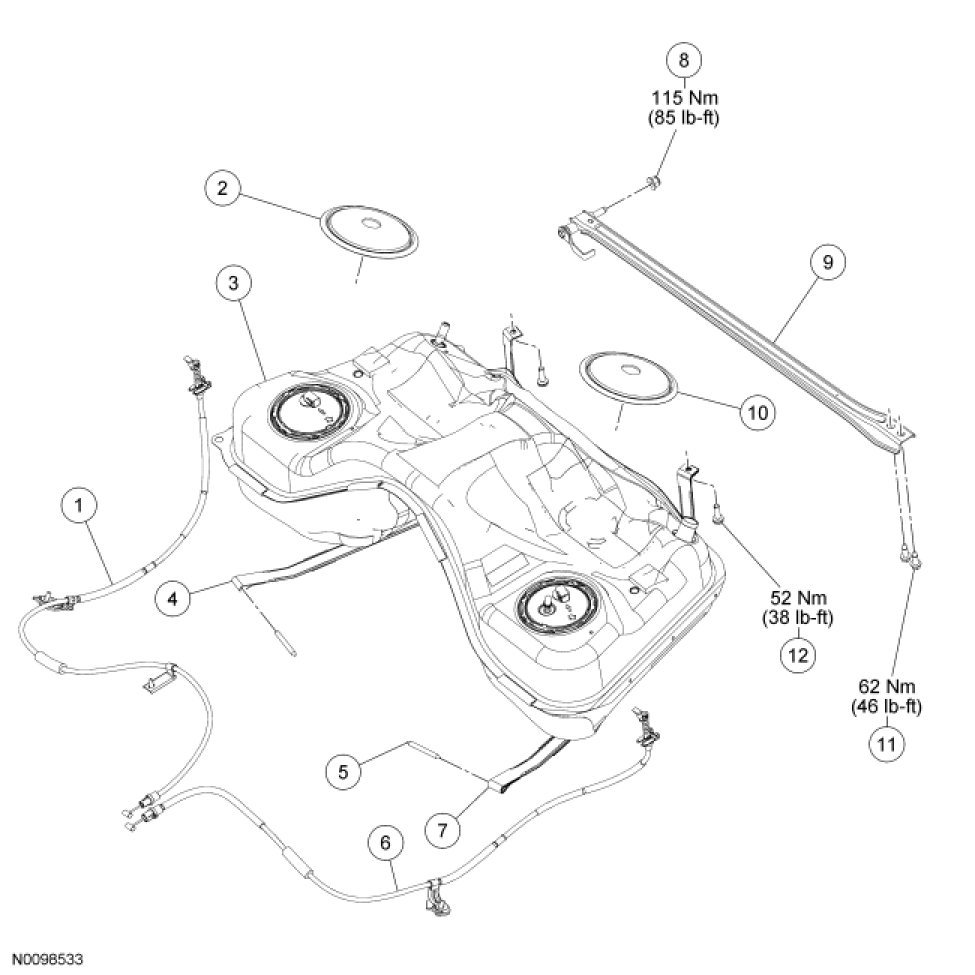

Fuel Tank Supports, Access Covers, Brake Cables, Lateral Stiffener Bar and Fasteners - 3.7L and 5.0L (4V) vehicles

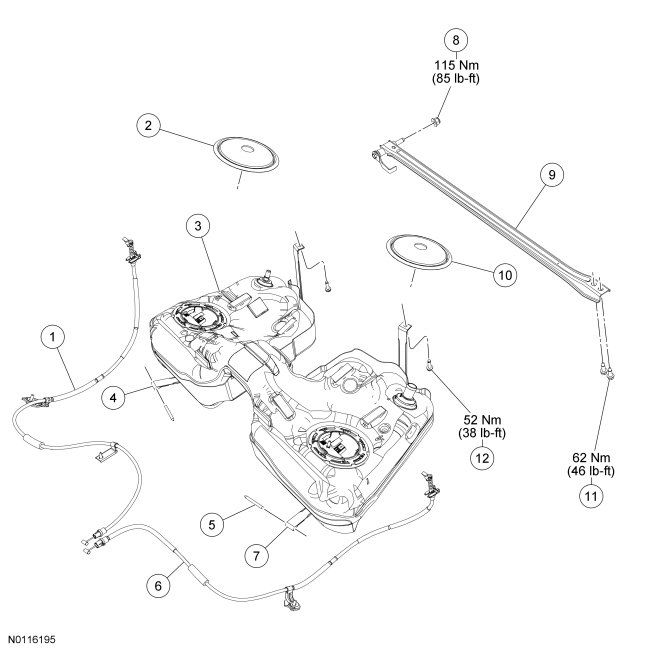

Fuel Tank Supports, Access Covers, Brake Cables, Lateral Stiffener Bar and Fasteners - 5.4L (4V) vehicles

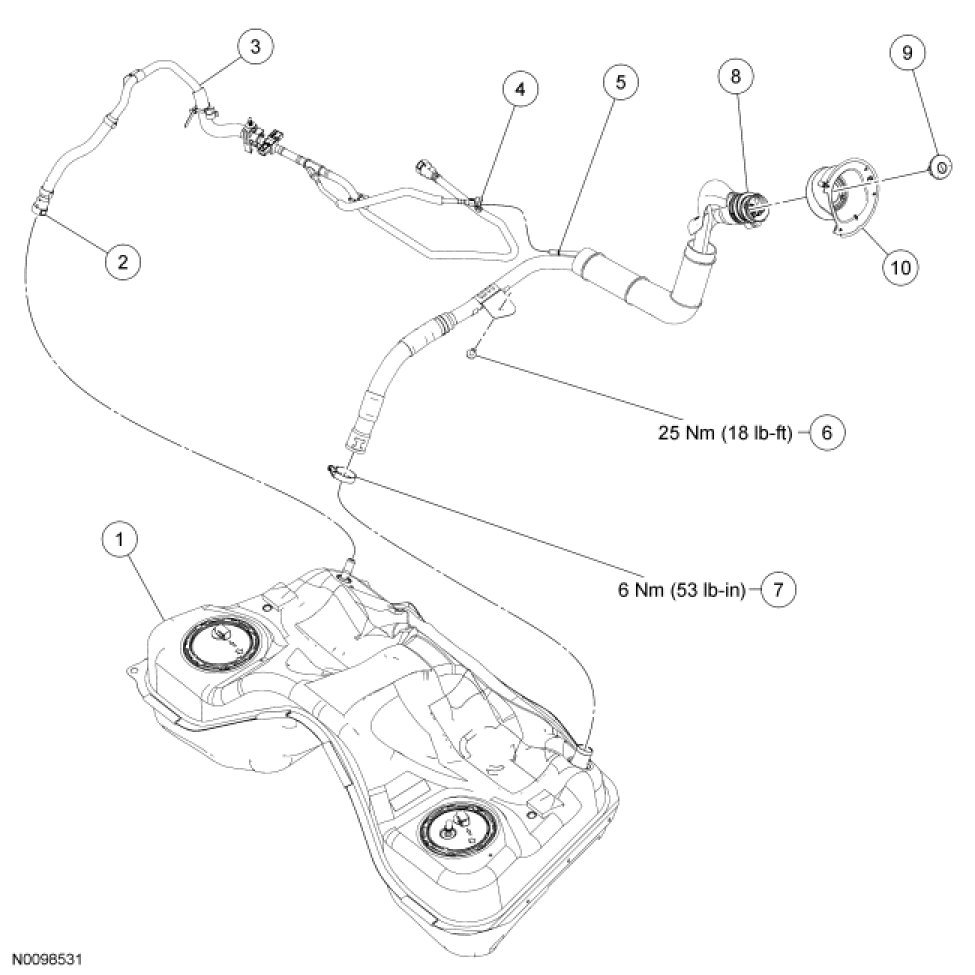

Fuel Tank and Filler Pipe Assembly - 3.7L and 5.0L (4V) vehicles

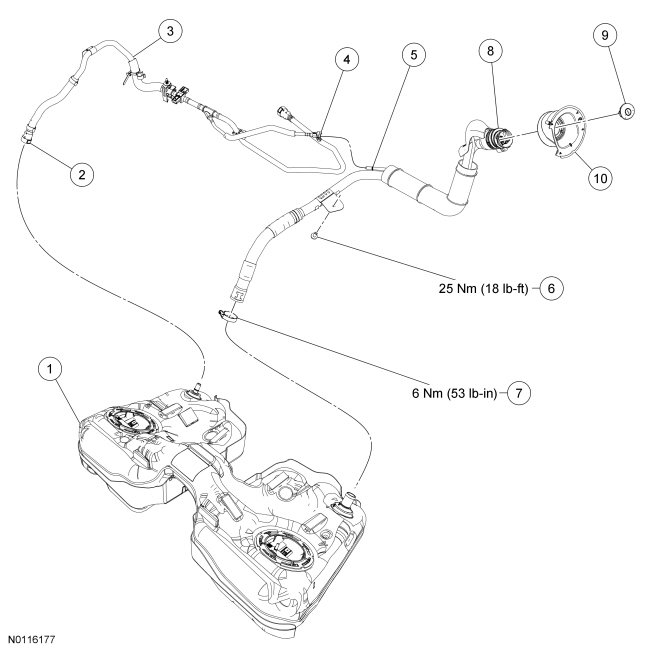

Fuel Tank and Filler Pipe Assembly - 5.4L (4V) vehicles
