Power Window Switch
>>

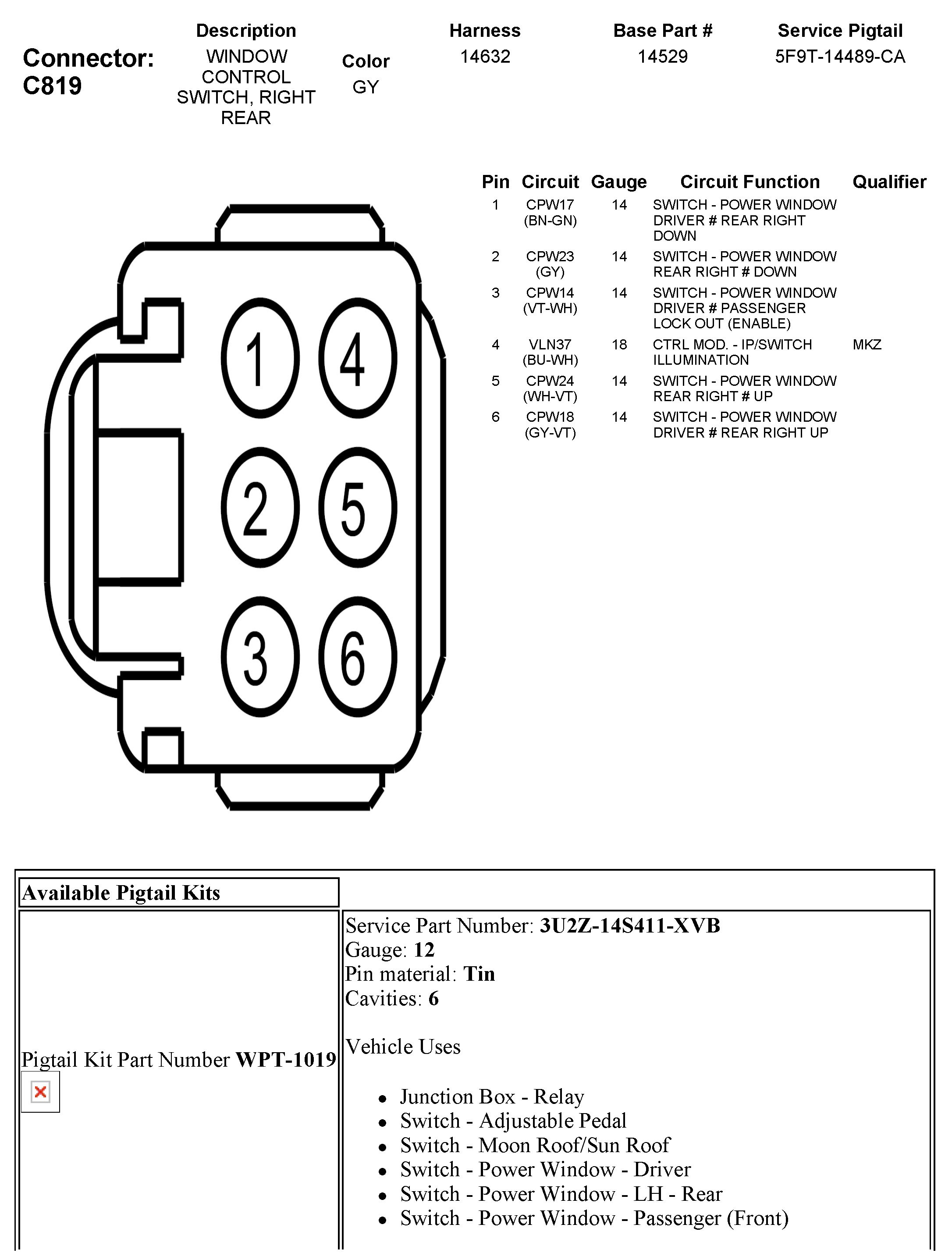

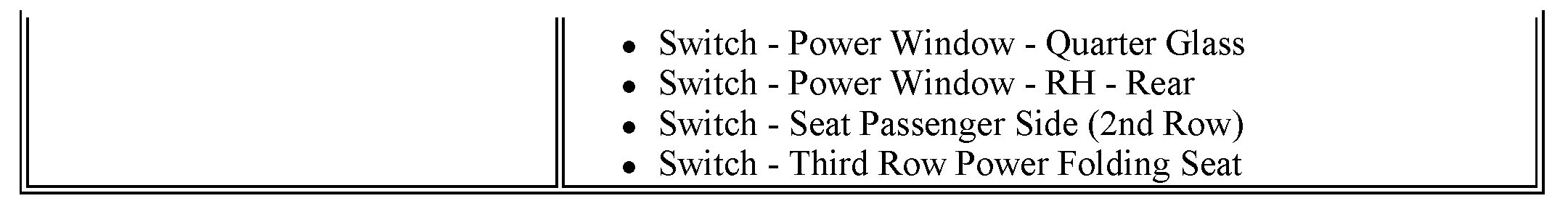

C819 Window Control Switch, Right Rear
C819 Window Control Switch, Right Rear
