Memory Set Switch

Memory Set Switch

Removal and Installation

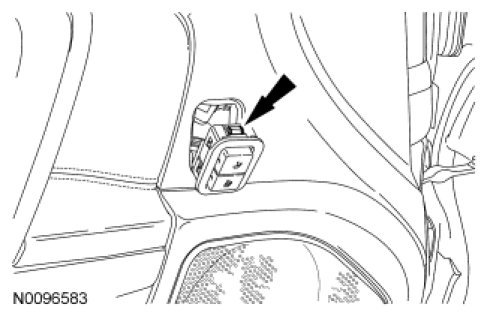

1. Release the memory SET switch bezel tab at the top and separate from the door panel.





2. Disconnect the electrical connector, release the 4 tabs and remove the memory SET switch.

3. To install, reverse the removal procedure.
