Test JH: Engine Speed Signal
Test JH: Engine Speed Signal
PINPOINT TEST JH: ENGINE SPEED SIGNAL

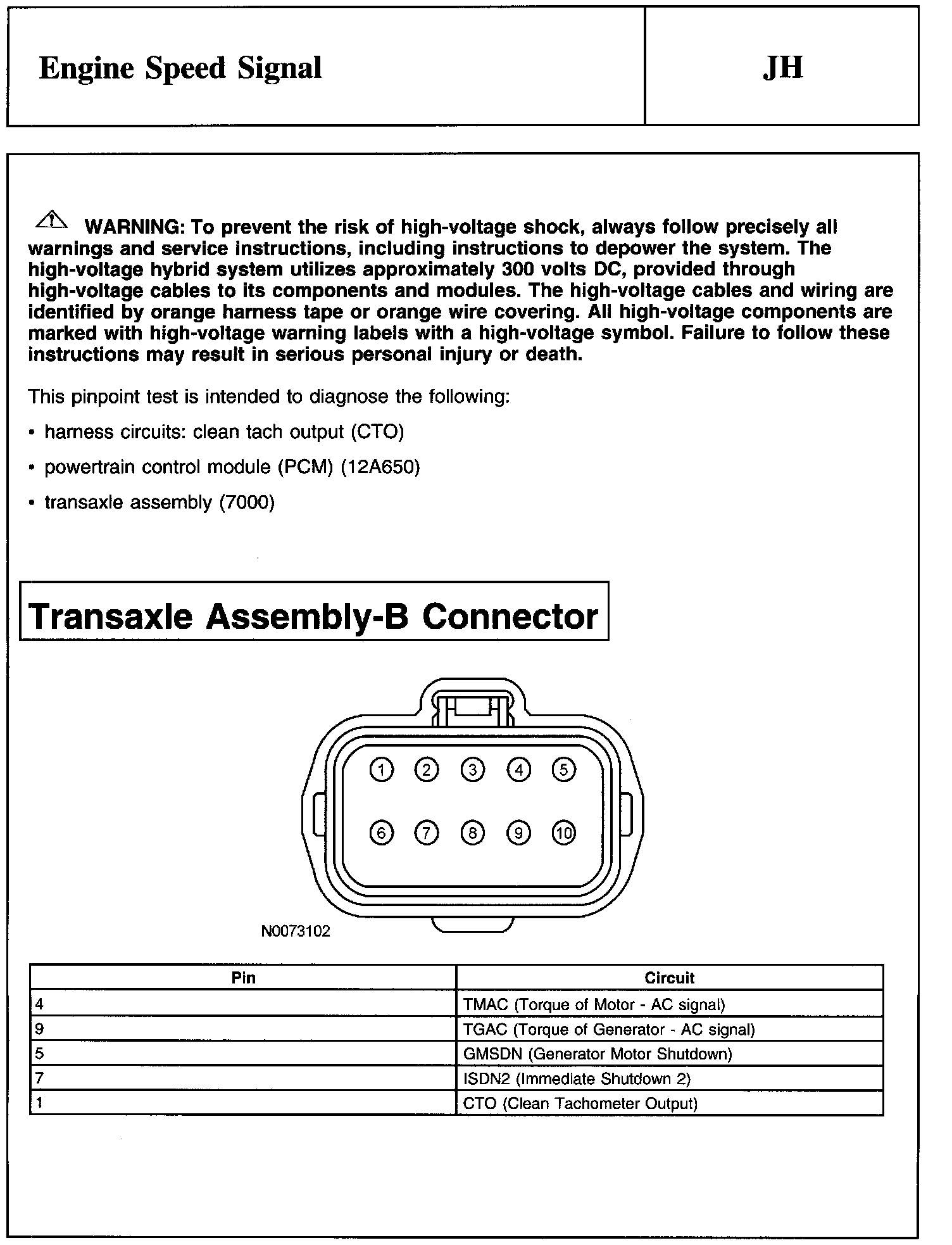

Warning And Transaxle Assembly-B Connector:

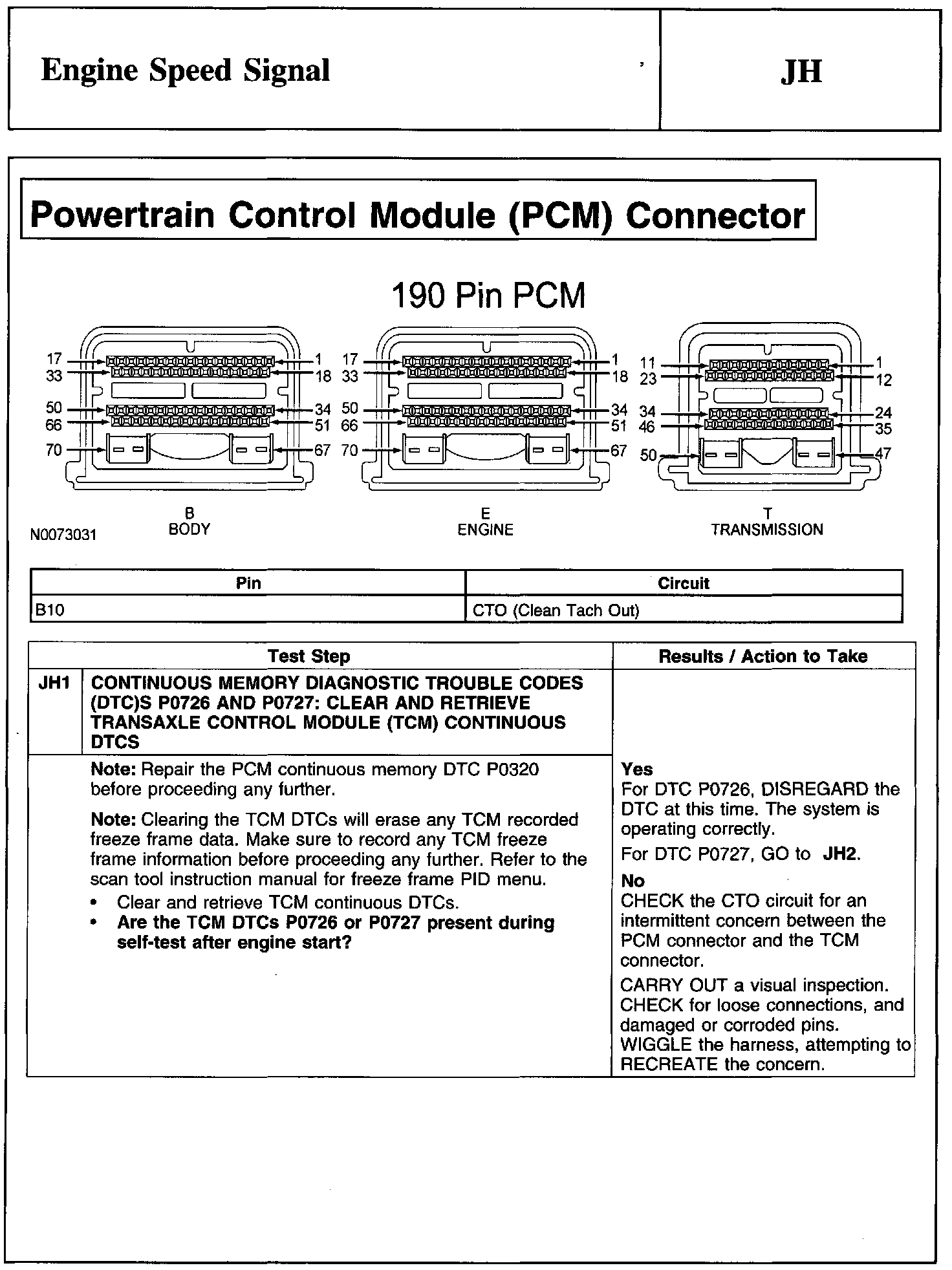

JH1:

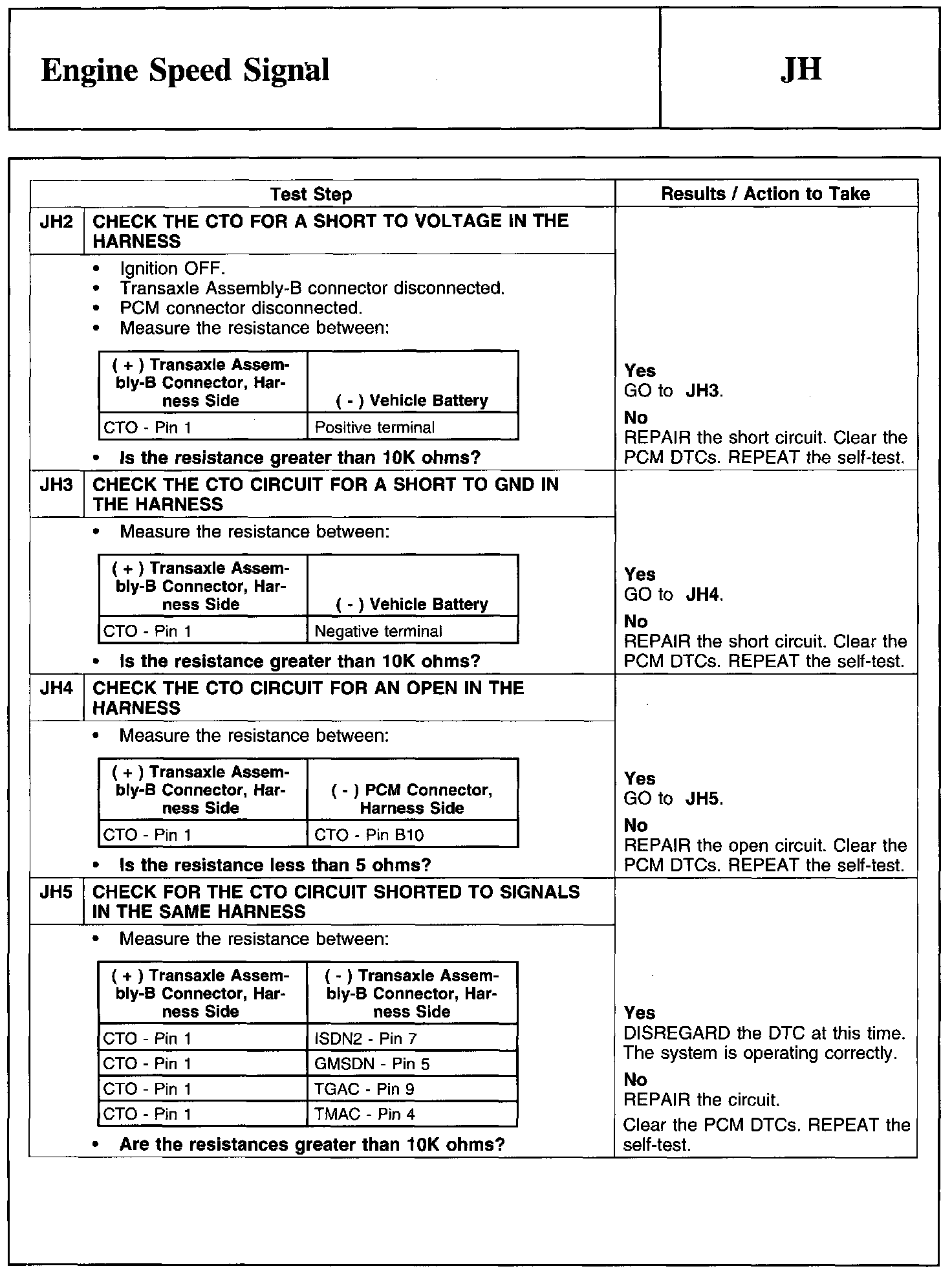

JH2-JH5:
