Test DR: Camshaft Position (CMP) Sensor
Test DR: Camshaft Position (CMP) Sensor
PINPOINT TEST DR: CAMSHAFT POSITION (CMP) SENSOR

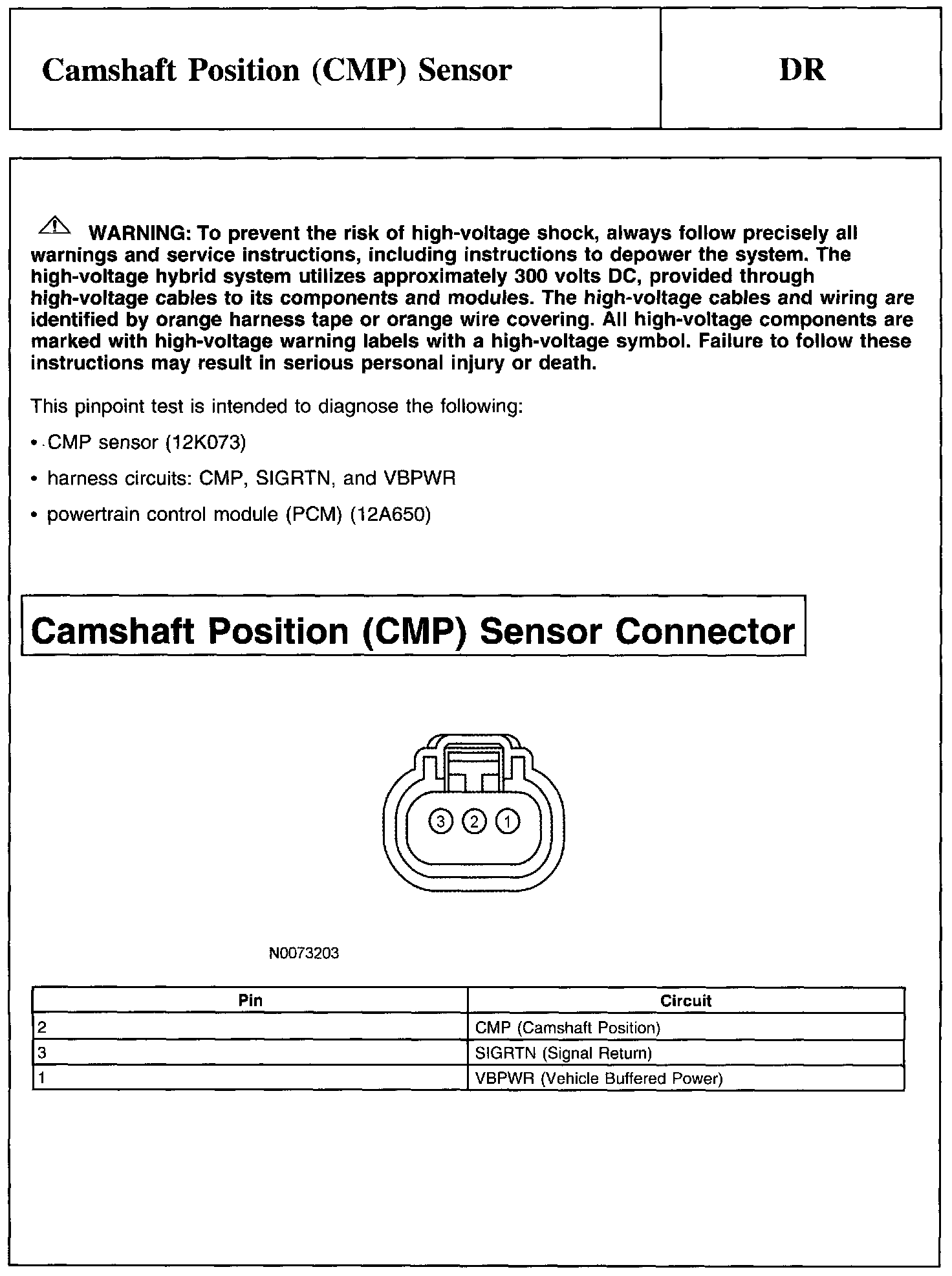

Warning And Camshaft Position (CMP) Sensor Connector:

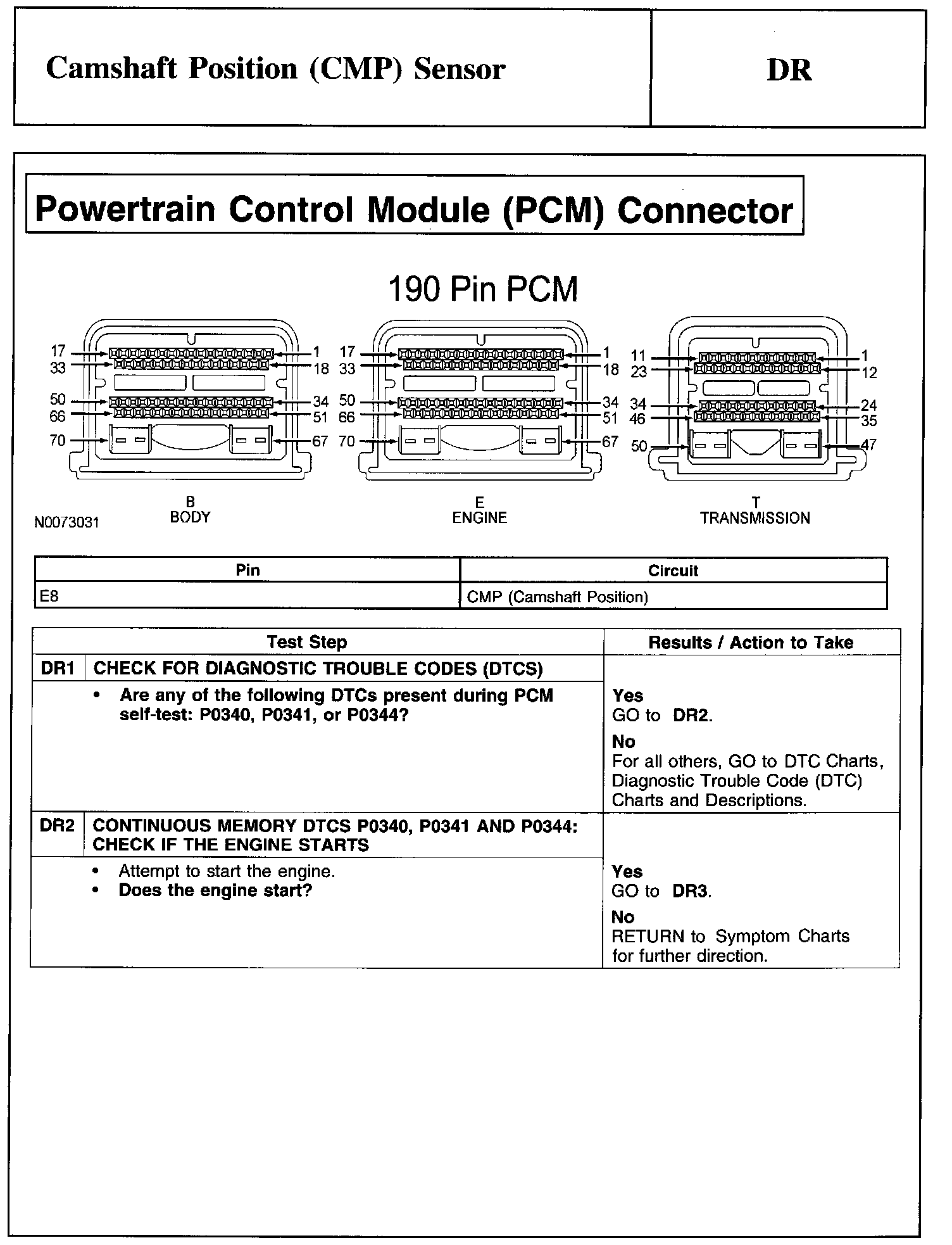

DR1-DR2:

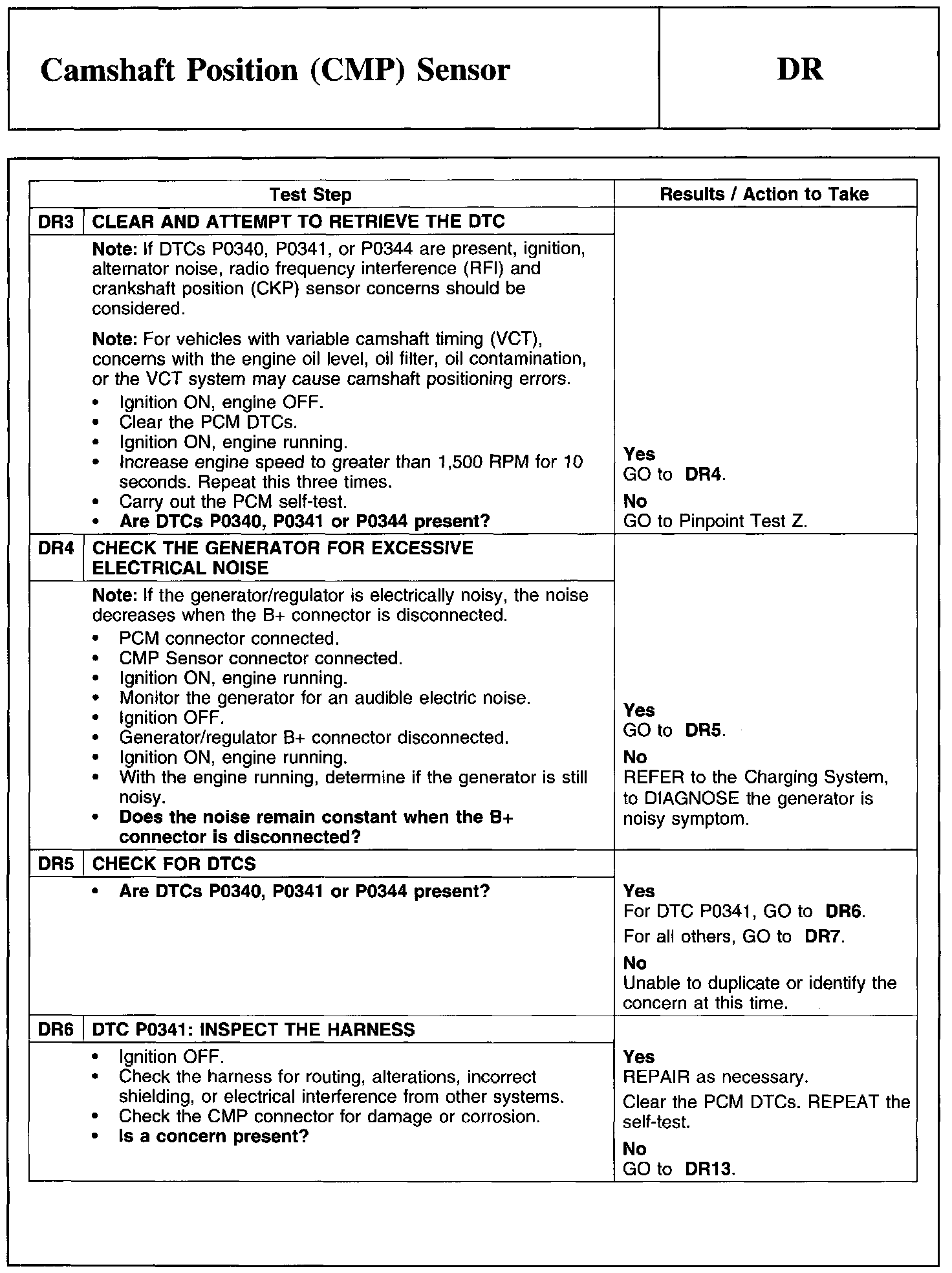

DR3-DR6:

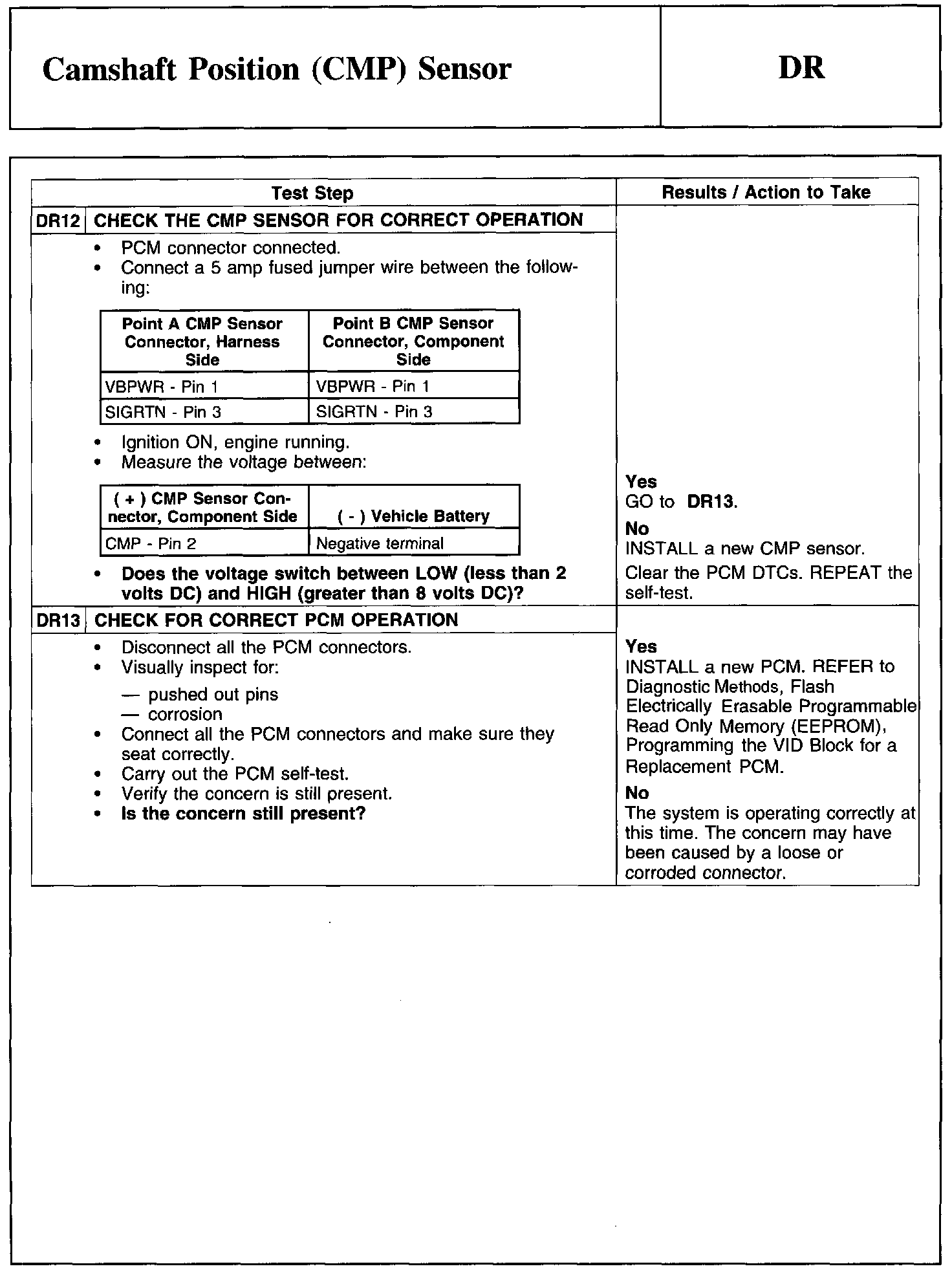

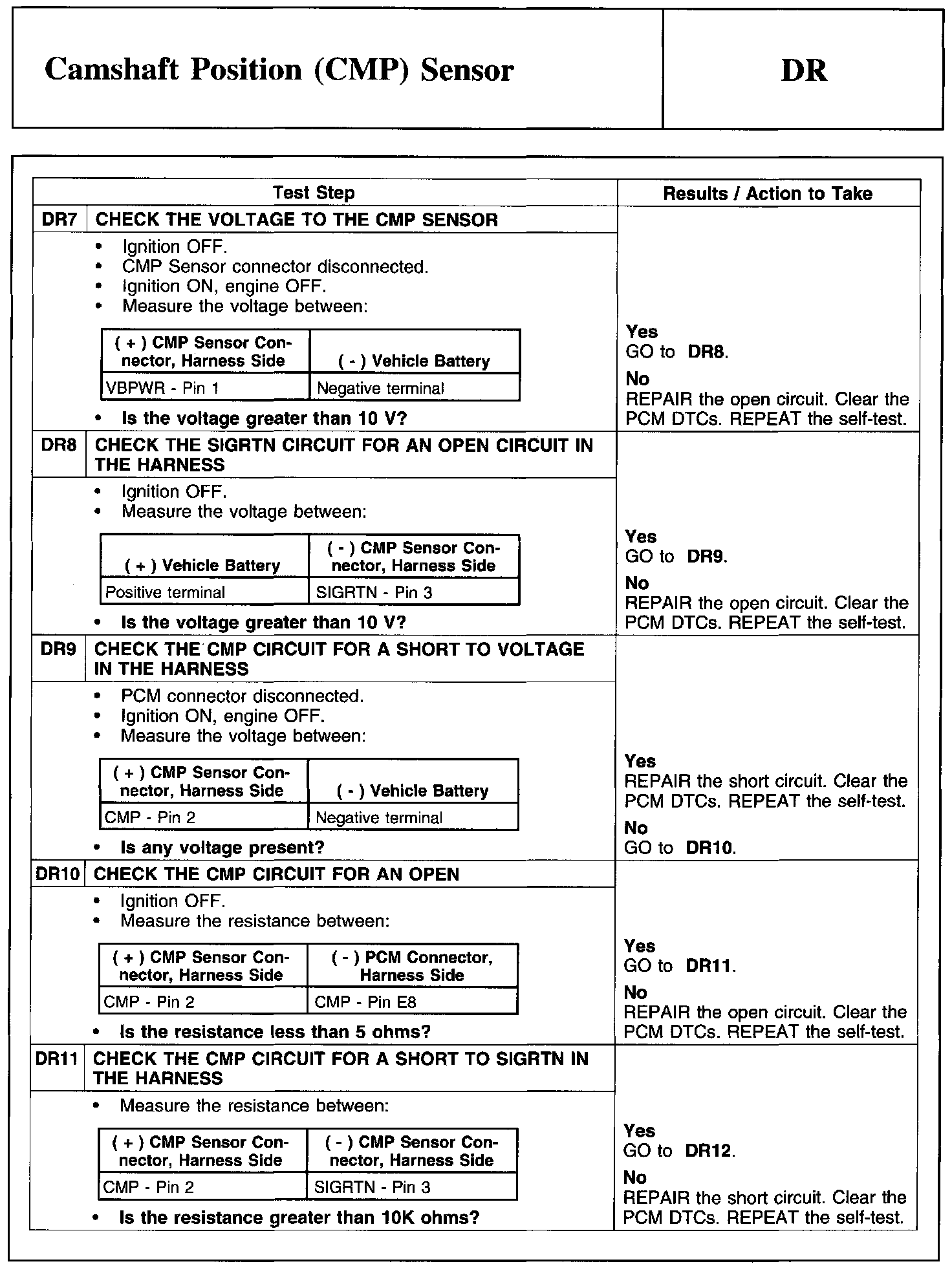

DR7-DR11:
DR12-DR13:
