Aisin AW21

Turbine Shaft Speed (TSS) Sensor

Removal

1. Remove the main control valve body. For additional information, refer to Main Control Valve Body Exploded Views.

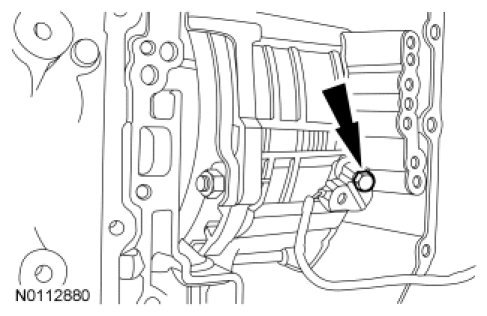

2. Remove the bolt and the Turbine Shaft Speed (TSS) sensor.





Installation

1. Lubricate the O-ring with clean automatic transmission fluid and install the TSS sensor.
- Tighten to 12 Nm (106 lb-in).





2. Install the main control valve body. For additional information, refer to Main Control Valve Body Exploded Views.
