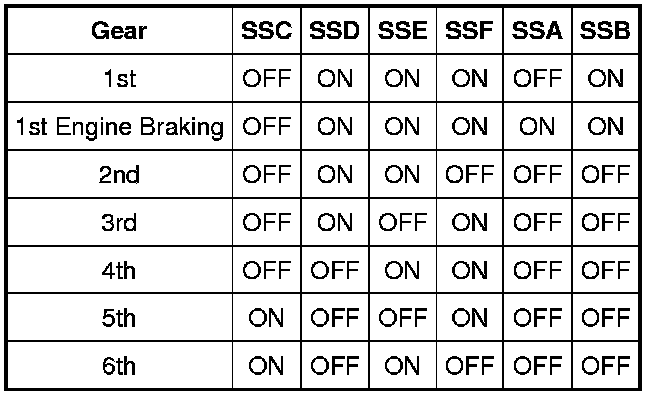

Home >> Ford >> 2011 >> Fusion AWD V6-3.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Aisin AW21 >> Gear and Solenoid Operation Chart
