LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2011
>>
Focus L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>

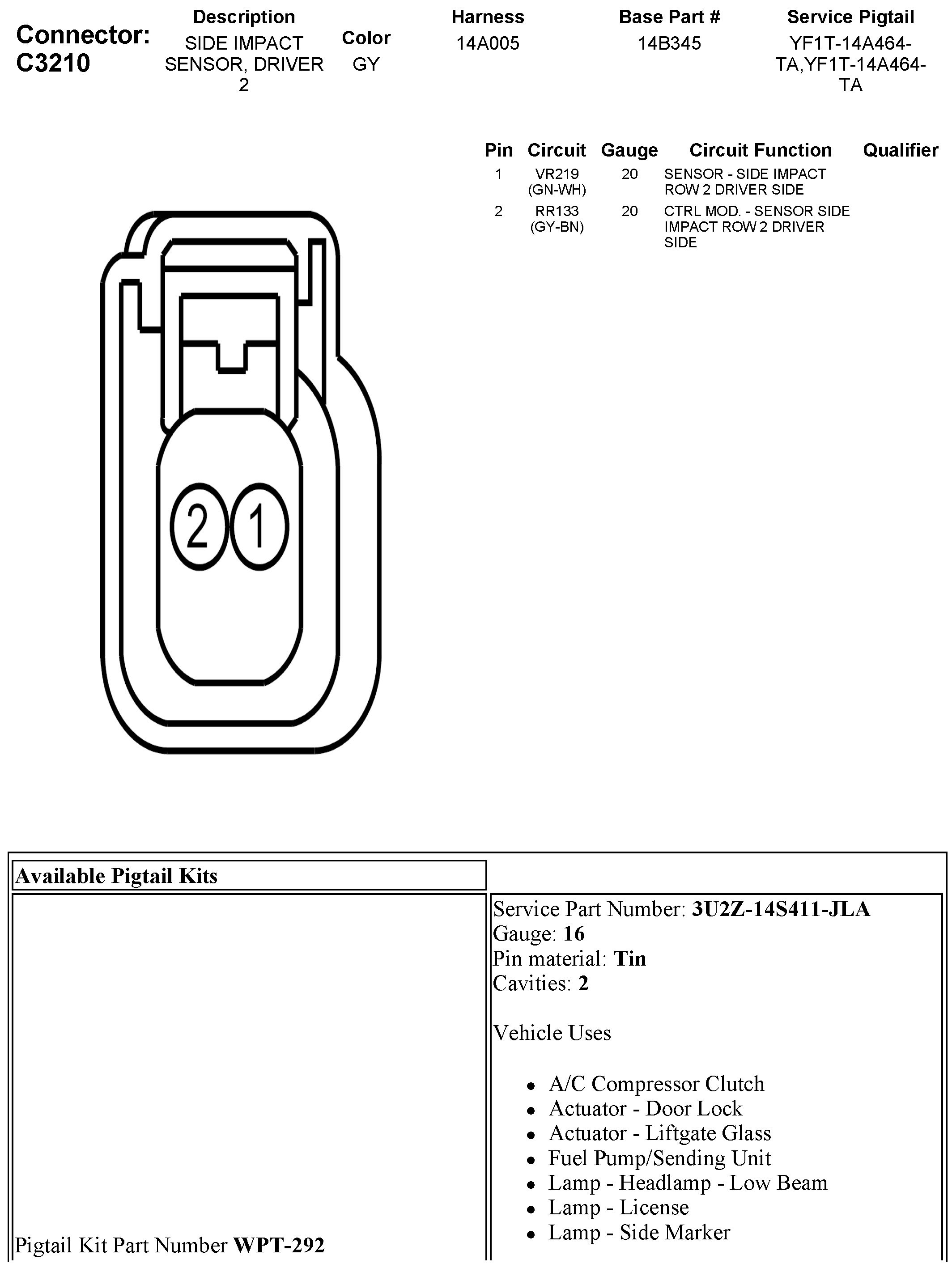

C3210 Side Impact Sensor, Driver 2
C3210 Side Impact Sensor, Driver 2
