Home >> Ford >> 2011 >> Fiesta L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Speed Sensor, ASMT >> C164 Input Shaft Speed Sensor 2

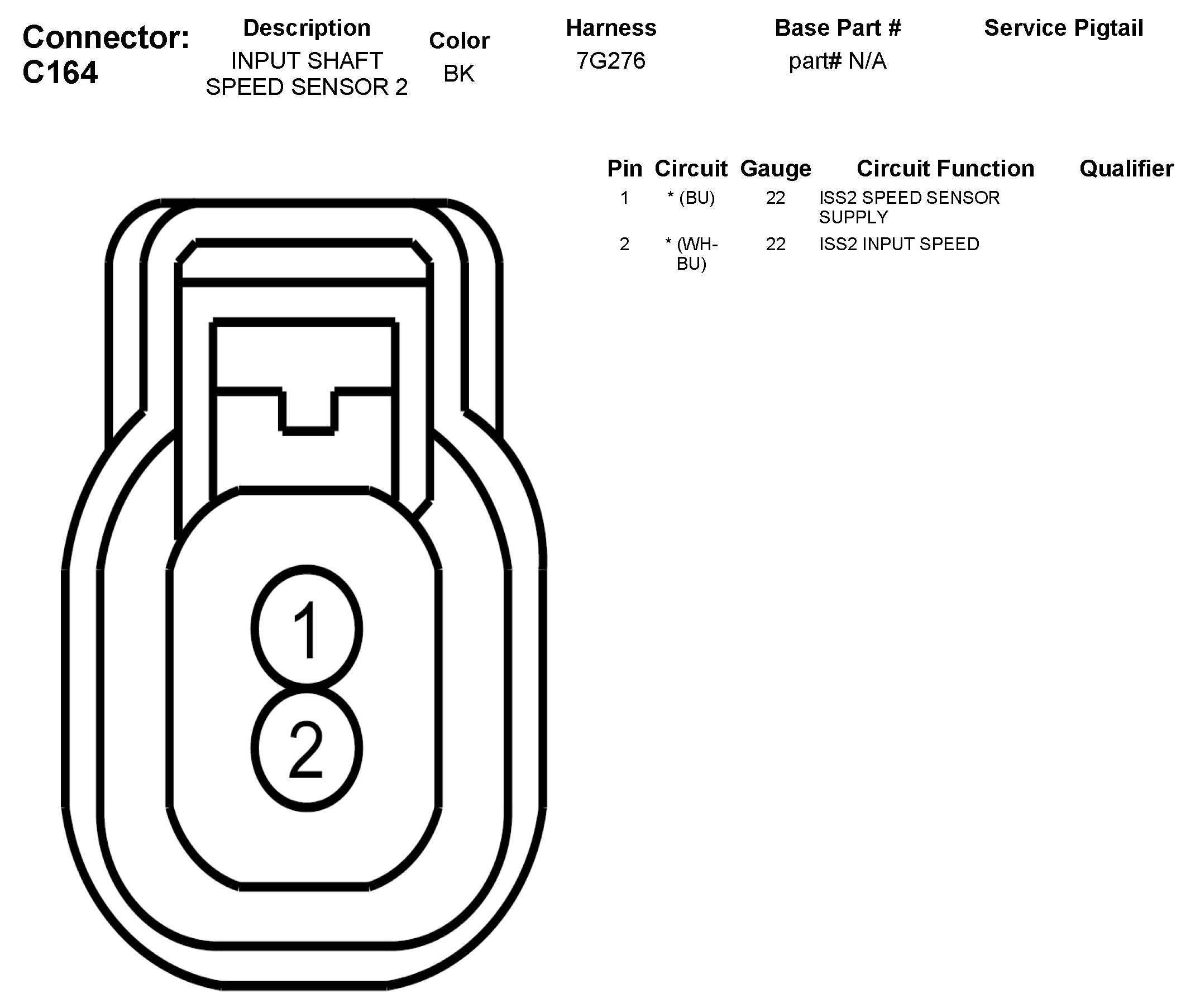

C164 Input Shaft Speed Sensor 2
