Transmission - Disassembled Views
Transmission - Disassembled Views
Transmission
Disassembled Views

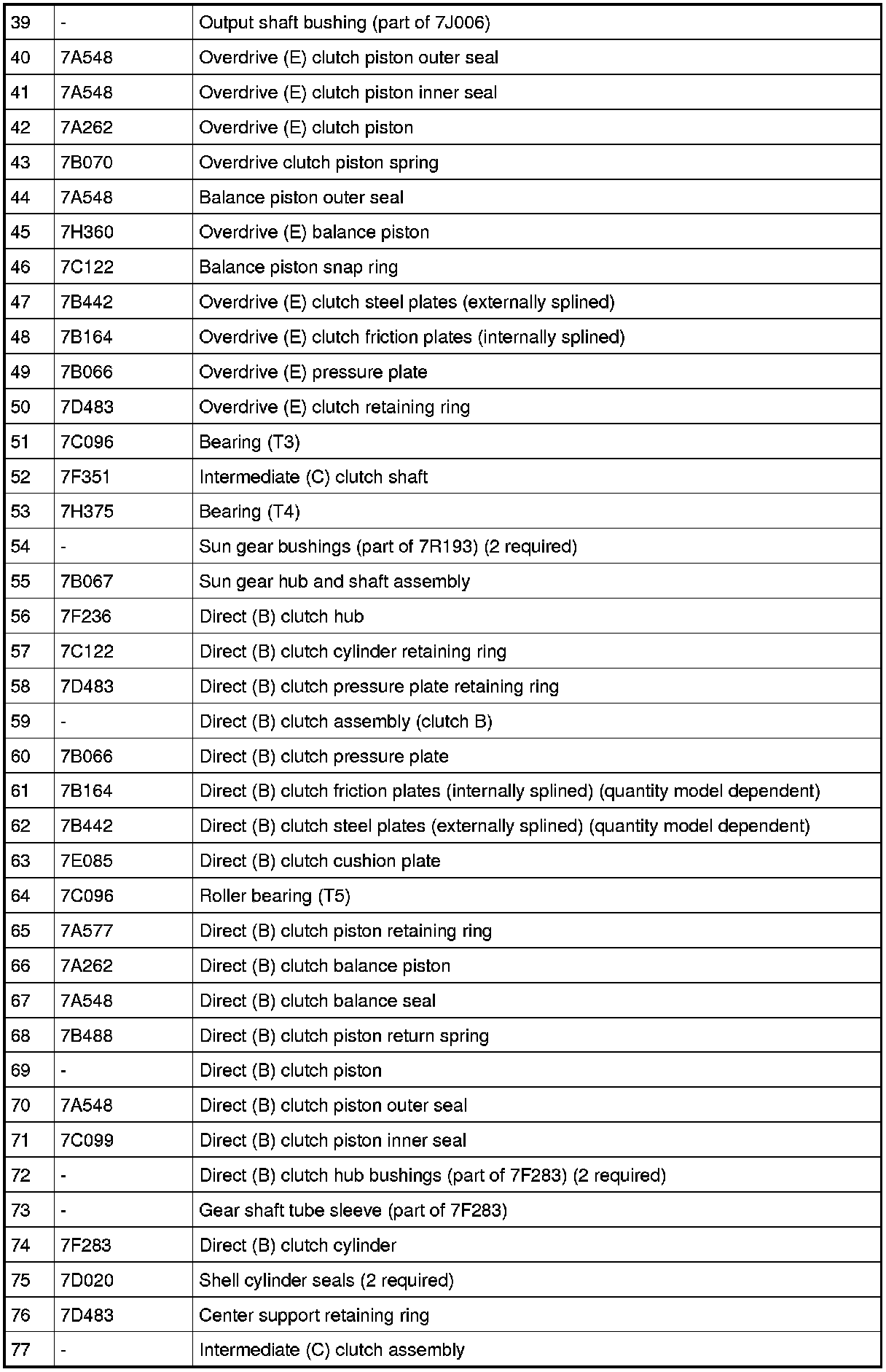

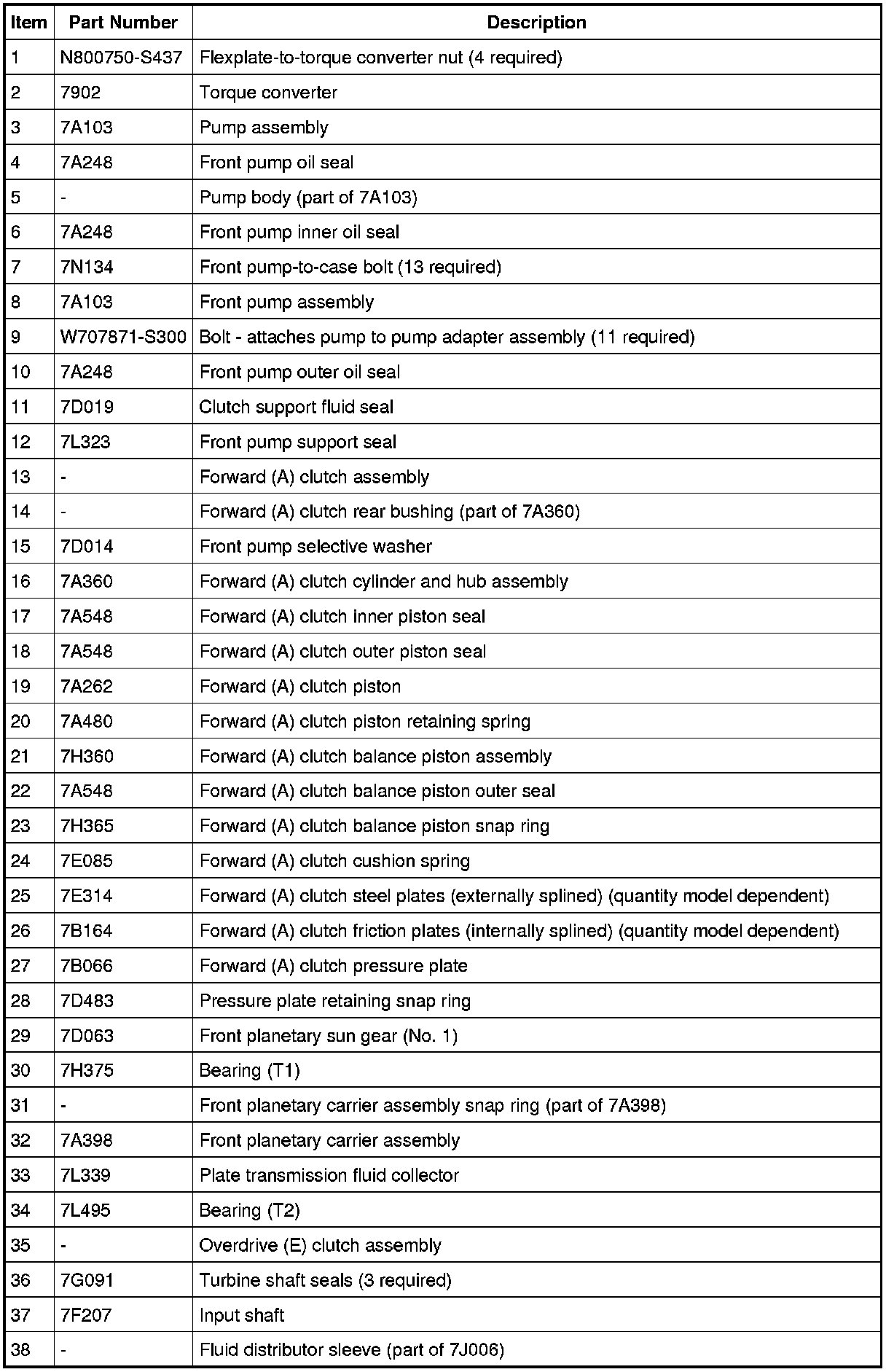

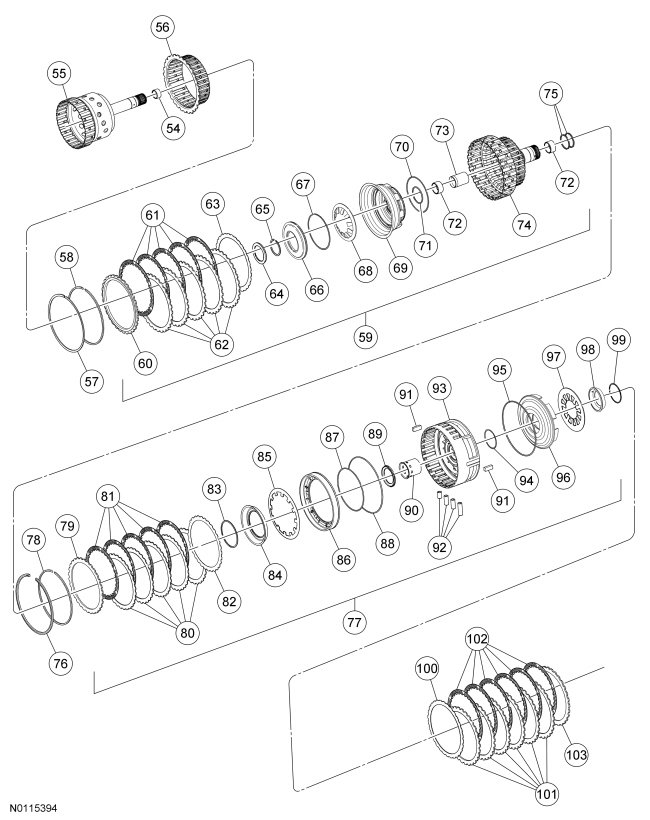

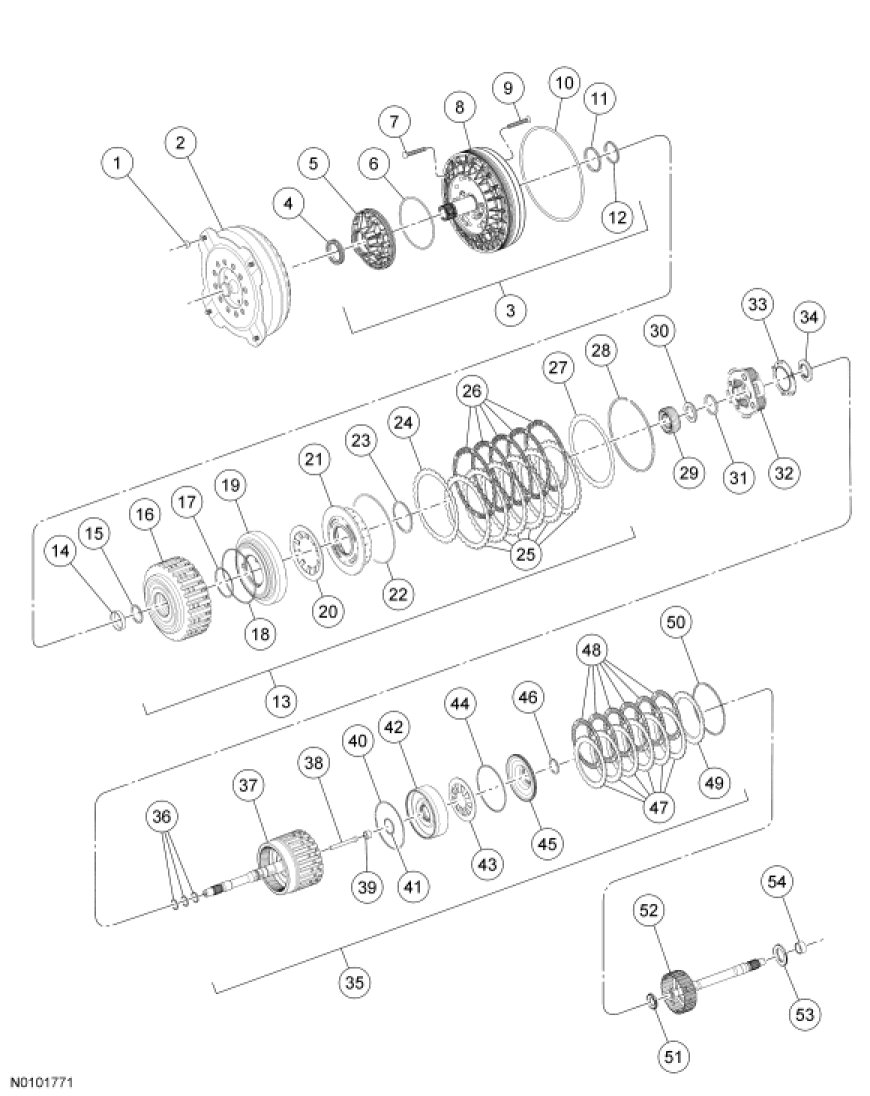

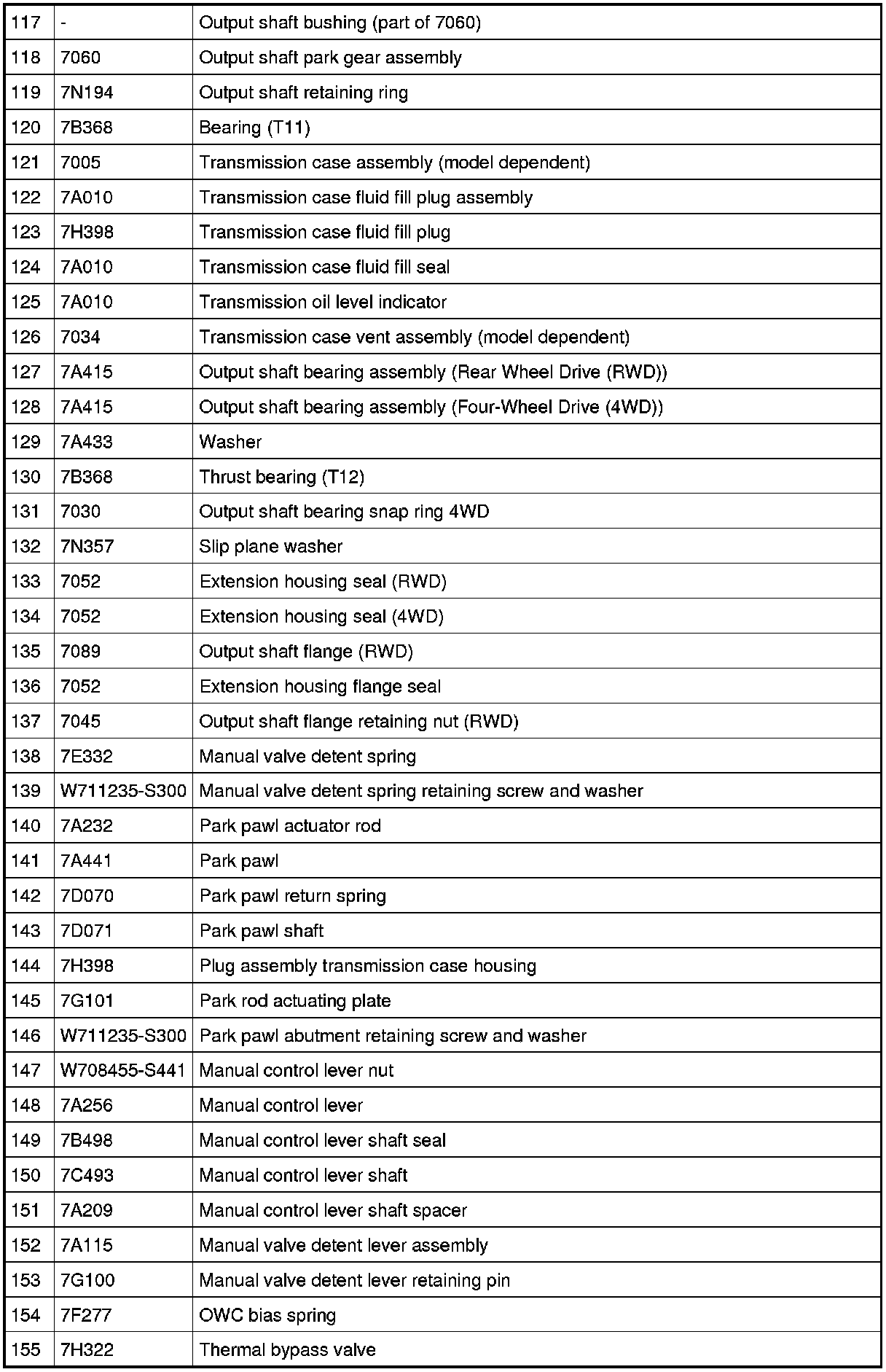

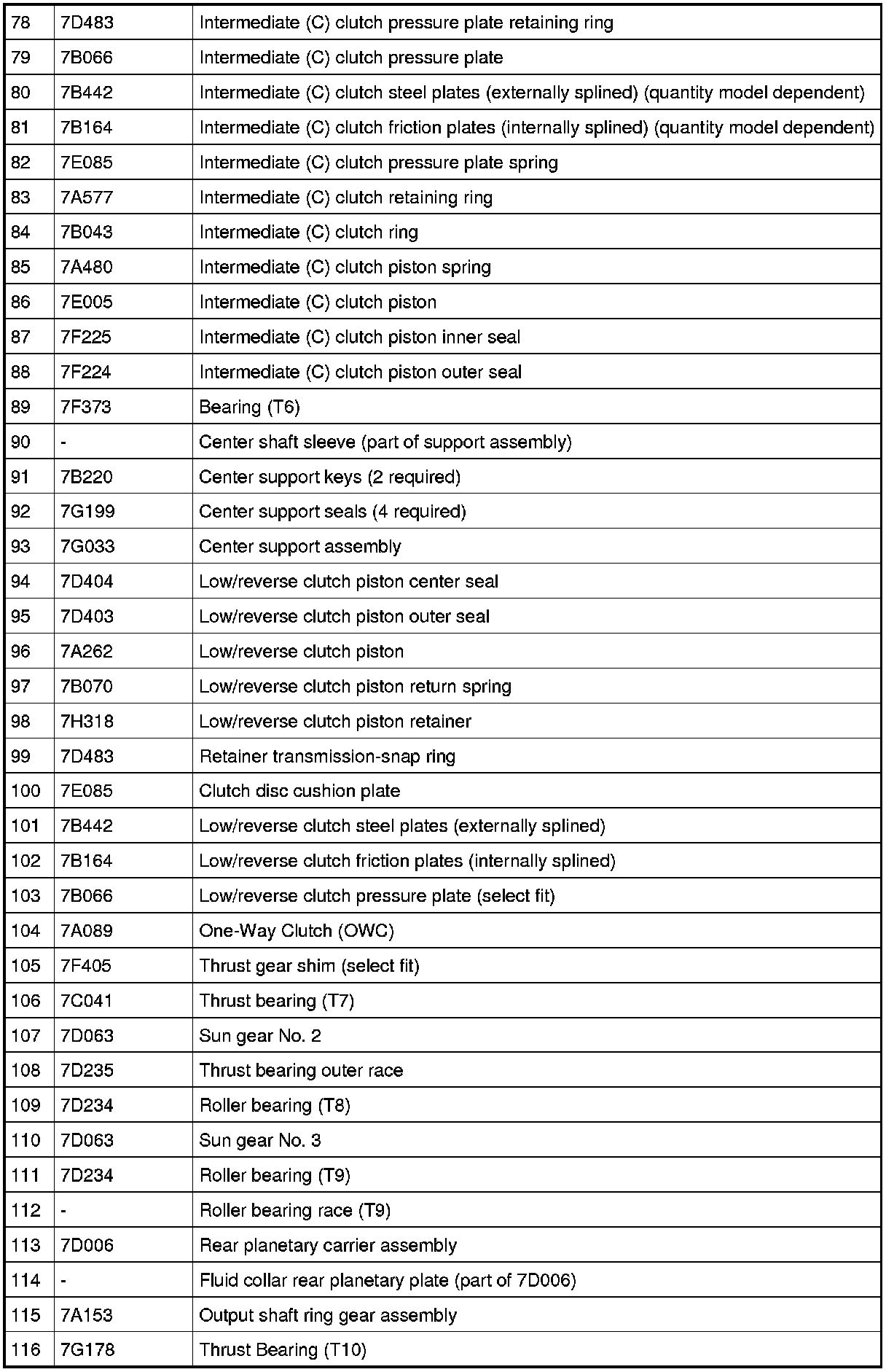

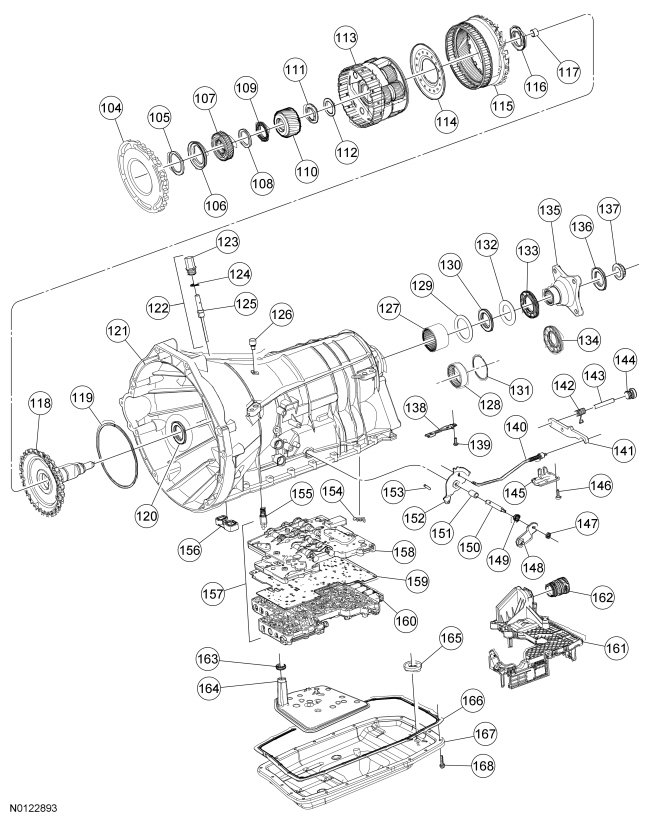

Transmission Disassembled View (Part 1):
