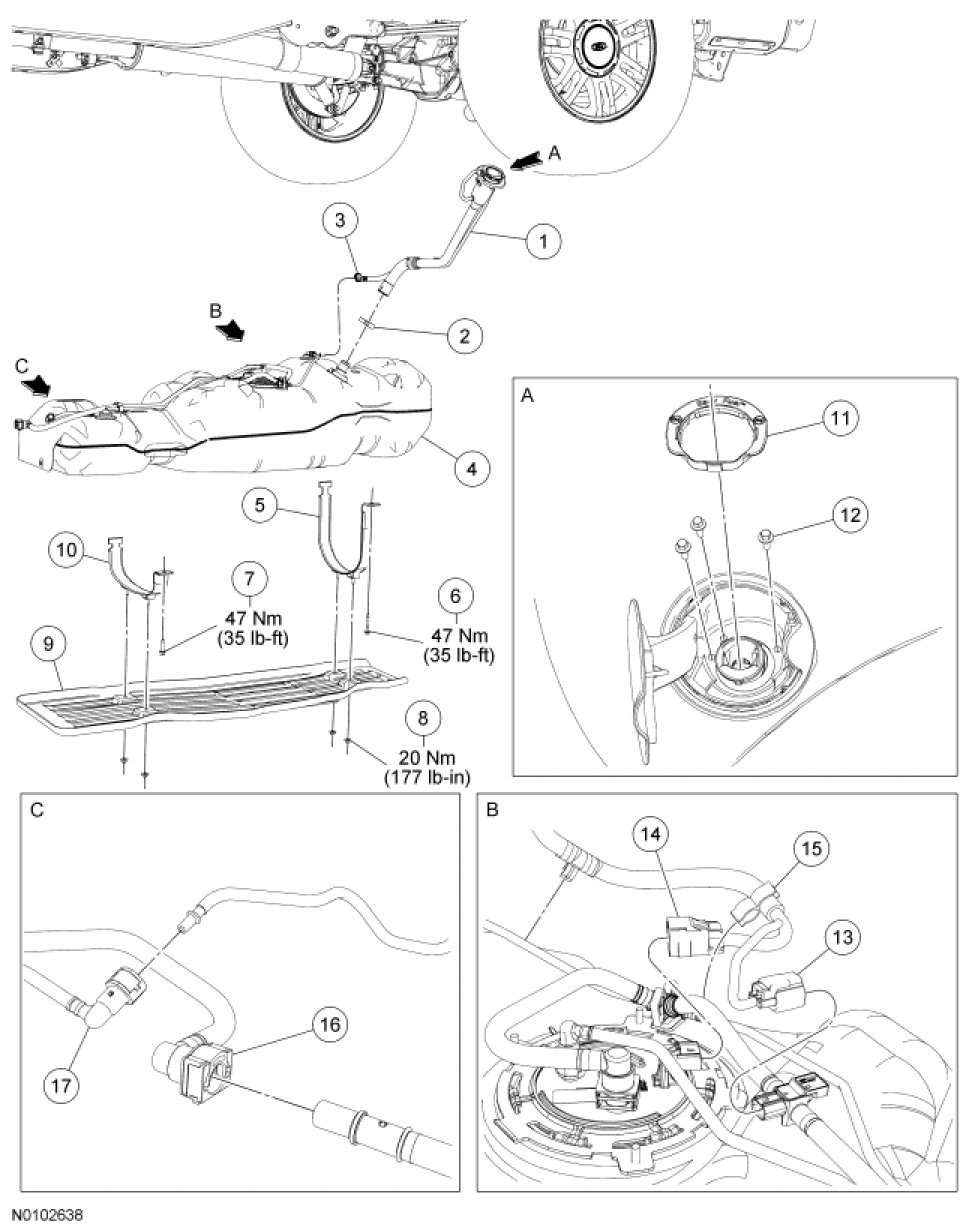

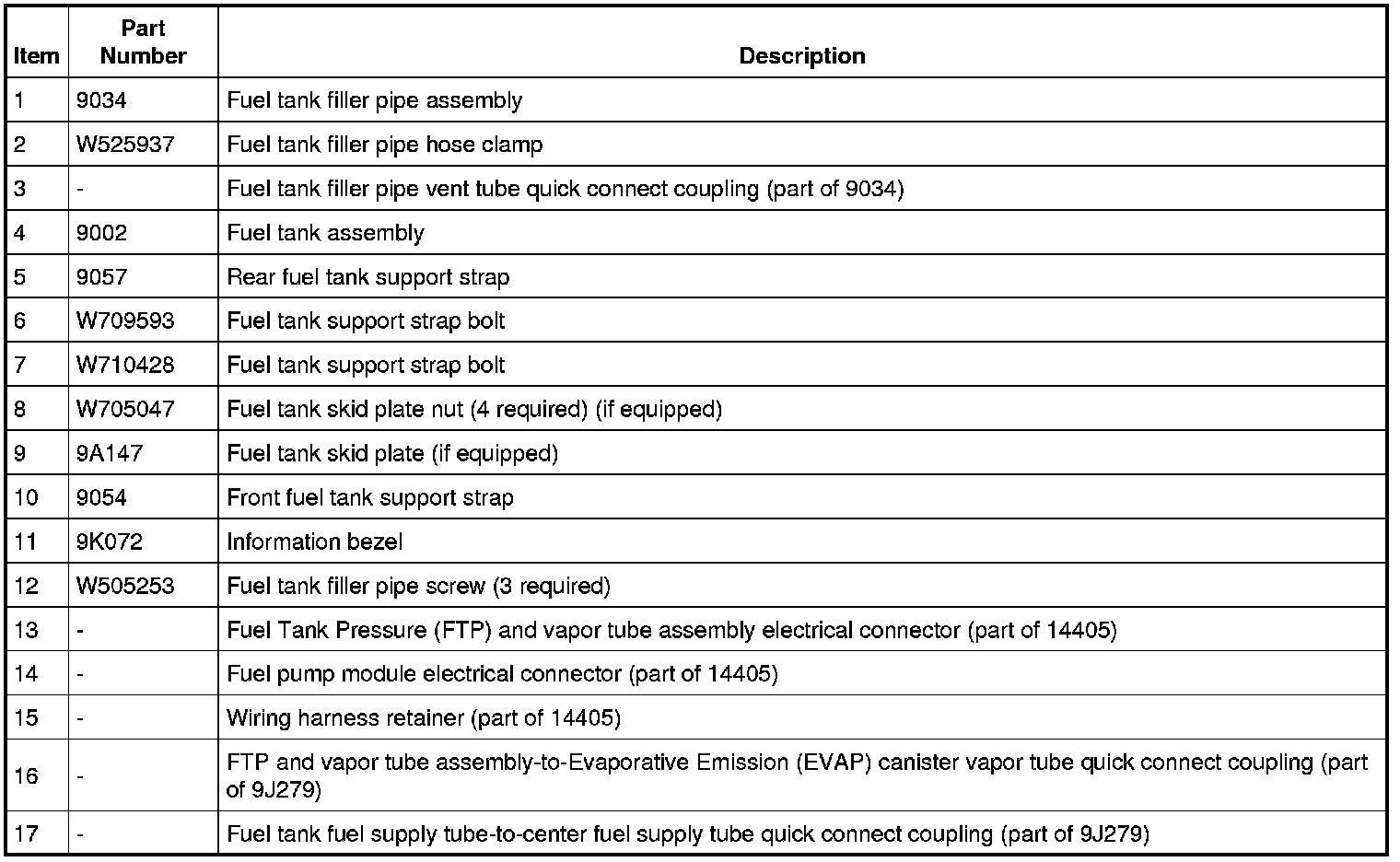

Fuel Tank and Filler Pipe - Exploded View
Fuel Tank and Filler Pipe - Exploded View
Fuel Tank and Filler Pipe - Exploded View
