Antenna Module Connector - C9021
Antenna Module Connector - C9021

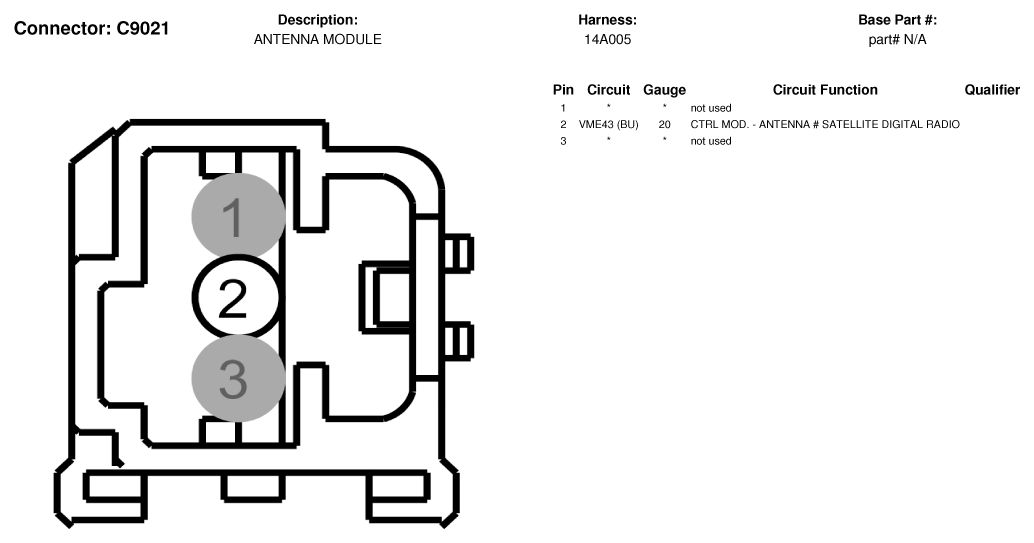

Fig 1: Antenna Module Connector End View (C9021)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
