Trailer Brake Control Module Connector - C2142
Trailer Brake Control Module Connector - C2142

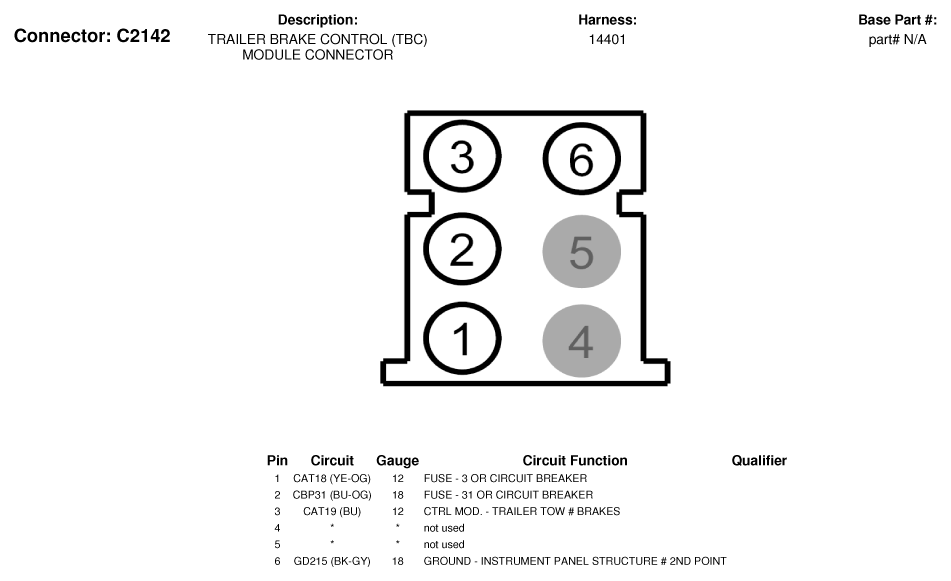

Fig 1: Trailer Brake Control Module Connector Connector End View (C2142)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
