Fuel Tank and Filler Pipe - Exploded View
Fuel Tank and Filler Pipe - Exploded View
Fuel Tank and Filler Pipe - Exploded View

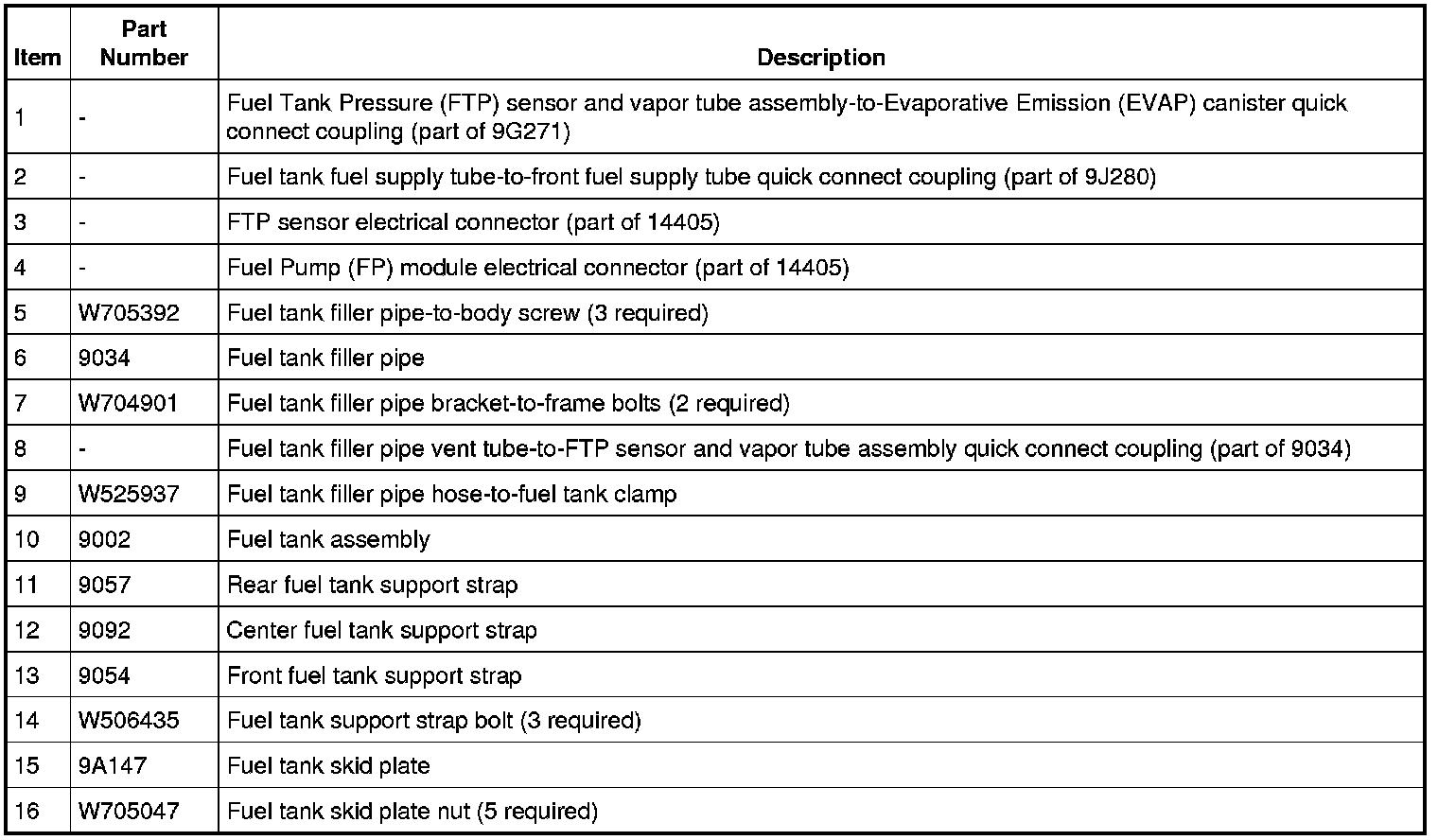

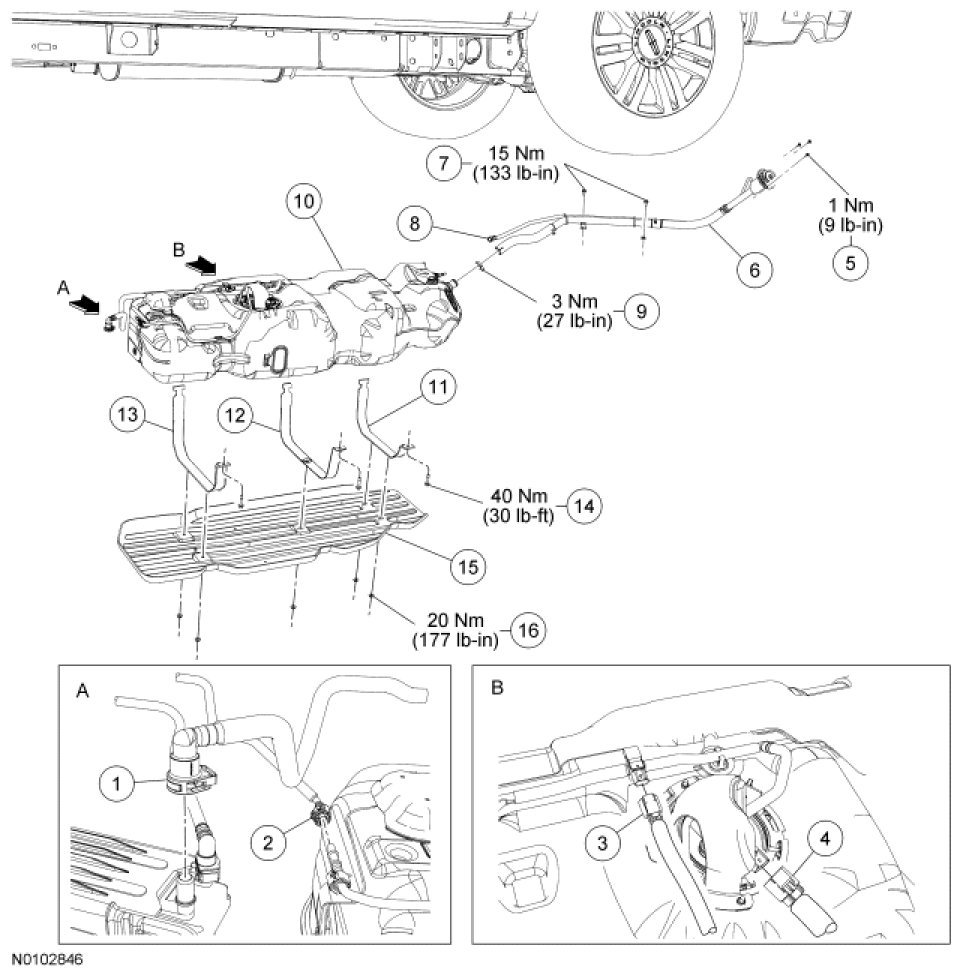

106L (28 Gal) Fuel Tank

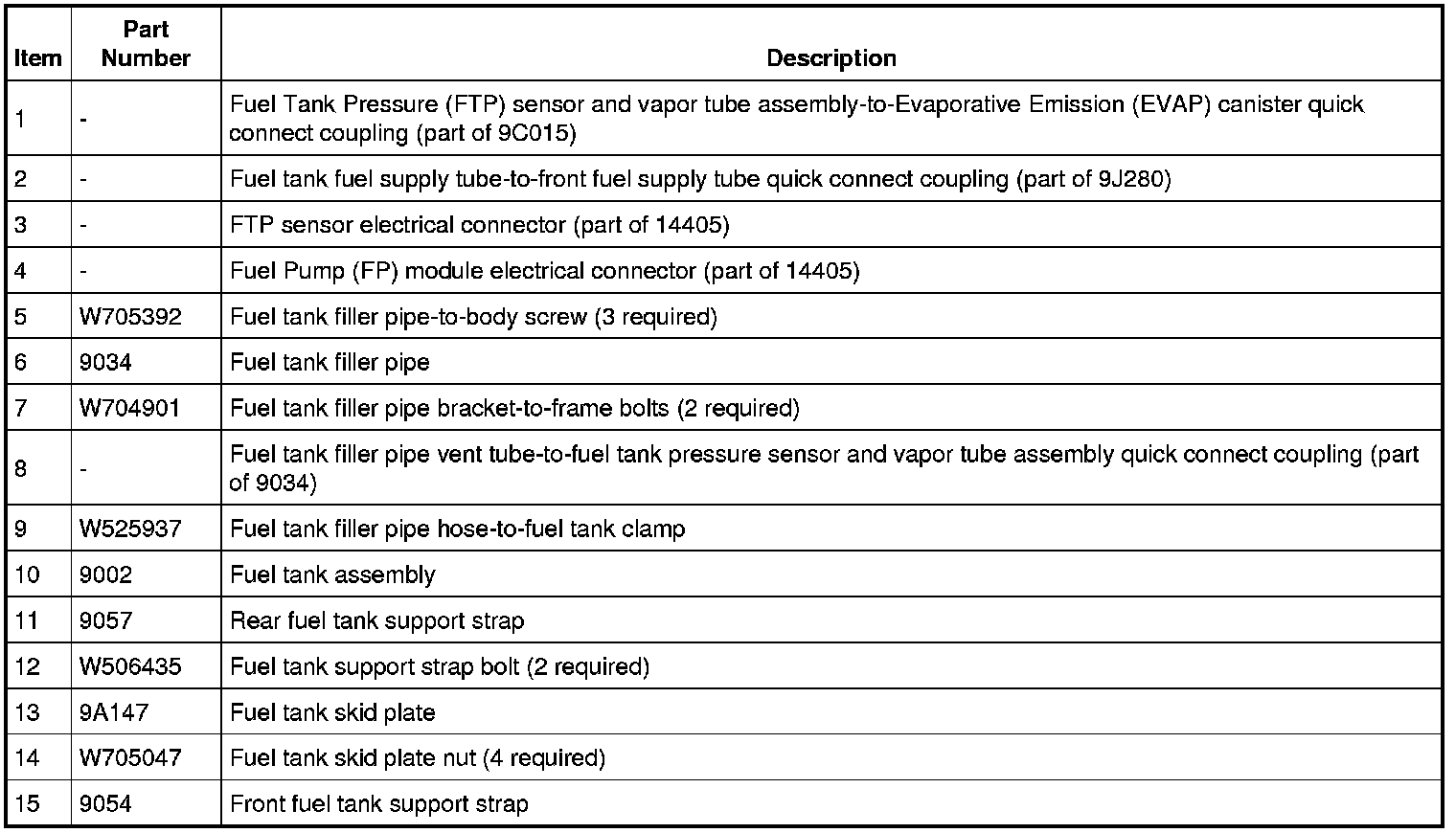

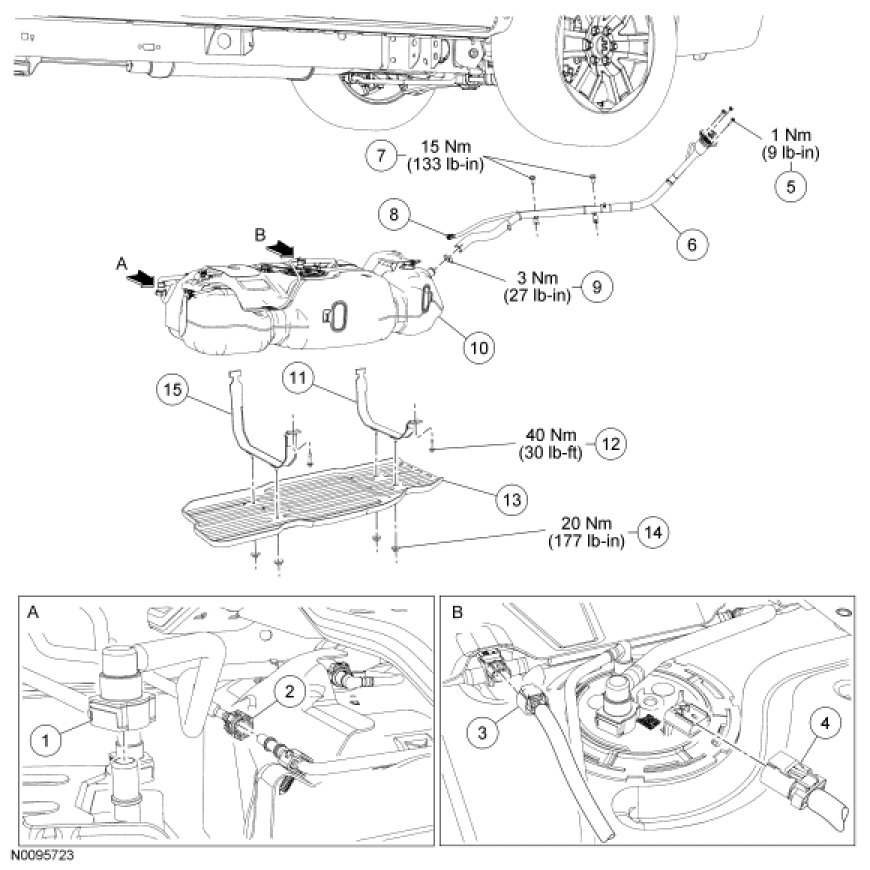

127L (33.5 Gal) Fuel Tank
