Valve Spring Free Length

NOTE: Refer to the ENGINE MECHANICAL - 3.5L or ENGINE MECHANICAL - 3.7L for the specification.
  1. Measure the free length of each valve spring.

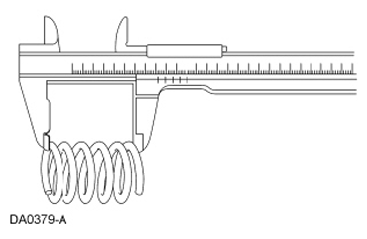

    Fig 1: Measuring Free Length Of Valve Spring
    G07397829Courtesy of FORD MOTOR CO.
